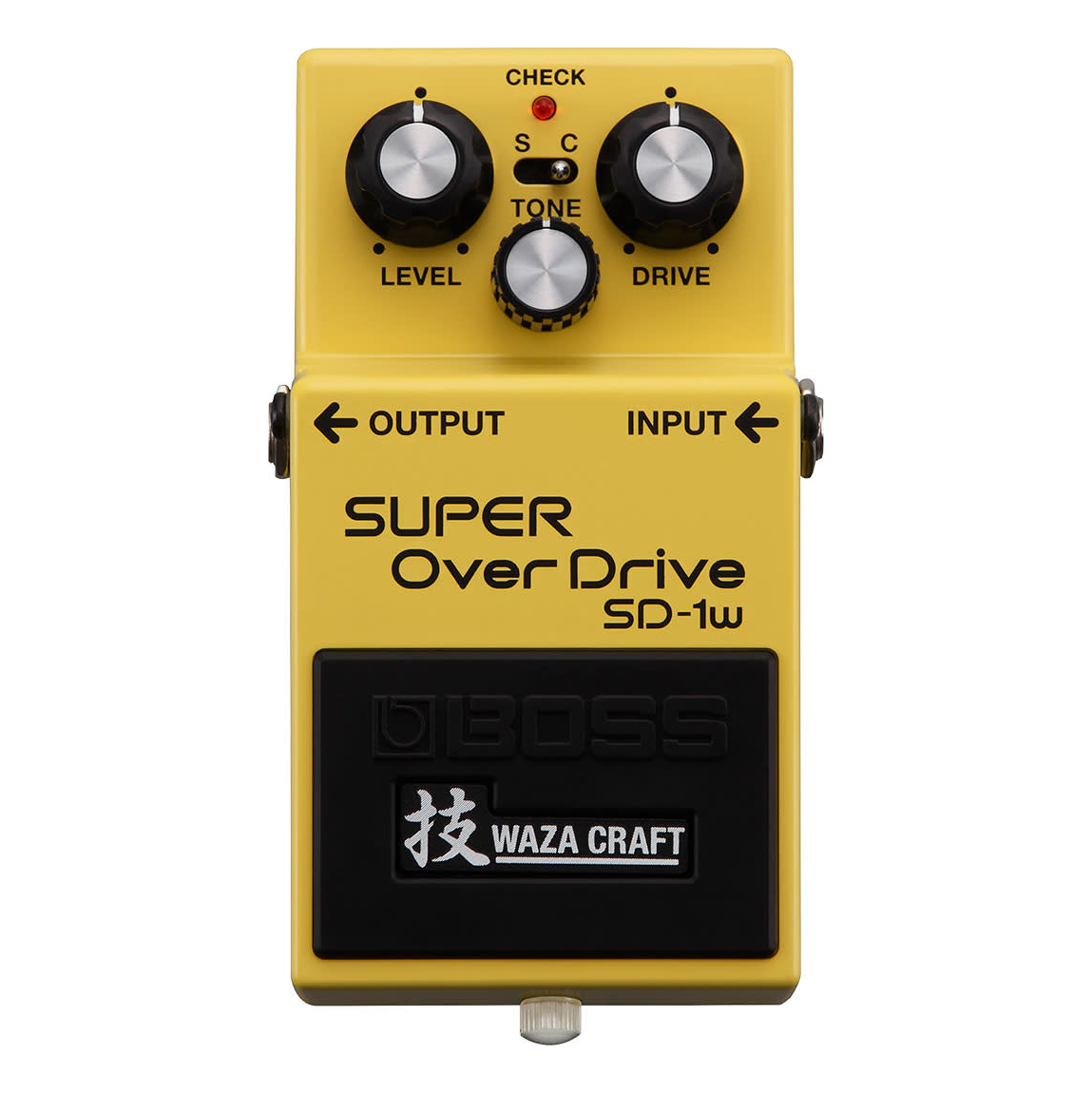

Boss SD-1W Waza Craft Super Overdrive Pedal

Product Description

THE SWEET OVERDRIVE TONE HAS A PRIME REDESIGN

Passionately designed by the master engineers at BOSS in Japan, the Waza Craft SD-1W Super Overdrive delivers a premium stomp experience that fans of customized pedal tone will love. Crafted with an ear for highly refined sound, the SD-1W hot rods the famous BOSS overdrive with all-discrete analog circuitry. Standard mode captures the classic SD-1 sound while Custom mode offers new tonal range and gain.

Features:

• Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
• Premium sound based on the legendary SD-1 Super Overdrive
• Newly revised, all-analog discrete amplifier circuit
• Standard and Custom sound modes
• Highly responsive to picking dynamics and volume changes
• BOSS five-year warranty

Specs:

• Nominal Input Level, -20 dBu
• Input Impedance, 1 M ohm
• Nominal Output Level, -20 dBu
• Output Impedance, 1 k ohm
• Recommended Load Impedance, 10 k ohms or greater
• Controls, Pedal switch / Mode switch / LEVEL knob / TONE knob / DRIVE knob
• Indicator, CHECK indicator (Serves also as battery check indicator)
• Connectors, INPUT jack / OUTPUT jack / DC IN jack
• Power Supply, Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22) / AC adaptor (sold separately)
• Current Draw, 15 mA
• Expected battery life under continuous use, Carbon: Approx. 25 hours / Alkaline: Approx. 42 hours
• Accessories, Owner's Manual / Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information") / Carbon-zinc battery (9 V, 6F22)

SIZE AND WEIGHT

• Width, 73 mm / 2-7/8 inches
• Depth, 129 mm / 5-1/8 inches
• Height, 59 mm / 2-3/8 inches
• Weight, 430 g / 1 lbs
