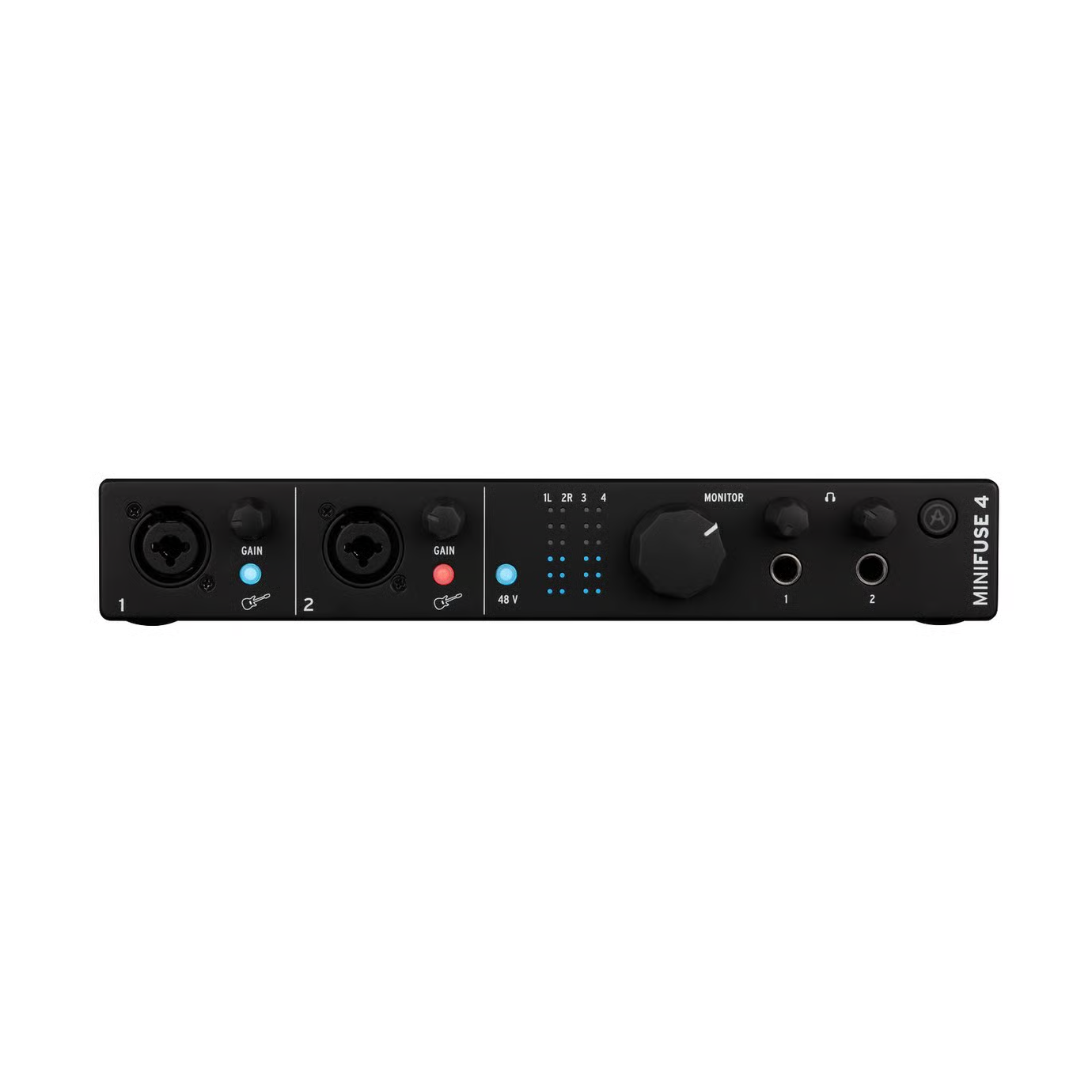

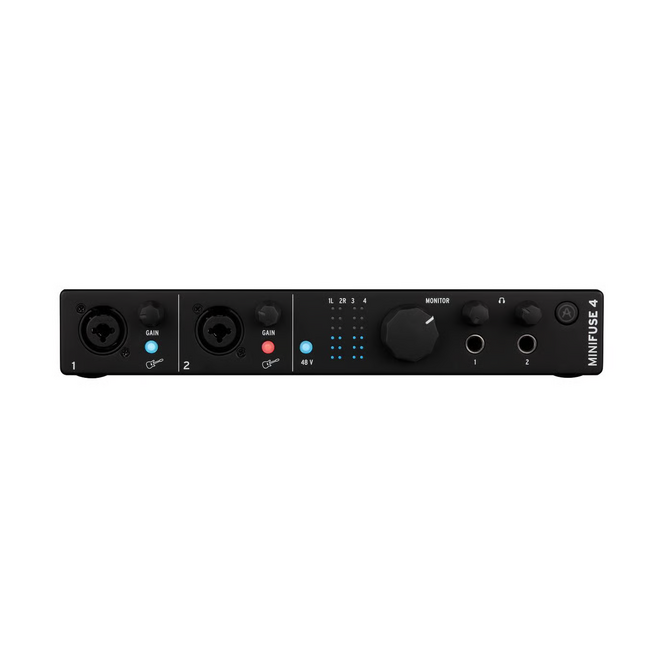

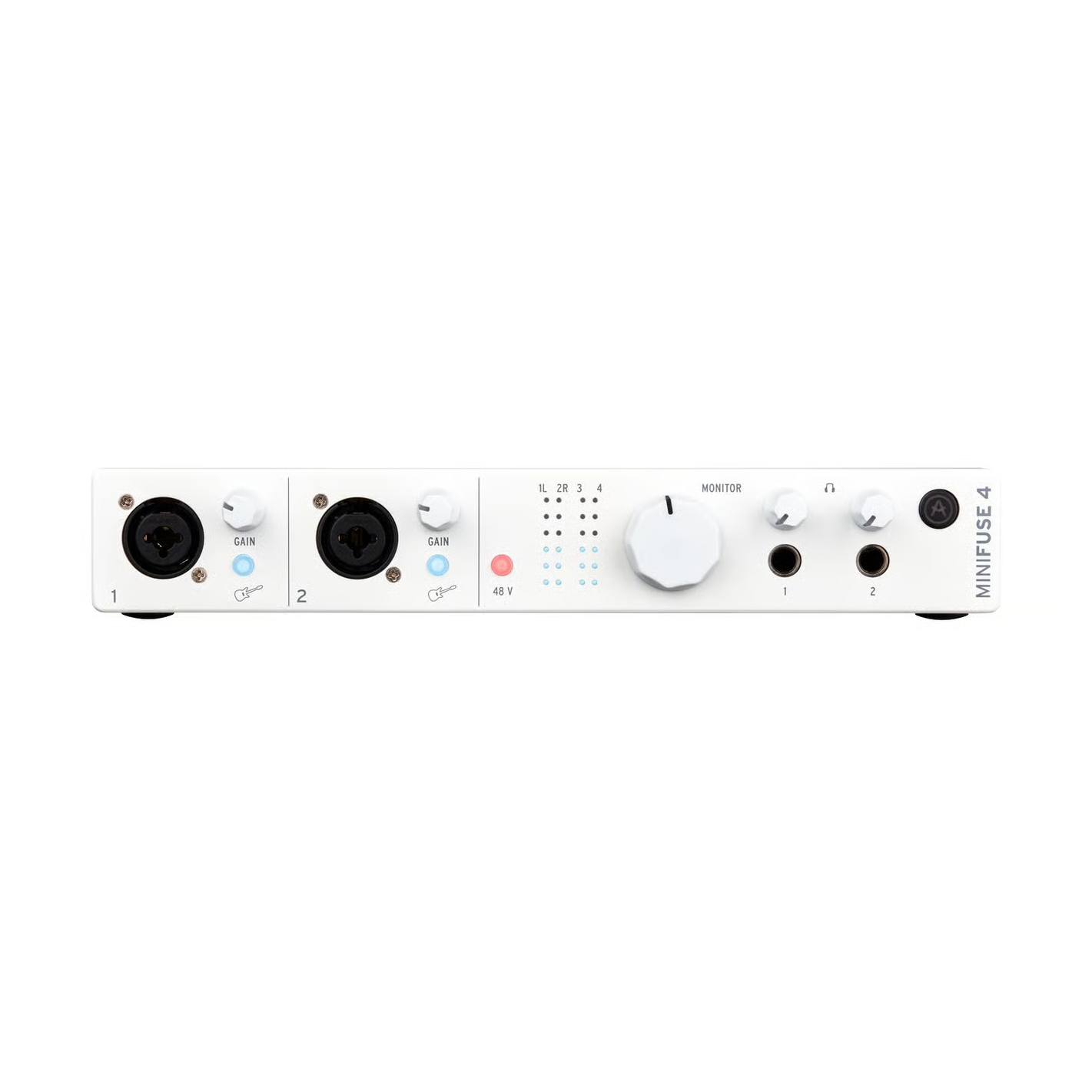

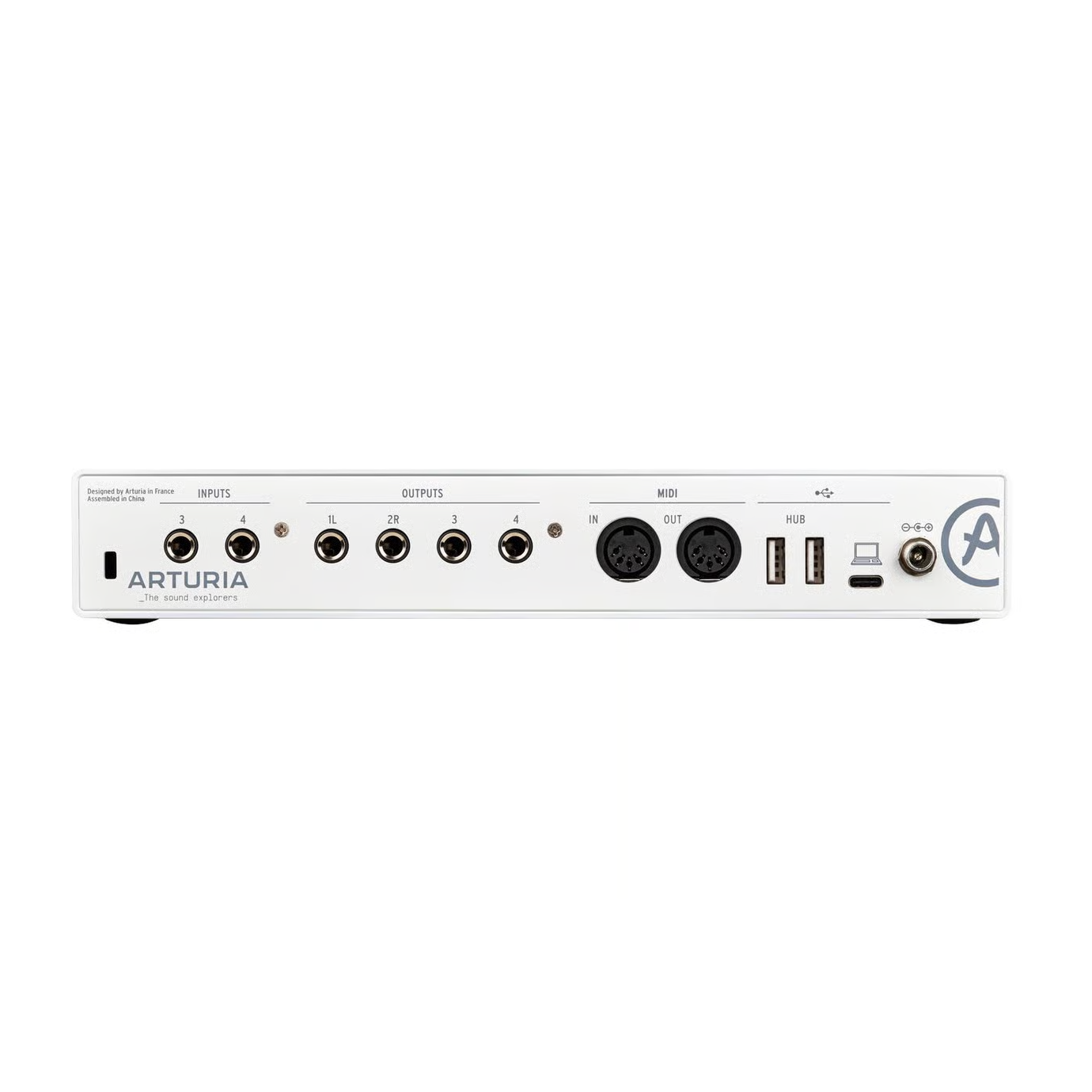

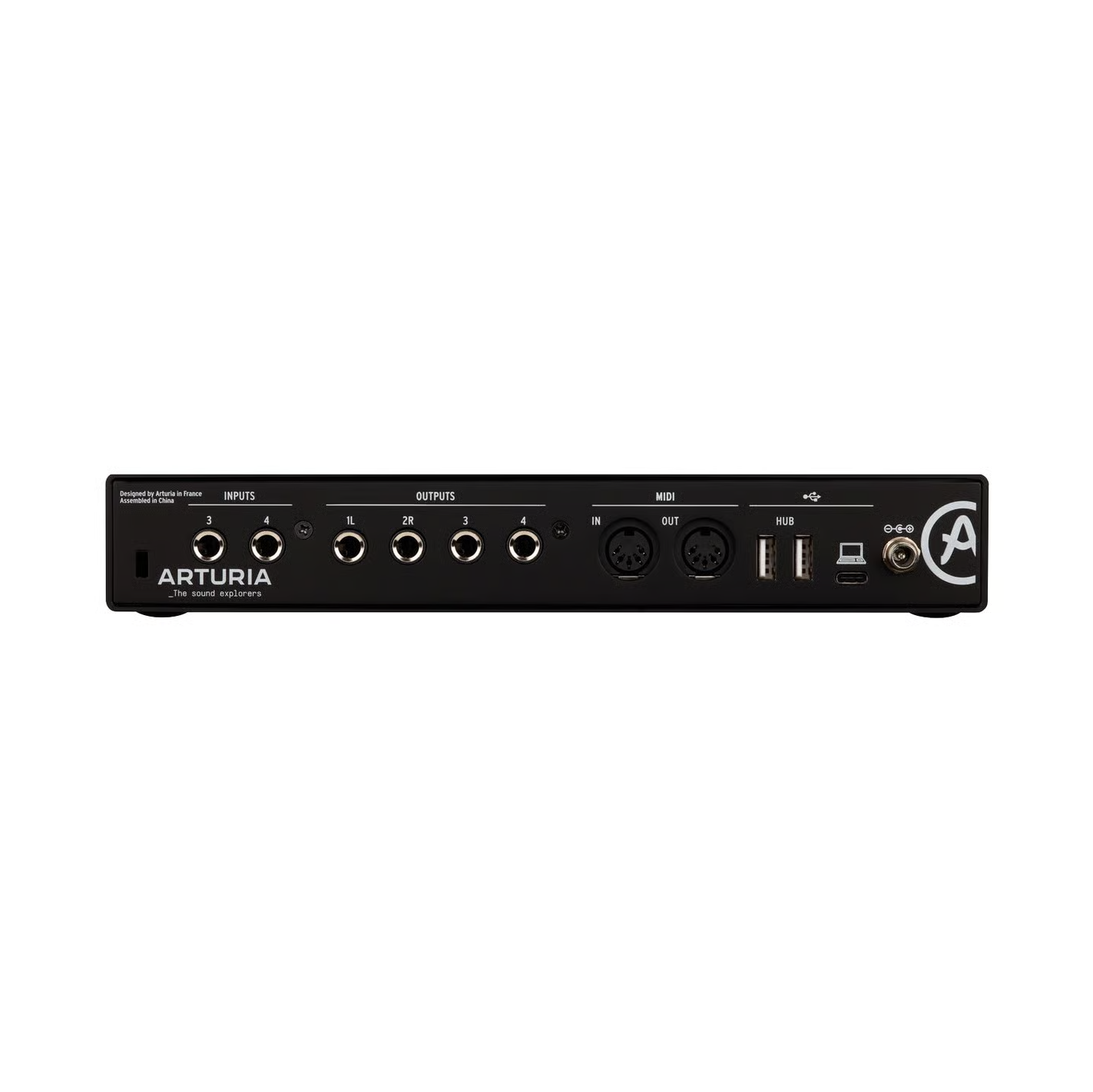

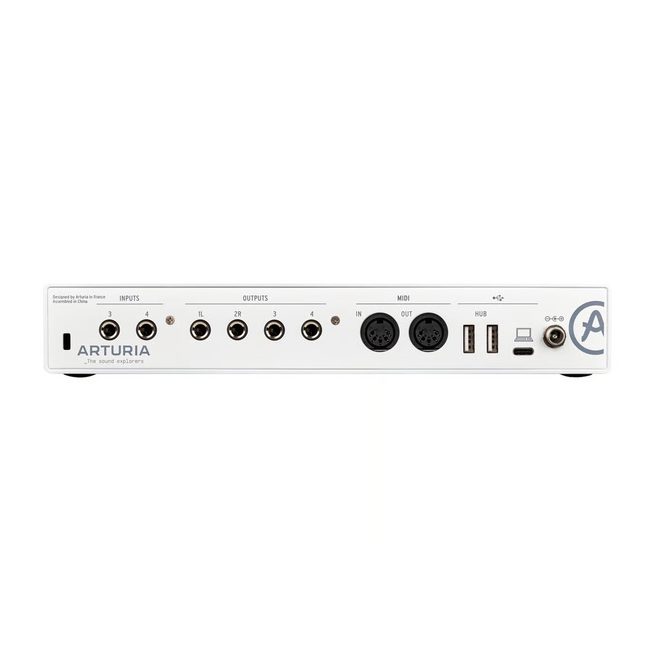

MiniFuse 4 is a next-gen 4in/4out audio & MIDI interface designed to transform your ideas into your art. Capture crystal-clear recordings, refine with pro-grade creative software, and get your sound out there. For bands, producers, performers, podcasters, and everyone in between; enjoy best-in-class sound quality, an innovative feature set, and the best software included as standard. MiniFuse 4 ticks all the boxes - what's stopping you?
MiniFuse 4's connections, features, and unique innovations are designed to make your creative life easier. Expertly engineered to tick every box for whatever sound you want to make, this is one interface you can count on in every situation.
Features
- Compact size
- Single input allows XLR or 1/4" jack
- 110 dB dynamic range
- Rich dynamics
- Clear noise-free signal
- Studio-grade quality
Specifications
Line Inputs
- Input impedance: 16kΩ
- Maximum input level: +22dBu
- Gain range: 56dB
- Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)
- Dynamic range: 110dB typical (A-weighted)
- THD+N @ 1kHz: -100dB typical (un-weighted)
- Instrument Input
- Input impedance: 1MΩ on Tip
- Maximum input level: +11.5dBu
- Gain range: 56dB
- Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
- Dynamic range: 110dB typical (A-weighted)
- THD+N @ 1kHz: -91dB typical (un-weighted)
Microphone Preamps
- Input impedance: 2.5kΩ
- Maximum input level: +9dBu
- Gain range: 56dB
- Equivalent Input Noise (EIN): -129dB typical (A-weighted)
- Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
- Dynamic range: 110dB typical (A-weighted)
- THD+N @ 1kHz: -100dB typical (un-weighted)
Speakers
- Output impedance: 94Ω
- Maximum output level: +12dBu
- Frequency response 20-20kHz: +/-0.09dB
- Dynamic range: 107.5dB typical (A-weighted)
- THD+N @ 1kHz: -101dB typical (un-weighted)
Phones
- Output impedance: 10Ω
- Maximum output level: +11.4dBu
- Frequency response 20-20kHz: +/-0.09dB
- Dynamic range: 104dB typical (A-weighted)
- Power @ 33ohm: 137mW
Supported Sample rates
- 44.1kHz, 48kHz, 88.2 kHz, 96kHz, 176.4kHz, 192 kHz
Software Included
- Ableton Live Lite
- Analog Lab Intro
- Arturia FX
- Native Instruments GUITAR RIG 6 LE
- Auto-Tune Unlimited
- Splice Creator Plan
System Requirements
Windows
- Windows 8.1 or later (64-bit)
- 4 GB RAM (8 GB+ recommended)
- 64-bit Intel® Core™ or AMD multi-core processor (i5 processor or faster recommended)
Apple
- OS X 10.13 or later (64 bit)
- 4 GB RAM (8 GB+ recommended)
- 64-bit Intel® Core™ or AMD multi-core processor (i5 processor or faster recommended)
