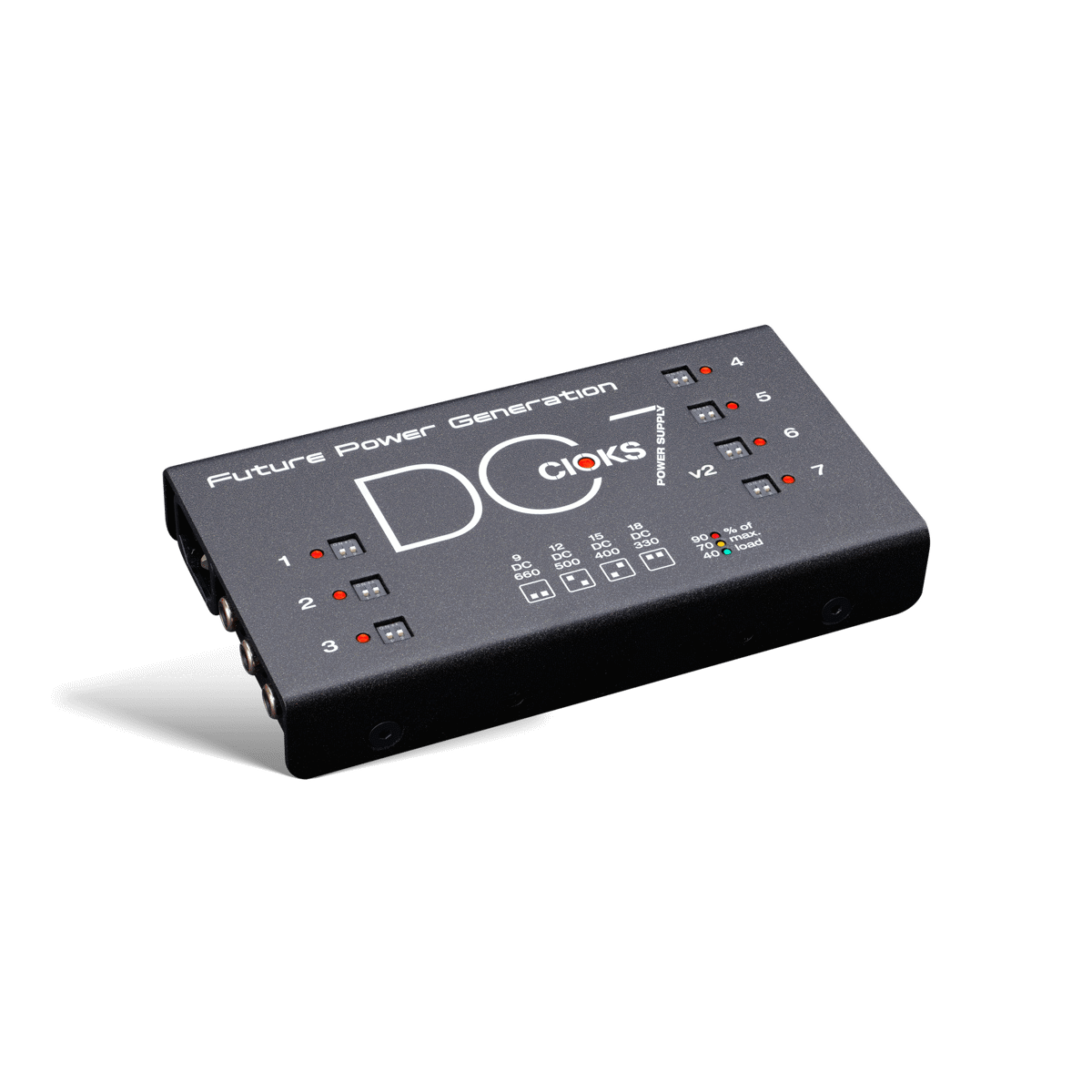

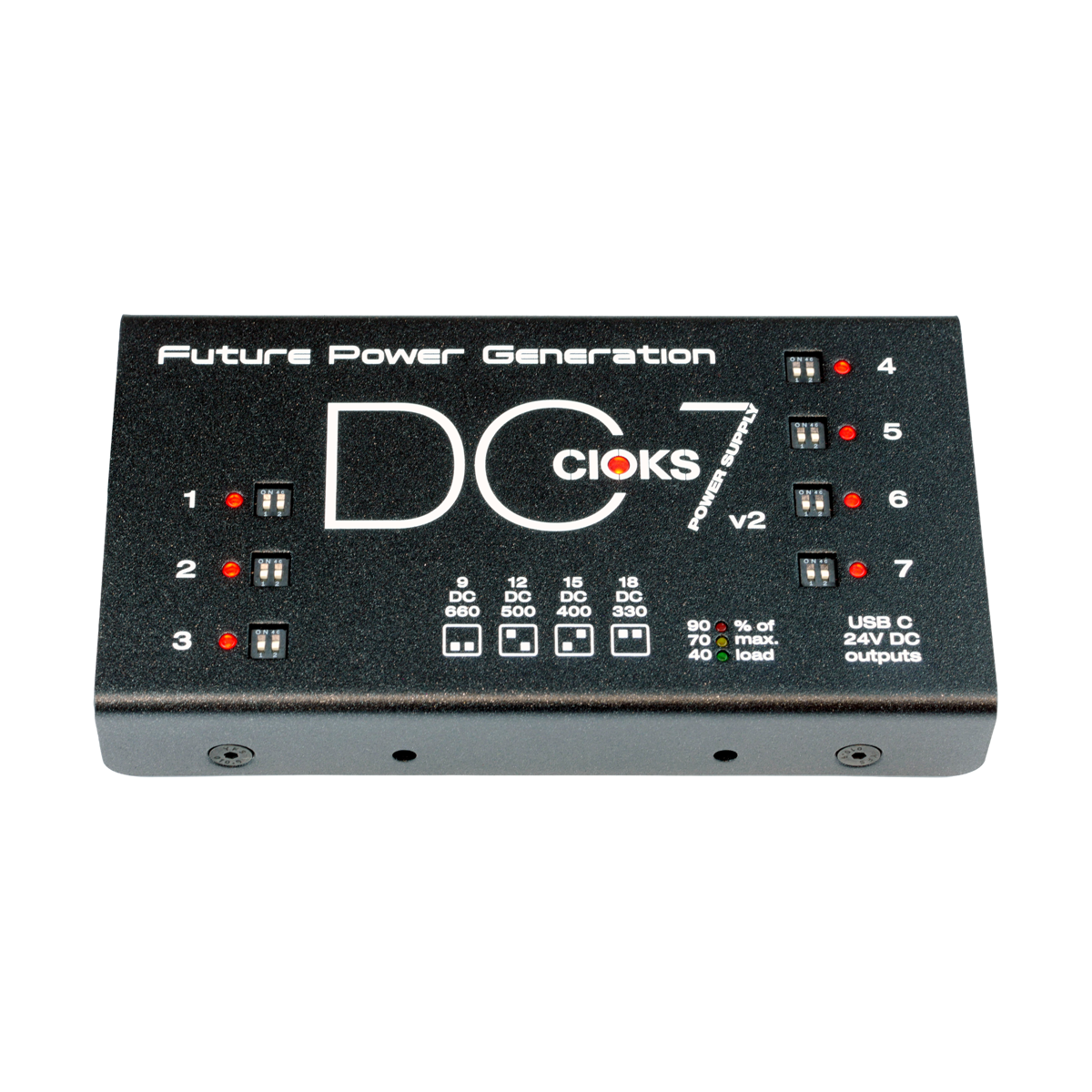

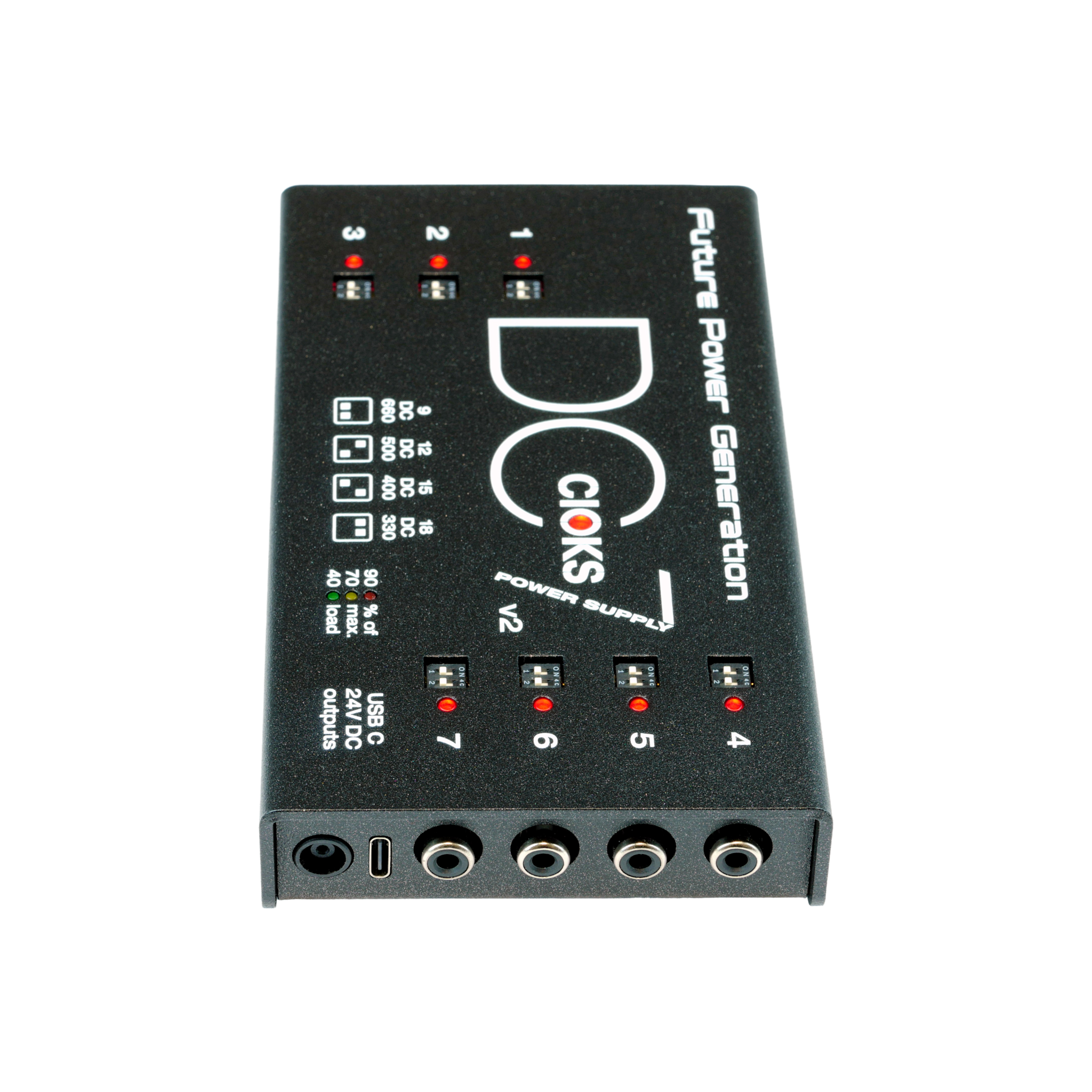

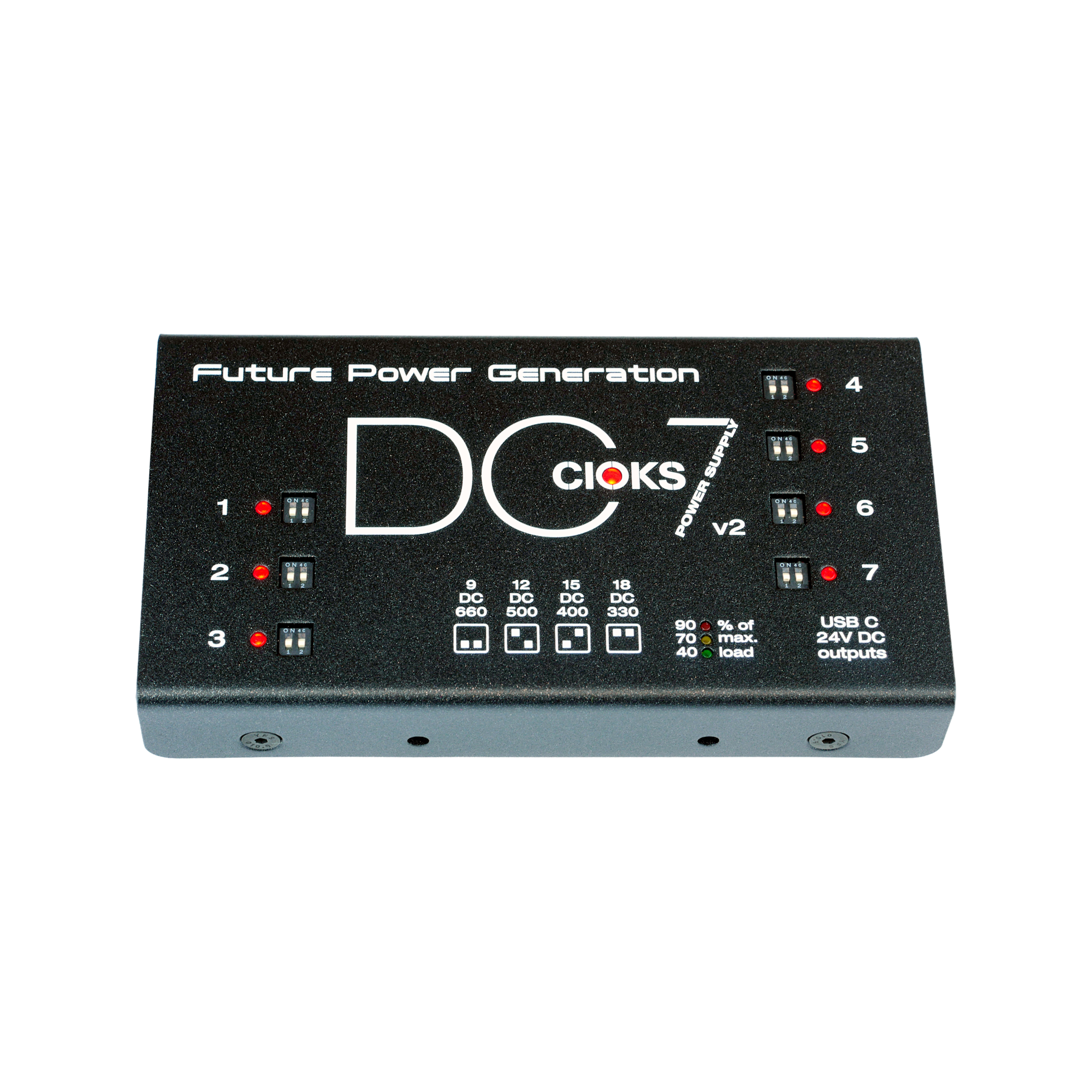

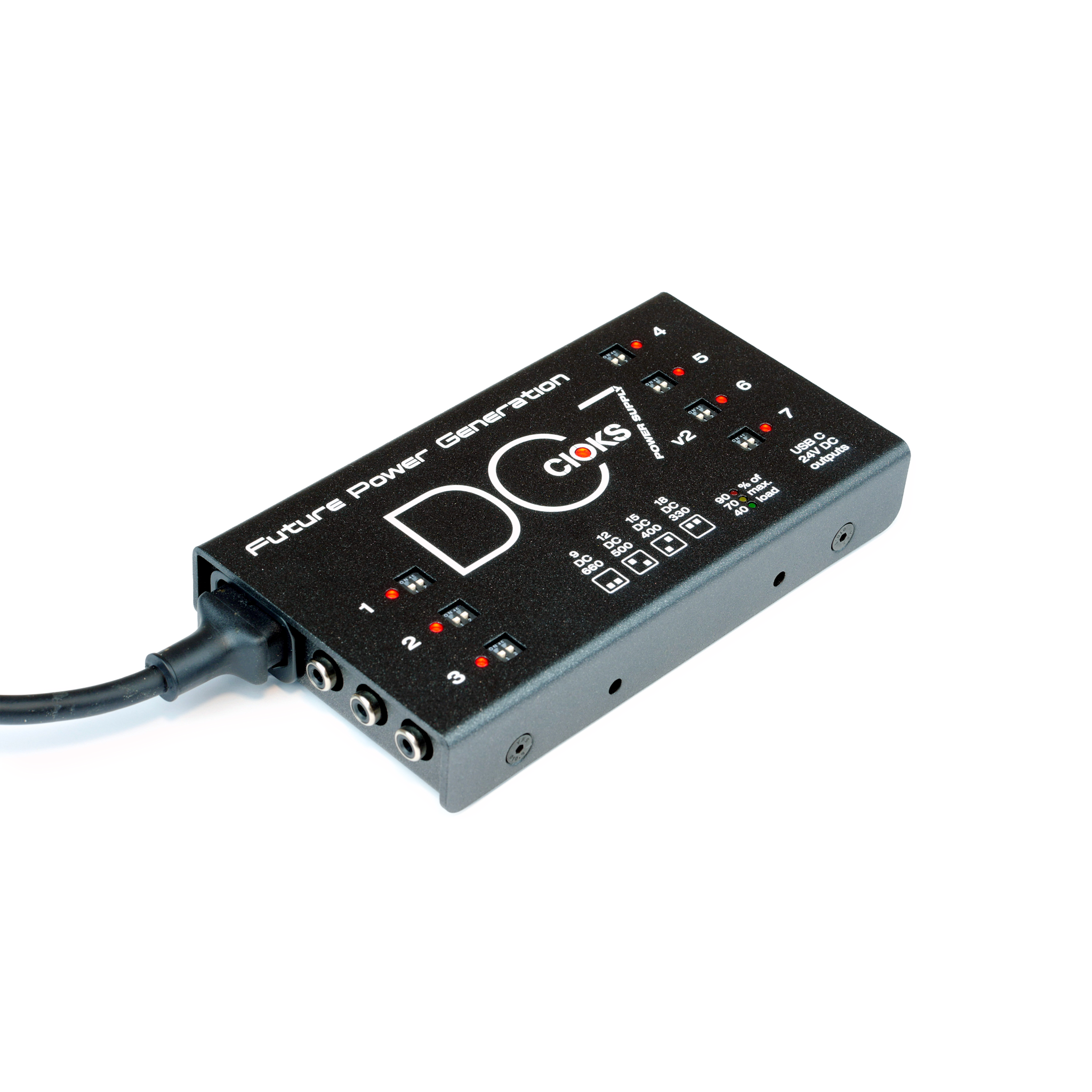

CIOKS DC7 v2 Pedal Power Supply

The groundbreaking DC7 v2 has a one-inch (25,4mm) profile and weighs 1.1 pound (500 grams) thanks to the pure 2-stage switch-mode technology inside. The profile may be low but the power ratings are certainly not – the DC7 v2 puts out a maximum of 48W and allows the user to connect multiple high-current effects such as devices from Effectrode, Line 6 and Neural DSP without noise of any kind.

With a one-inch (25.4 mm) profile and a weight of just 1.1 lb (500 g), DC7 v2 uses advanced two-stage switch-mode technology to deliver up to 48W across 9 outlets. The DC7 v2 features 7 isolated DC outlets, each with four selectable voltages and up to 6W with 660 mA at 9V per outlet and a 24V auxiliary output.

This means DC7 v2 can easily power multiple high-current pedals and devices such as the Line6 HX series and the Neural DSP Quad Cortex product range without problems or noise of any kind.

DC7 v2 can be expanded with CIOKS 4, CIOKS 8 and Crux (plus other compatible 24V-powered units) for even more isolated outputs and flexibility. Paired with the updated CIOKS Flex cables, it remains the most versatile, reliable and noise-free pedalboard power solution available.

Features

• Groundbreaking 1-inch profile (25,4mm)
• 2-stage switch-mode power supply topology
• Ultra-low noise achieved by multistage filtering
• 7 isolated DC-outlets, 6W each
• 660mA at 9V DC on each outlet
• 4 selectable voltages on each outlet
• 5V USB outlet with max. 3A
• 24V DC auxiliary outlet with max. 2A
• Individual power limit LED on all outputs
• Built-in true power meter showing the total load
• Global overload status LED
• Universal mains input voltage 90 to 265V AC
• Total maximum output power 48W
• Mounting hardware for Pedaltrain and Templeaudio boards included
• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards*
• 12 Flex cables included
• Expandable with CIOKS 4*, CIOKS 8* and Crux*
• Weighs 1.1 lbs. (500 grams)
• Designed in Denmark, assembled in Poland

5-year worldwide warranty

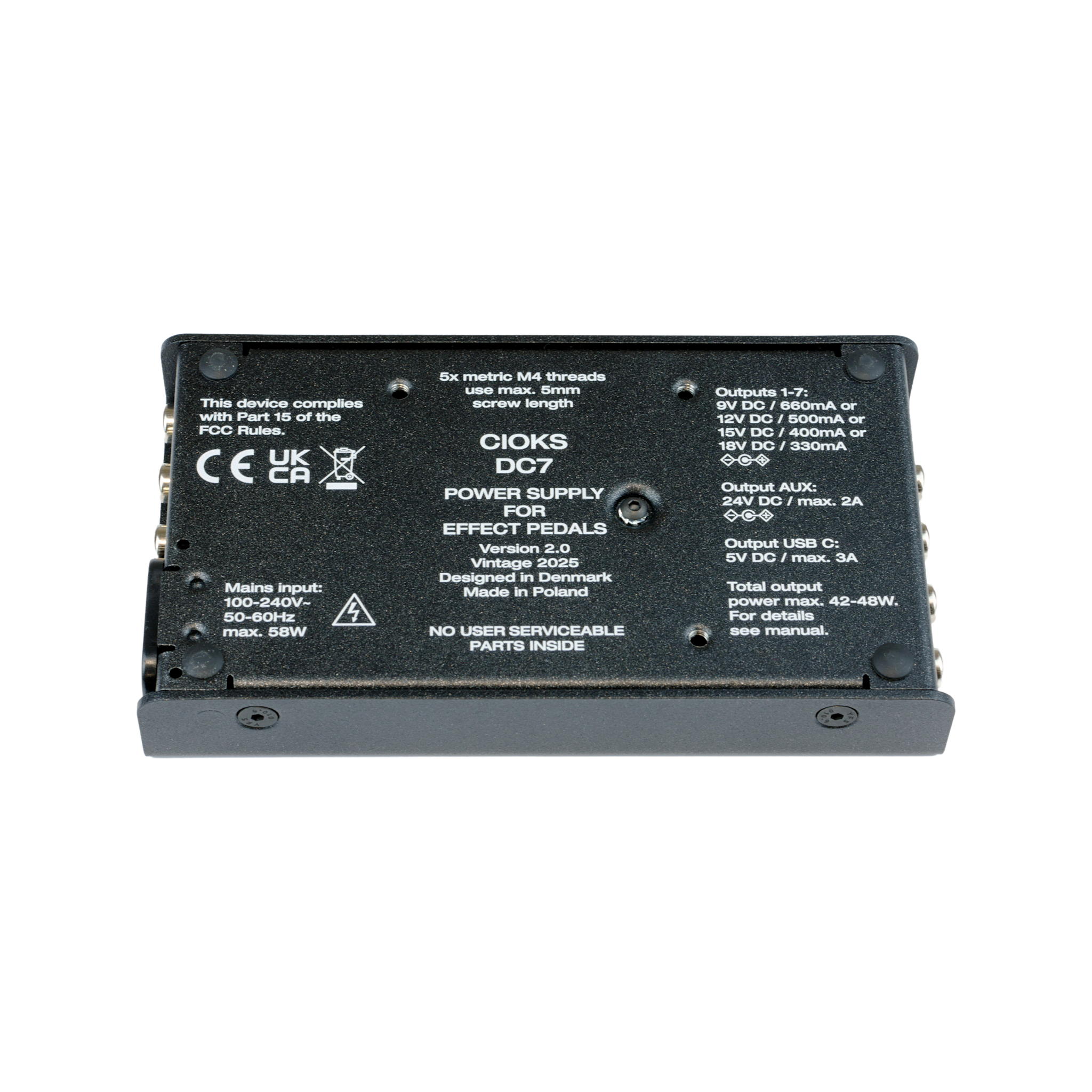

Specifications

• Mains input: 90-265V AC universal
• Outlet 1-7: 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each
• USB outlet: 5V DC, max 3A
• AUX outlet: 24V DC, max 2A
• Total maximum output power: 48W
• Size: 160 x 88 x 25,4mm excl. rubber feet
• Weight: 500g / 1.1lbs

What's in the box

• CIOKS DC7 v2 power supply
• Mains power cord
• Standard Flex type 1 – black with 5,5/2,1mm centre negative DC plug x7
• Standard Flex type 2 – red with 5,5/2,1mm centre positive DC plug x1
• Standard Flex type 4 – green with 5,5/2,5mm centre positive DC plug x1
• Standard Flex type 5 – black with tip positive 3,5mm Jack plug x1
• Split Flex type 1 – powers two pedals of a single outlet x1
• 3-way Daisy chain Flex type 1 – powers three pedals of a single outlet x1
• Mounting hardware: 2 screws and a hex-key
• Manual
• Product sheet (drill guide)
• CIOKS sticker sheet
• Flex guide
