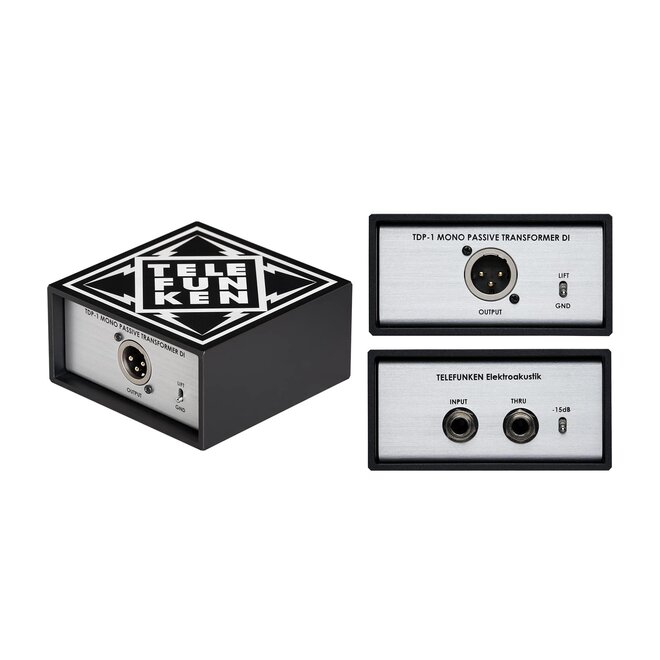

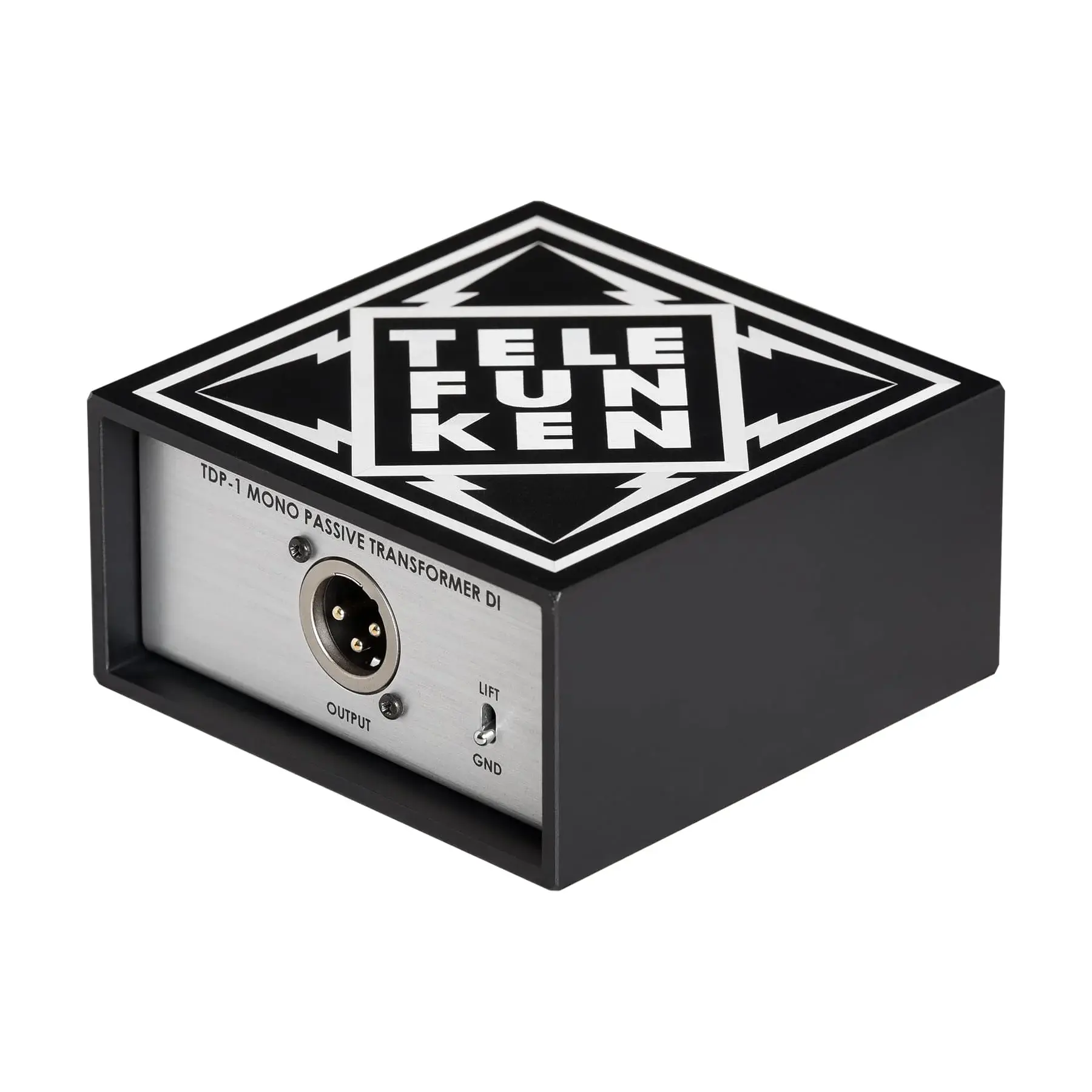

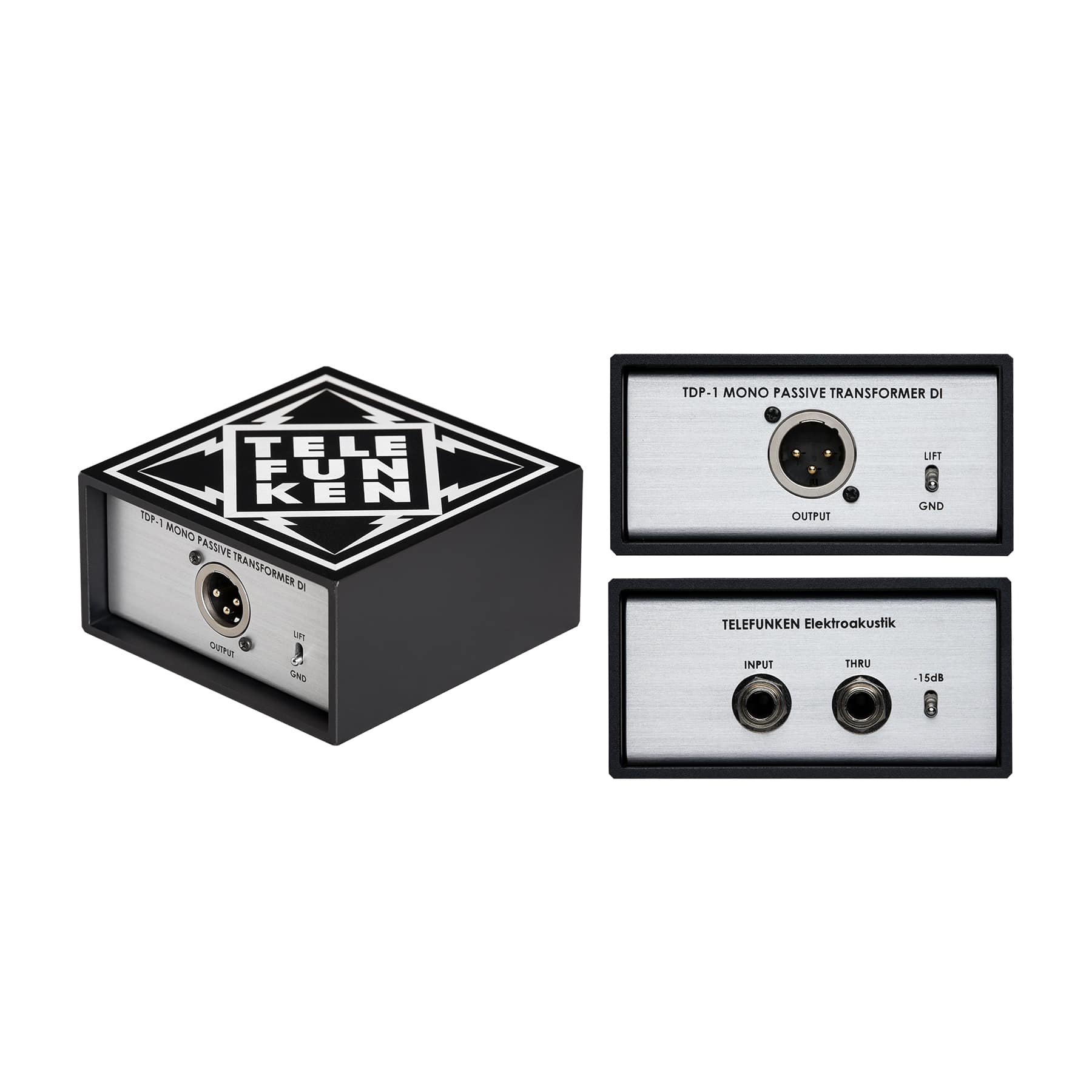

Telefunken TDP-1 Mono Passive Direct Box

Product Description

The single-channel TDP-1 passive direct box combine premium though-hole components, European-made transformers and rugged, road-ready construction to deliver rich, warm tone in any environment. Boasting an ultra-flat frequency response with extremely low distortion and self-noise, the TDP direct boxes excel at capturing everything from synthesizers and keyboards to acoustic-electric guitar and electric bass with a certain subtle and unique character. At the heart of all TELEFUNKEN Elektroakustik direct boxes are custom-wound output transformers made in England by OEP/Carnhill. Each channel features premium metal Amphenol connectors and recessed metal switches to engage the -15 dB pad and ground lift. These elements combined with premium passive components (including 1% tolerance metal film resistors, and WIMA and Nichicon capacitors) are all housed in a rugged aluminum chassis designed to withstand the wear and tear of the road. Like all TELEFUNKEN microphones, all TDP direct boxes are assembled and critically tested in Connecticut, USA.

FEATURES

• Custom-wound OEP/Carnhill transformer, made in the UK
• -15 dB pad switch
• Ground lift switch
• Rugged aluminum construction
• Recessed switches and connectors for protection
• 100% through-hole components
• Amphenol connectors
• WIMA and Nichicon capacitors
• 1% 1/4W metal film resistors
• 3-year warranty

TECHNICAL SPECIFICATIONS

• Type: Passive Direct Box
• Frequency Range: 10 Hz – 70 kHz, ±1 dB
• Transformer: Custom-Wound OEP/Carnhill
• Input Impedance: > 20 kΩ
• Output Impedance: < 200 Ω
• Maximum SPL (for 1% THD): > +18 dBV

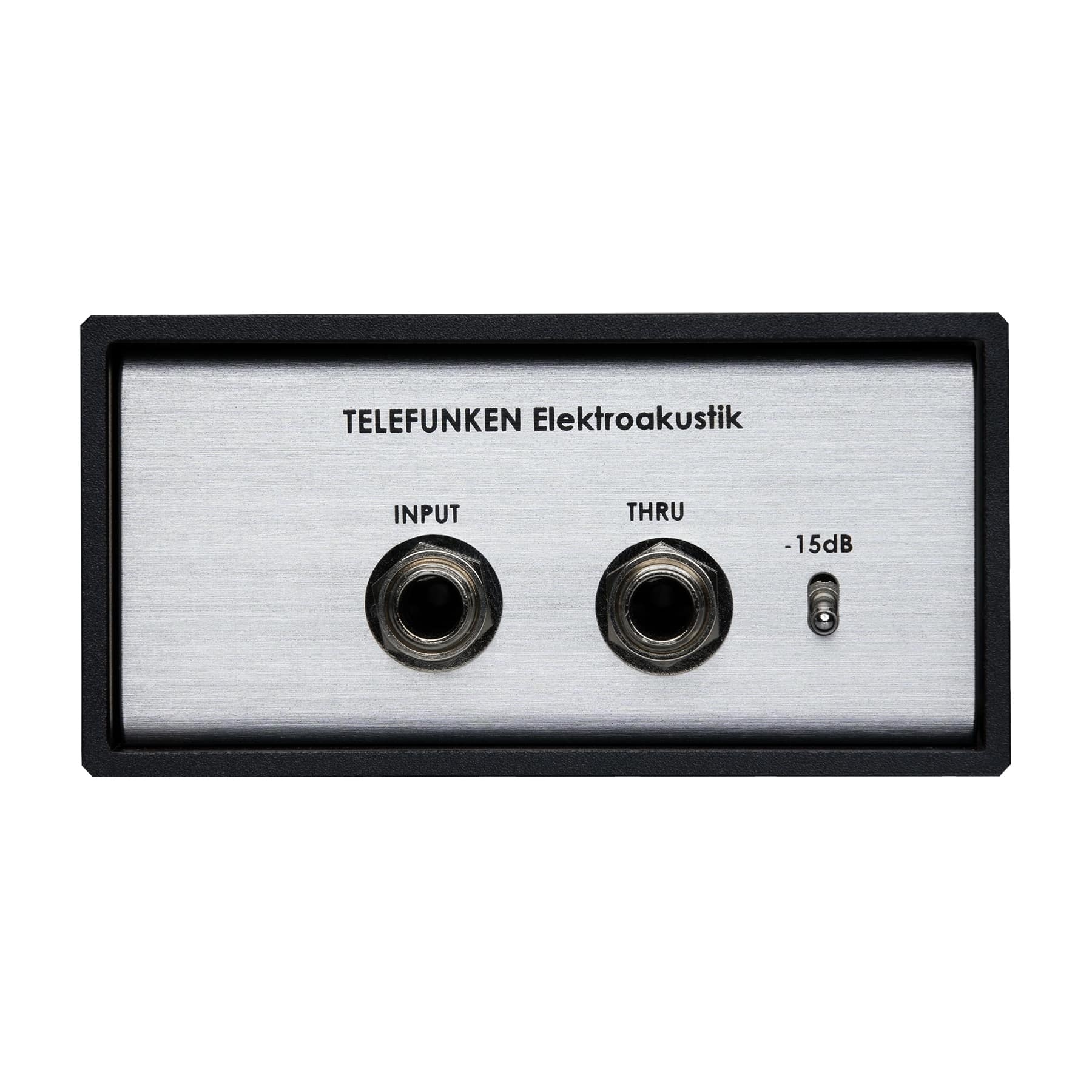

• Input Connections: 1/4″ Jack

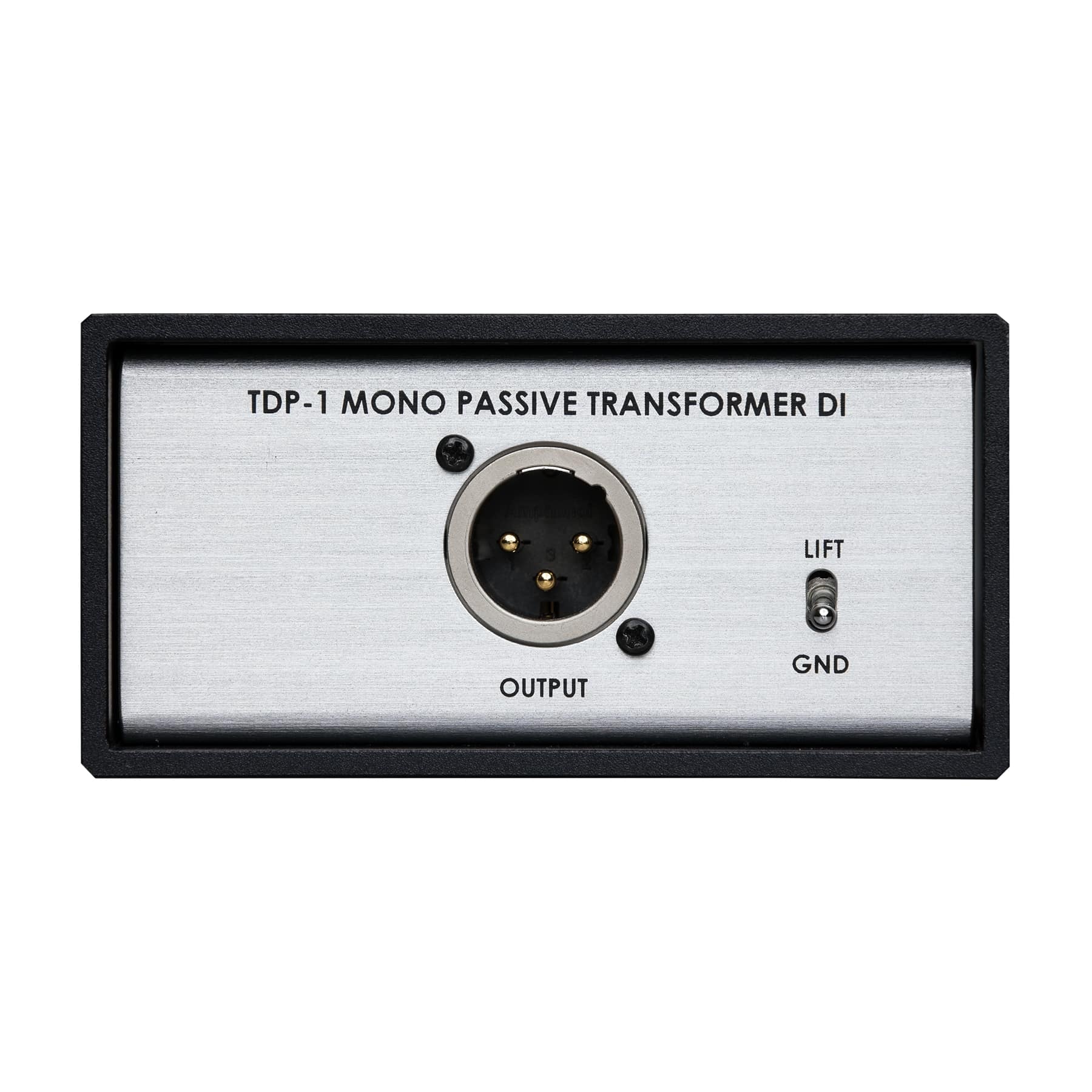

• Output Connections: XLR Output, 1/4″ Thru
• Dimensions: 100 mm L x 100 mm W x 50 mm H
• Weight: 490 g
• Included Accessories: Cloth Drawstring Bag
