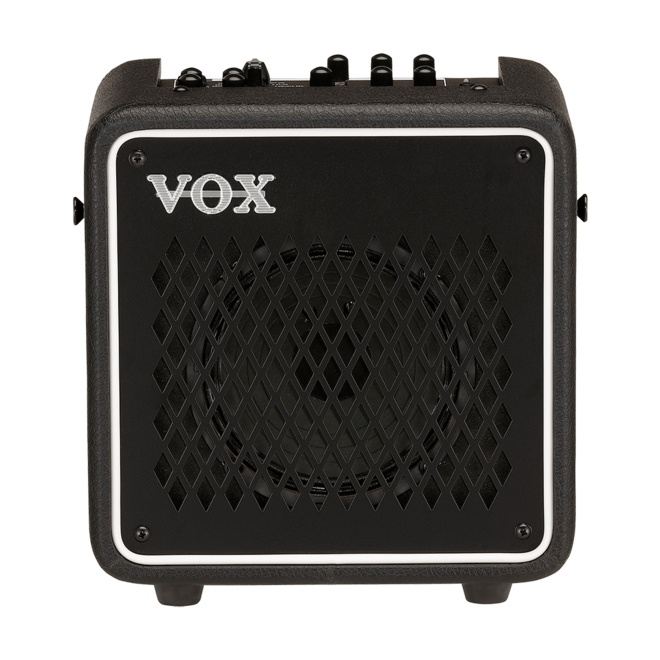

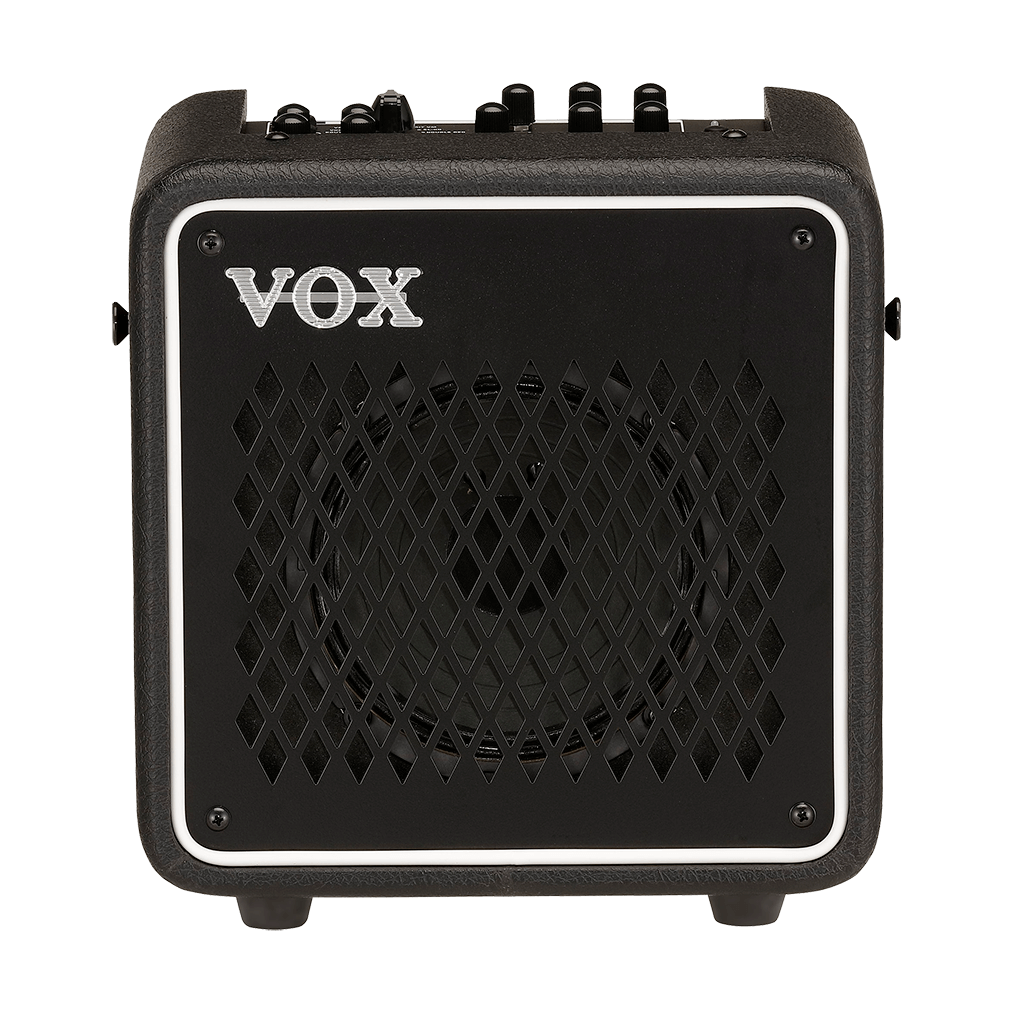

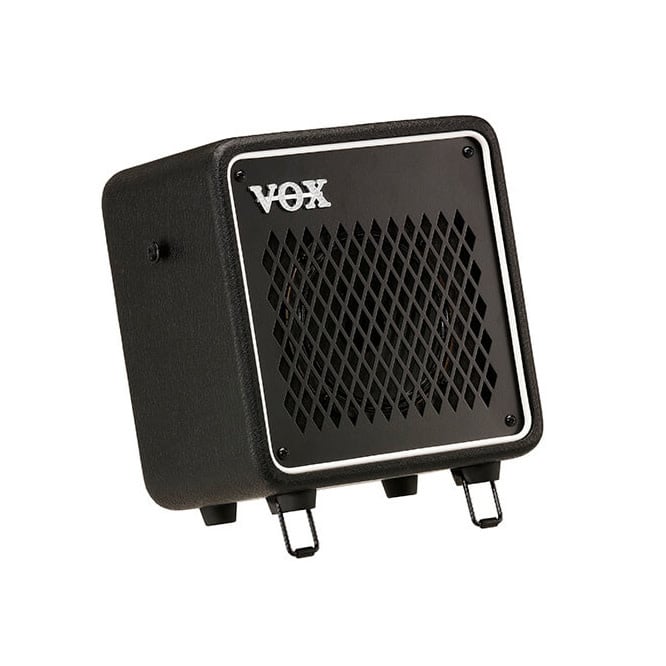

Vox MINI GO 10 Portable Guitar Amplifier

True VOX Tone, on the GO

The VOX MINI GO 10 guitar amp can be taken with you anywhere you go for practice and performance.

This amp is lightweight, compact and can be powered by a mobile battery. It also offers powerful and realistic amp models, as well as a newly developed vocoder for talking modulation effects, onboard effects that let you create a diverse range of sounds, a mic input, AUX input, a headphone jack and a rhythm machine that can play back patterns from many genres.This model also includes a looper, which you can use along with the effects and rhythm machine to add variation to your solo performance.

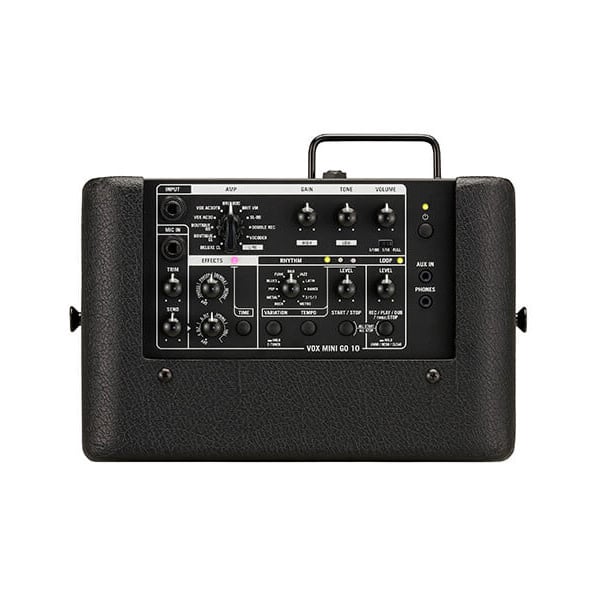

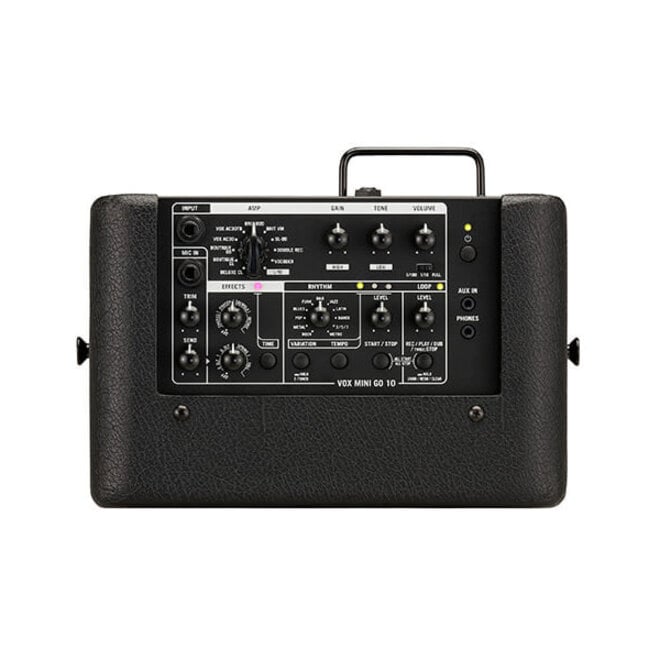

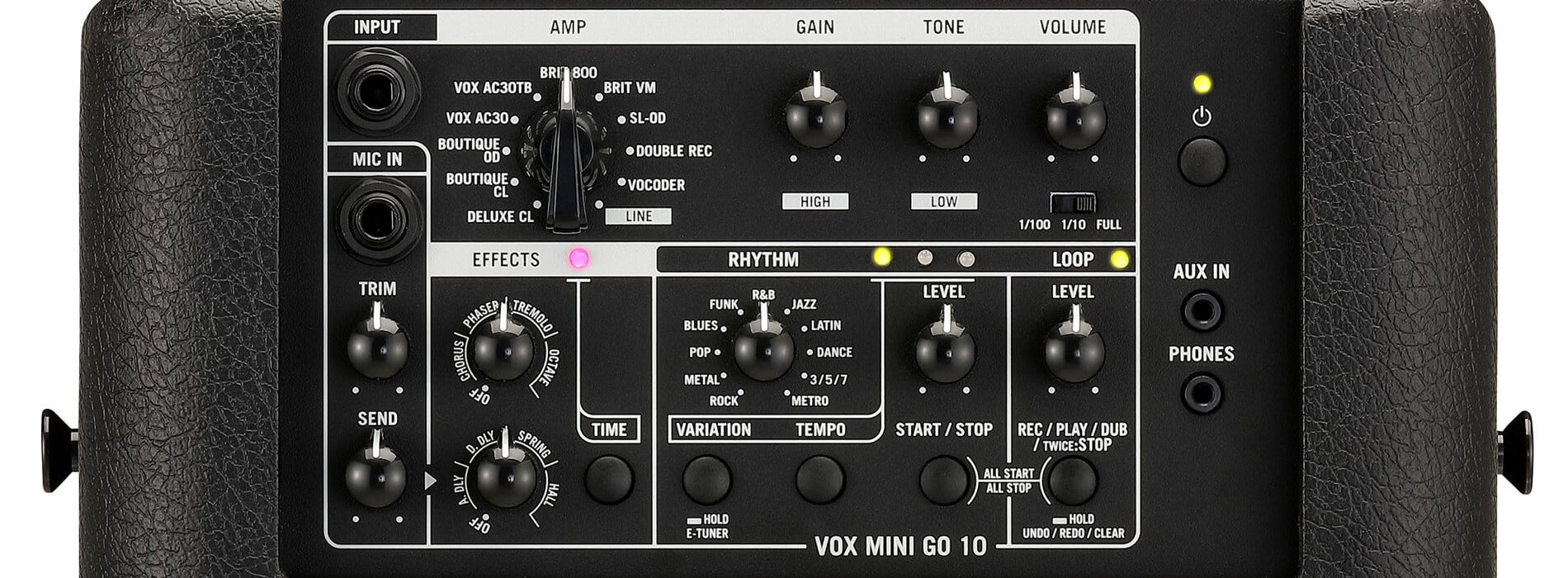

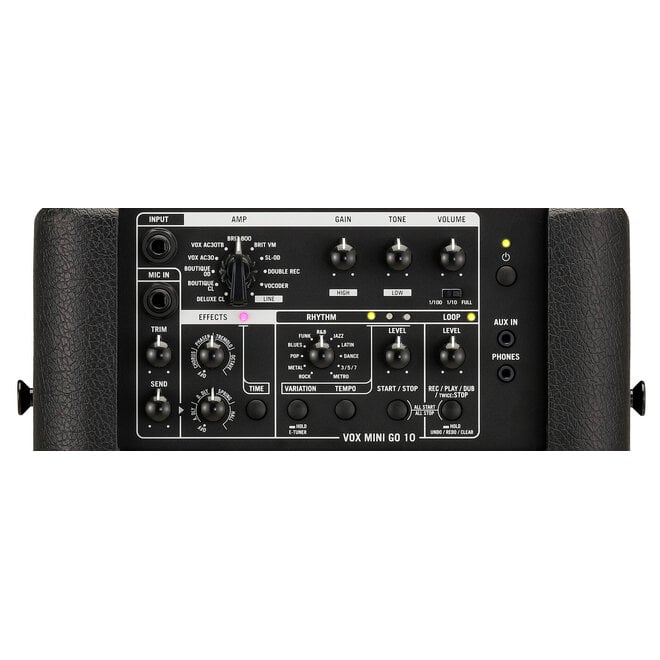

Amp models

The LINE setting is useful when plugging in an electric acoustic guitar or keyboard. A new and unique VOCODER has been added for “talking modulation” effect that you can use by playing the guitar along with the mic (Can also sound unique even without the mic.).

DELUXE CL, BOUTIQUE CL, BOUTIQUE OD, VOX AC30, VOX AC30TB, BRIT 800, BRIT VM, SL-OD, DOUBLE REC, VOCODER, LINE

Effects

• EFFECTS1: CHORUS, PHASER, TREMOLO, OCTAVE
• EFFECTS2: A.DLY, D.DLY, SPRING, HALL

Rhythm machine

There are three variations for each genre, for a total of 33 types of rhythm patterns.

Patterns: ROCK, METAL, POP, BLUES, FUNK, R&B, JAZZ, LATIN, DANCE, 3/5/7, METRO

Can be powered by a mobile battery—the perfect choice for street performances or outdoor fun!

Use a VFS3 foot switch to control various features such as the rhythms and looper

Built-in looper functionality

The looper on these amps lets you loop the playback of phrases you record with your guitar or mic and then play along for a jam session, or overdub again and again in real-time performance.

When using the looper along with the rhythm machine and then recording while the rhythm pattern plays, the length of the loop when you stop recording is adjusted (quantized) to match the length of the measure. Also, when you play a rhythm pattern while the looper is playing, the tempo of the rhythm is automatically set to match the loop’s length.

Use the optional VFS3 (sold separately) to freely mix the three loop modes while you play.

• Mode 1: Record → playback → overdub…
• Mode 2: Record → overdub → playback…
• Mode 3: Clear the previous phrase and record → playback

SPECIFICATIONS

• AMP MODELS: 11
• EFFECTS: 8
• RHYTHMS: 33
• TEMPO: 40-240 bpm
• LOOPER RECORDING TIME: 0.25-45 sec
• E TUNER: E1-E6 (41.2 Hz-1318.5 Hz)

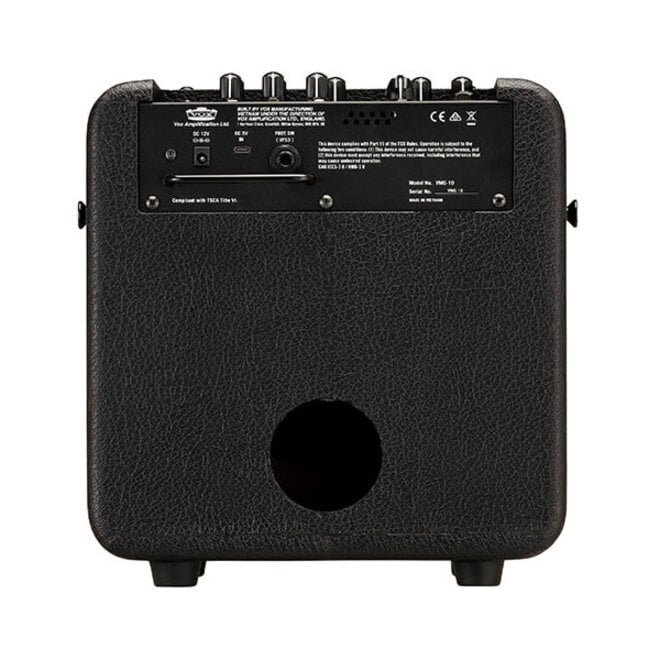

• INPUT/OUTPUT: INPUT jack, MIC IN jack, AUX IN jack, PHONES jack, FOOT SW jack, DC jack, DC 5V IN jack
• OUTPUT POWER: Max 10 W RMS 16 ohms
• SPEAKER: 6.5 inch 16 ohms
• POWER SUPPLY: AC adaptor (DC 12V) or mobile battery (DC 5V – Commercially available)
• POWER CONSUMPTION: 1 A
• MOBILE BATTERY: 5 V/3 A*
• DIMENSIONS (W X D X H): 296 x 210 x 294 mm / 11.65″ x 8.27″ x 11.57″
• WEIGHT: 4.5 kg/9.92 lbs.
• INCLUDED ITEMS: AC adaptor (DC 12V), Carrying strap.
• POINTS OF CAUTION WHEN USING A MOBILE BATTERY: Use a mobile battery with a power output of 1.5 A or greater.
