Arturia MiniFuse 1 Compact USB-C Audio Interface

Make Your Sound Happen

Make music and record audio wherever inspiration strikes, from your home studio to the great outdoors, with the ultimate portable recording interface.

Whether you're a solo guitarist, vocalist, budding content creator, or anything in between, enjoy the sharpest sound quality, the smartest features, and the best software included as standard. MiniFuse 1 is designed to make your sound happen.

Recording Made Easy

MiniFuse 1 is made to bridge the gap between idea and finished product. Built by audio experts and engineers with a passion for brilliant sound, it ticks every box for whatever type of audio creation you're into, from podcasting to beatmaking.

Creativity Connected

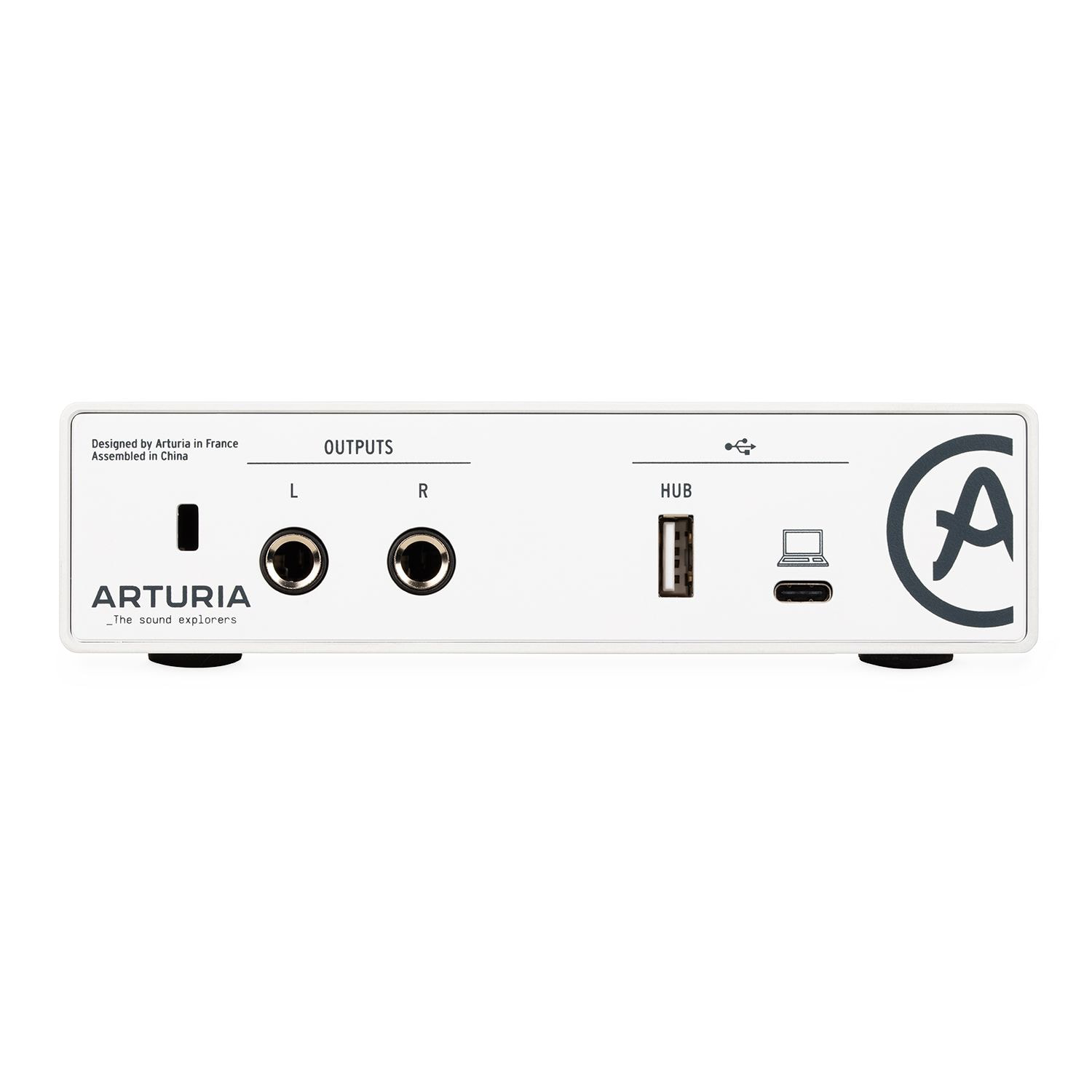

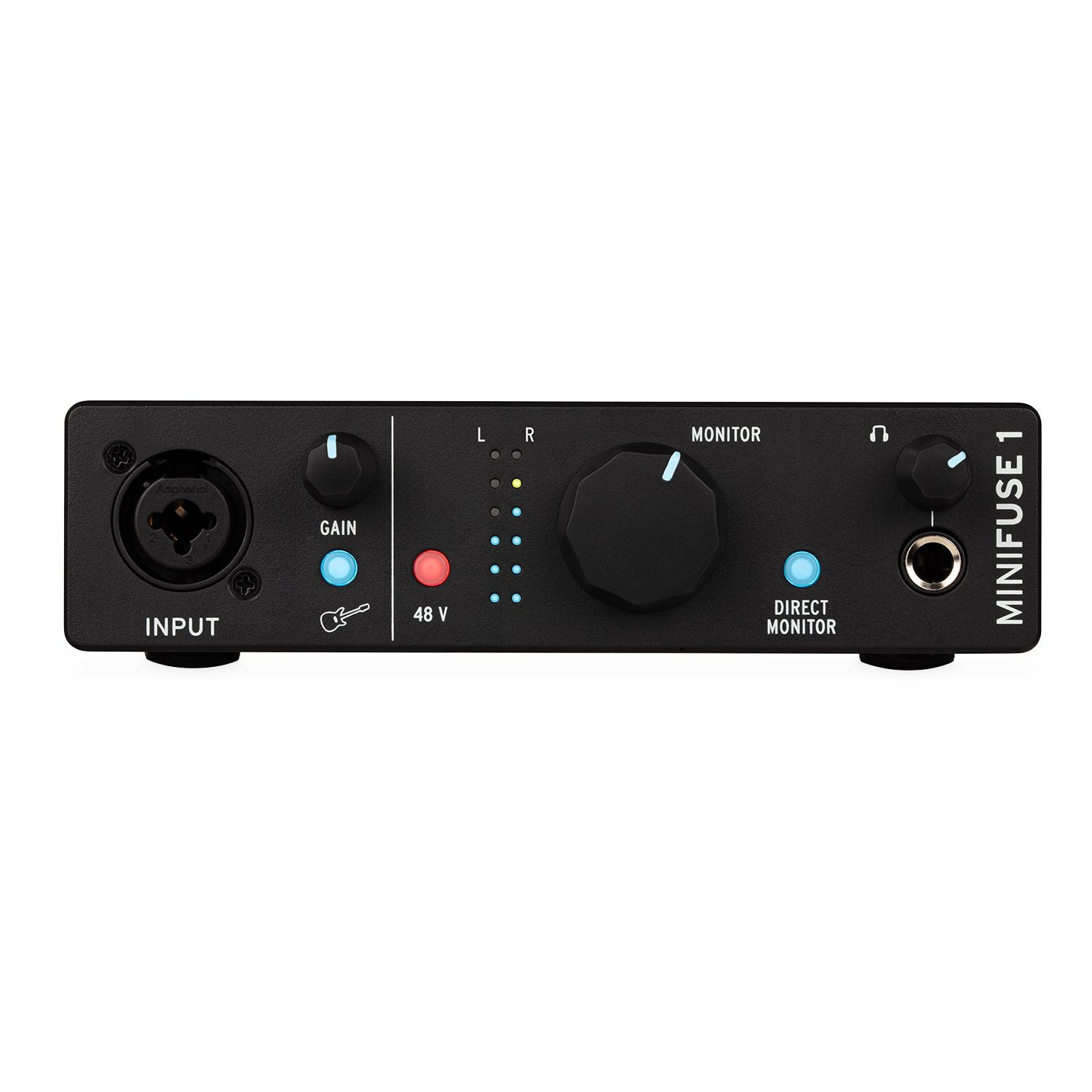

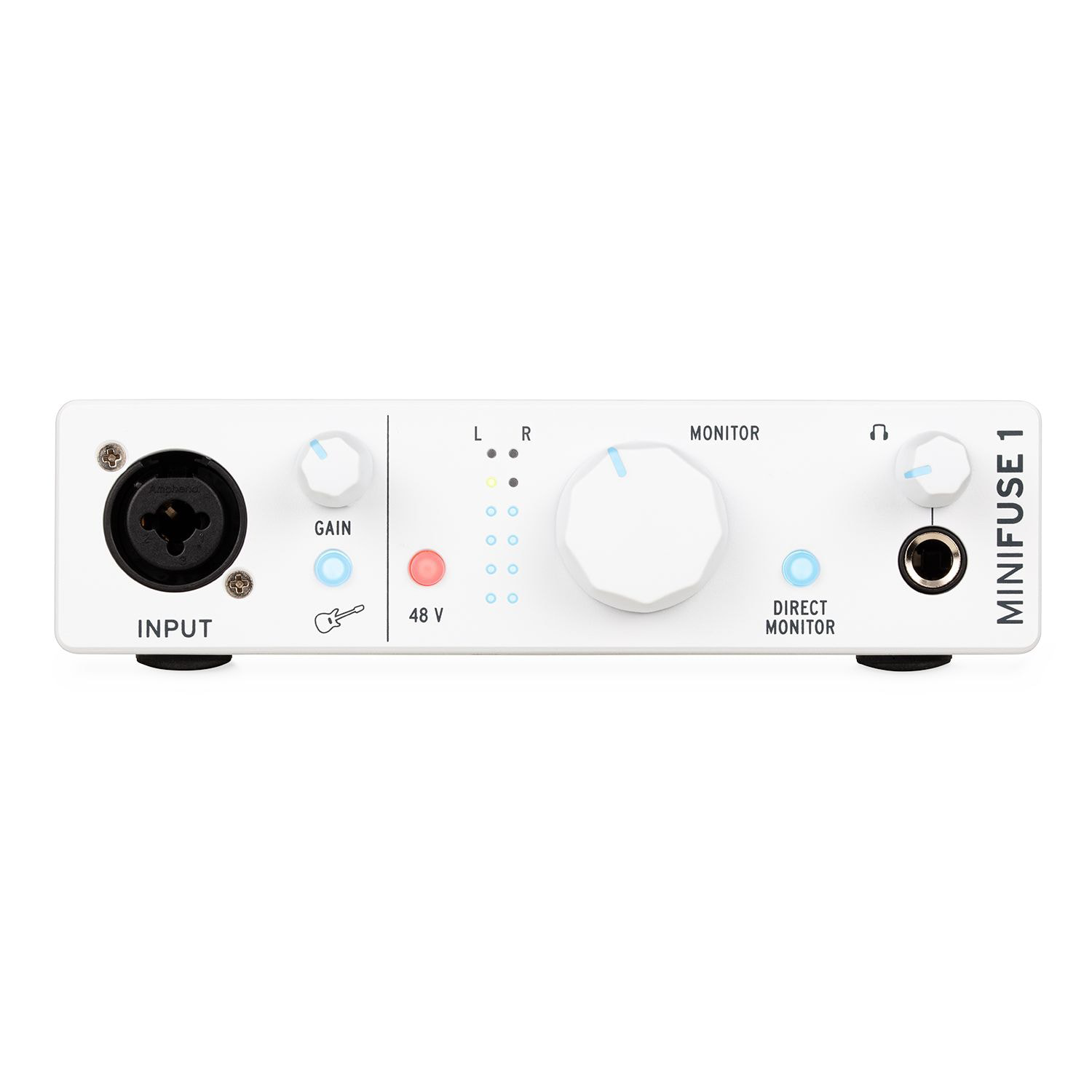

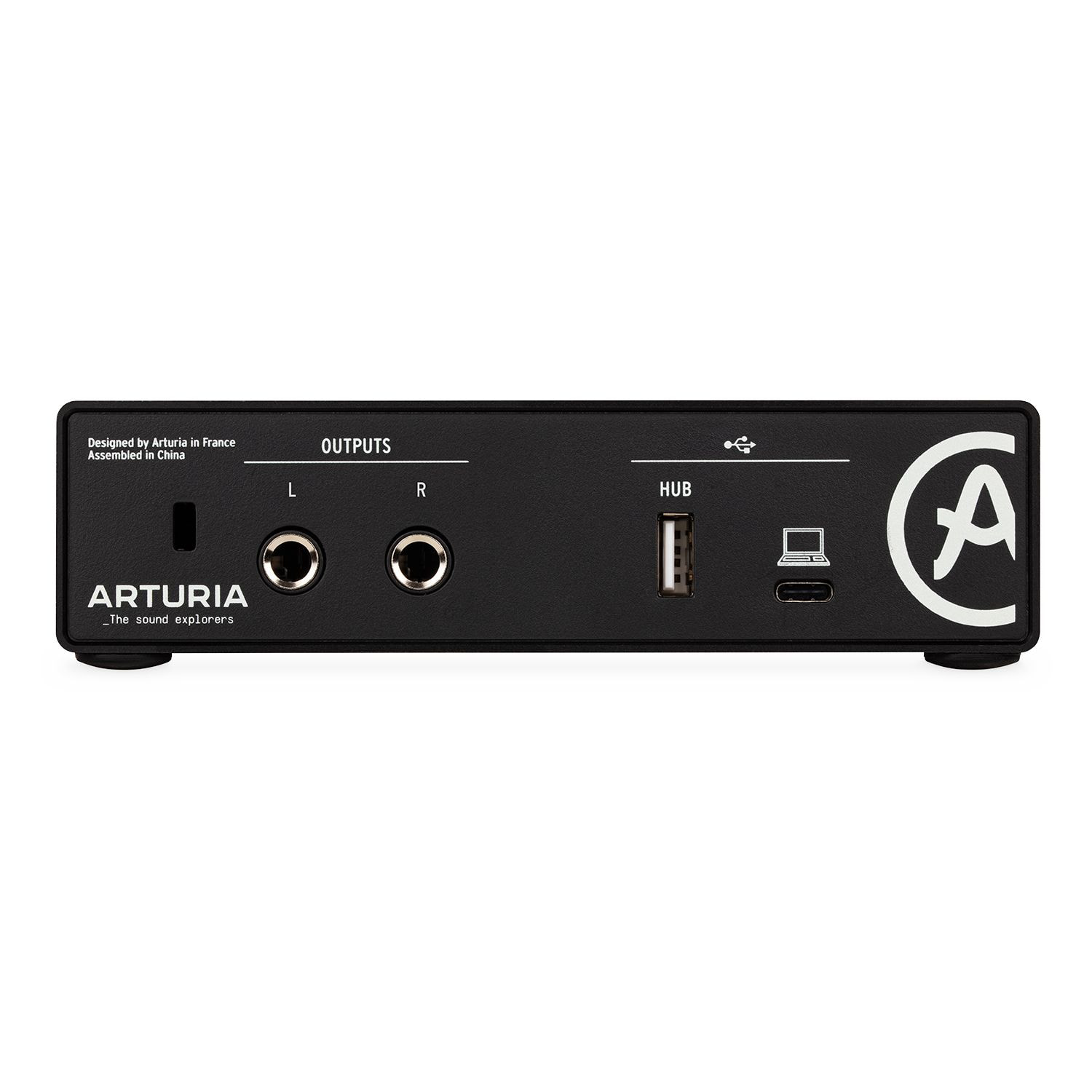

MiniFuse 1 fits right into your setup with a straightforward set of ins and outs. Its single combo input lets you easily connect either XLR or 1/4" jack cables. Plug into your computer with quick & compact USB-C compatibility. Finally, connect USB devices like your MIDI keyboard with the additional USB hub socket.

Simply the Best Sound

For audiophiles, MiniFuse boasts a 110dB dynamic range and a class-leading equivalent input noise of -129dB. For everyone else, that means that every recording you make sounds incredible, with rich dynamics, clear noise-free signal, and studio-grade quality - you can't go wrong.

Tough, Portable Design

Break the mold and take your studio on the go. MiniFuse is not only compact and lightweight; its rugged aluminum casing can handle the mobile producer's lifestyle. Chuck it in your bag, get out there, and find the sound you've been looking for.

Fully Operational

Whether you're using a laptop or desktop, MiniFuse can work for you. PC or Mac, connect it and enjoy total recording freedom. Better still, with the MiniFuse Control Center app, you can monitor its inputs, outputs, settings, and firmware updates in one place.

The Best Software Included

MiniFuse comes with an exclusive selection of software titles offering everything you need to give your sound the professional edge. This isn't a bundle of premium plugins or demos - this is the same exceptional software used by music and audio professionals worldwide.

• Ableton Live Lite
• Analog Lab Intro
• Arturia FX
• Native Instruments GUITAR RIG 6 LE
• Auto-Tune Unlimited (3-months free subscription)
• Splice Creator Plan (3-months free subscription)

Features

• Included Arturia instruments - 500 vintage & modern keyboard presets with Analog Lab Intro
• Tutorials - Learn recording and music production with MiniFuse, starting with the basics
• Exclusive content - Tips, tricks, and advice from industry experts
• Dedicated online portal - Access everything you need online in one place
• Subscriptions - Complimentary introductions to world-class audio & mixing services
• 1 x combo Mic/Inst/Line XLR Input with 48V phantom power
• 2 x 1/4" TRS balanced line outputs with volume control
• 1 x stereo headphone output with volume control
• Direct Monitor switch
• 1 x USB2 type A hub (250mA max.)
• 1 x stereo virtual loopback channel
• USB-C interface compatible with PC and Mac, fully USB 2.0 compatible
• Bus-powered

Specifications

Line Inputs

• Input impedance: 16kΩ
• Maximum input level: +22dBu
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)

Instrument Input

• Input impedance: 1MΩ on Tip
• Maximum input level: +11.5dBu
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -91dB typical (un-weighted)

Microphone Preamps

• Input impedance: 2.5kΩ
• Maximum input level: +9dBu
• Gain range: 56dB
• Equivalent Input Noise (EIN): -129dB typical (A-weighted)
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)

Speakers

• Output impedance: 94Ω
• Maximum output level: +12dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 107.5dB typical (A-weighted)
• THD+N @ 1kHz: -101dB typical (un-weighted)

Phones

• Output impedance: 10Ω
• Maximum output level: +11.4dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 104dB typical (A-weighted)
• Power @ 33ohm: 137mW

Supported Sample rates

• 44.1kHz, 48kHz, 88.2 kHz, 96kHz, 176.4kHz, 192 kHz
