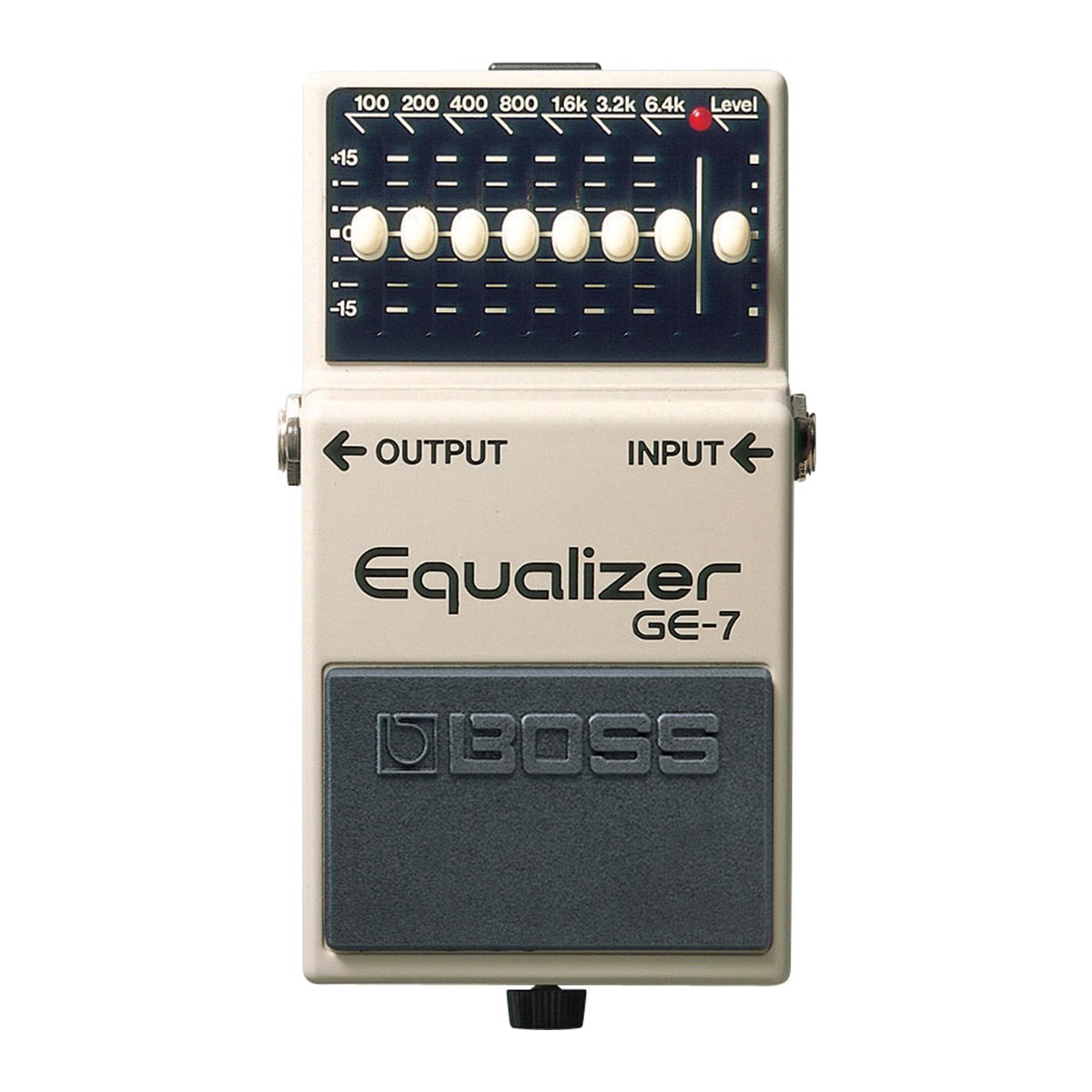

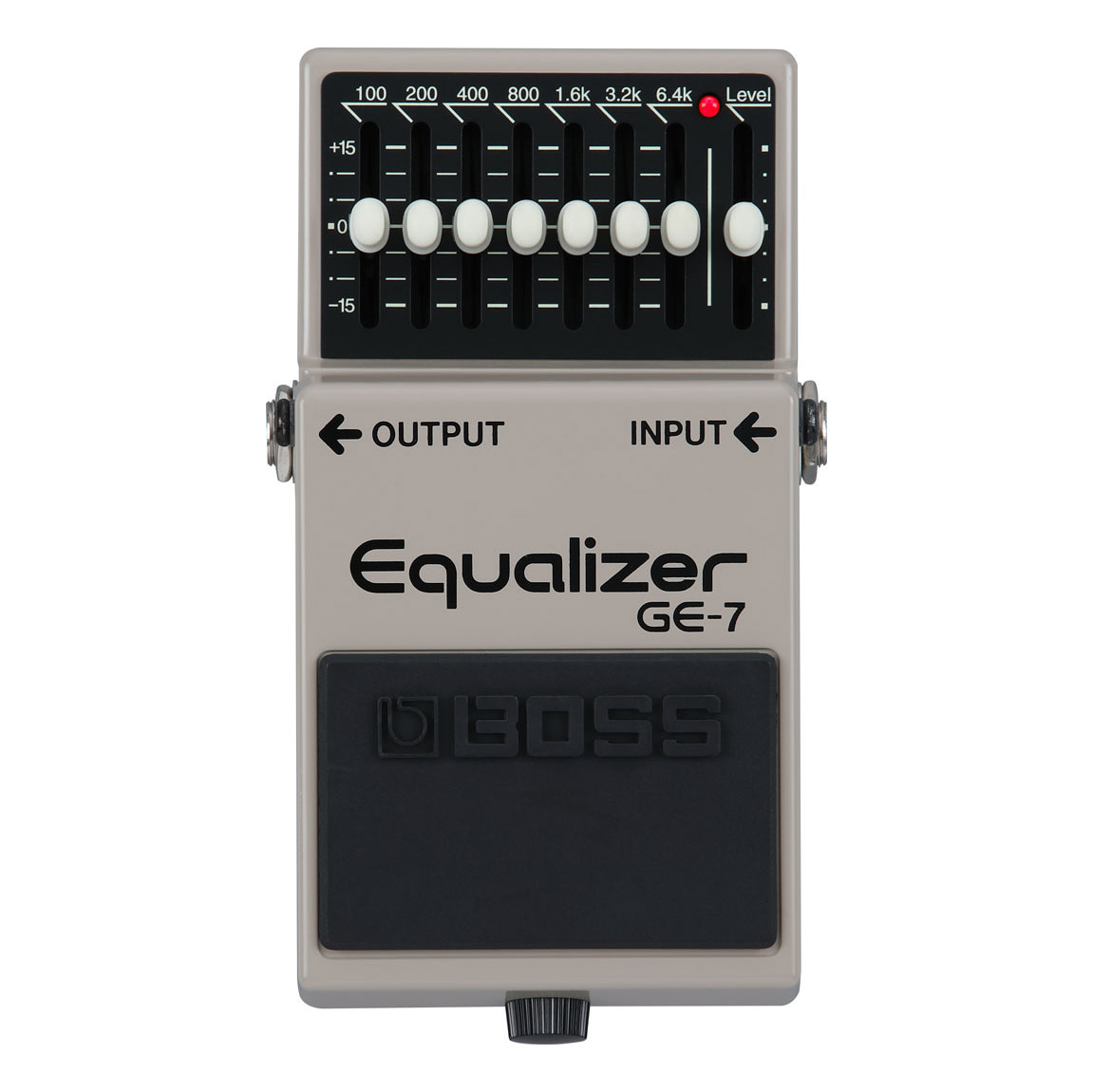

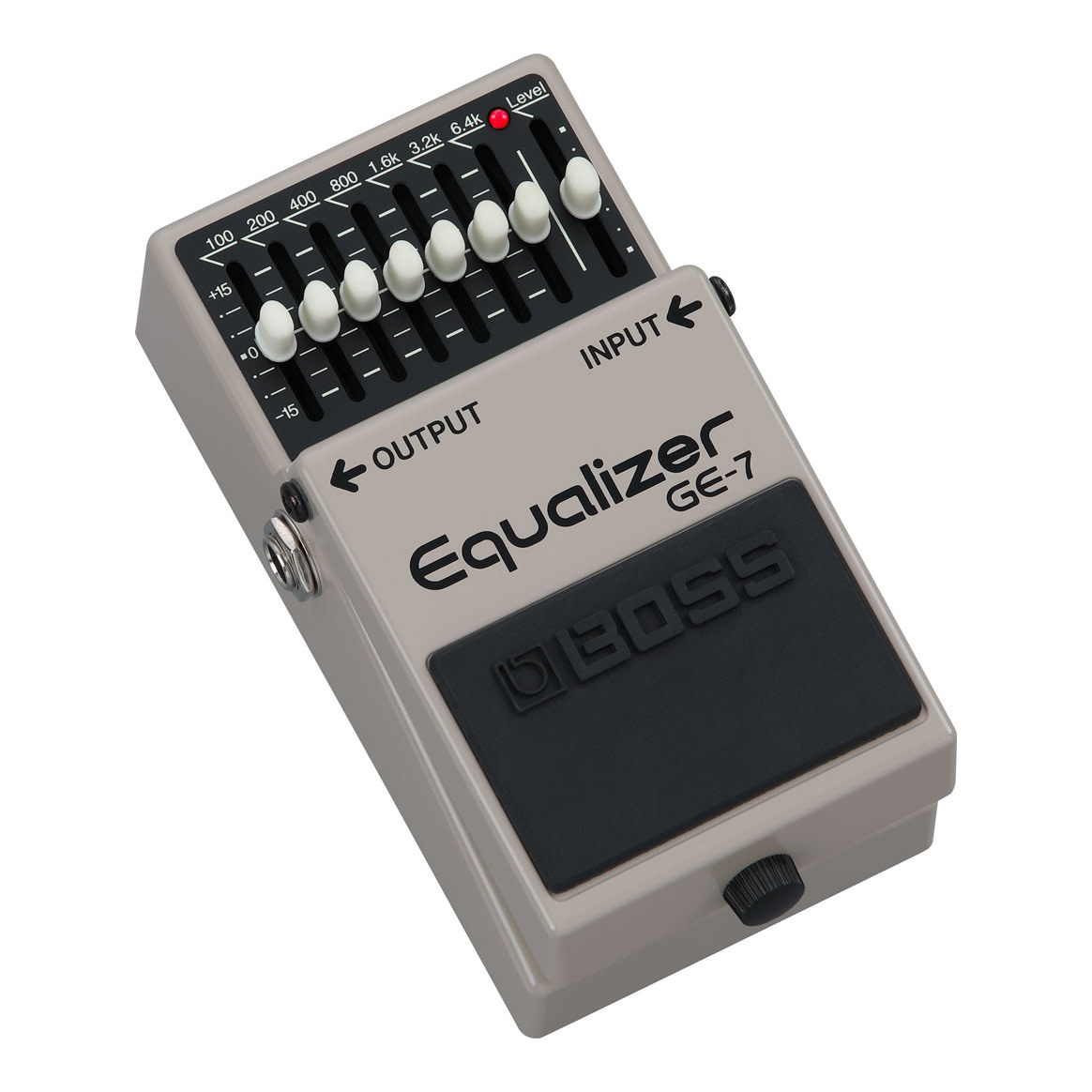

Boss GE-7 7 Band EQ Pedal

Product Description

POWERFUL 7-BAND EQ!

The GE-7 Equalizer pedal offers seven bands of EQ ranging from 100Hz to 6.4kHz, ideal for guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.

Features:

• Compact EQ pedal with 7 bands of adjustable EQ sliders
• Allows for boost/cut of up to +/- 15dB per band
• Perfect as a "boost" pedal for solos, creating an alternate sound, or for eliminating feedback
• BOSS five-year warranty

Specs:

• Nominal Input Level, -20 dBu
• Input Impedance, 1 M ohm
• Nominal Output Level, -20 dBu
• Output Impedance, 1 k ohm
• Recommended Load Impedance, 10 k ohm or greater
• Bypass, Buffered bypass
• Controls, Level Control knob / Equalizer Control knob / 100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz / Pedal switch
• Indicator, CHECK indicator (Serves also as battery check indicator)
• Connectors, INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DC IN jack
• Power Supply, Carbon-zinc battery (9 V, 6F22) / Alkaline battery (9 V, 6LR61) / AC adaptor (PSA series: sold separately)
• Current Draw, 30 mA
• Expected battery life under continuous use, Carbon: Approx. 9 hours / Alkaline: Approx. 19.5 hours *These figures will vary depending on the actual conditions of use.
• Accessories, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") / Carbon-zinc battery (9 V, 6F22)
• Options (sold separately), AC adaptor: PSA series

SIZE AND WEIGHT

• Width, 73 mm / 2-7/8 inches
• Depth, 129 mm / 5-1/8 inches
• Height, 59 mm / 2-3/8 inches
• Weight (including battery), 400 g / 15 oz
