Product Description
KICK PEDAL, HI-HAT STAND & THRONE NOT INCLUDED
EFNOTE 7X : The Peak of Inspiration
Drives Your Creativity
- Specially full-expanded based on EFNOTE 7
- Full-sized 5-piece shell and 5-piece cymbal set
- 360° flat sensing with multi-sensor technology
- World's first STAK™ 17" FX cymbal
- Player centric design
Authentic Presence
- Proves your musicality to the audience on stage
- Low, wide and bold silhouette asserts its potential
- Dignified black oak-ish finish
- Realistic swaying of full-sized cymbals that visualize its sound
Tradition and Innovation
- Modern but classic setup with:
- 1x basket stand mounted tom
- 2x floor tom
- 1x holed effect cymbal
- 1x crash cymbal
- 1x splash cymbal
Portrays Textures of Vintage Drums
- Good old collector's drum sets are newly recorded for EFNOTE 7/7X
- Contains attack and eKick elements that can be layered to enhance the sound
- Dedicated remastered acoustic drum sounds
Drums & Cymbals
17" FX Cymbal - Real-Feel
- Light touch and real wobbling
- 360° flat sensing
- Special surface design with dedicated dark-gray color and hammered texture
17" FX Cymbal - Stackable
- World's first STAK™ mount design enables stacking electronic cymbals
- In the EFNOTE 7X configuration, the 8" splash cymbal can be stacked on the 17"
17" FX Cymbal - Suspendable
- STAK™ also provides a suspended cymbal setting with clean wiring
20" Ride Is Here!
- The 20" diameter provides slow wobbling of edge and the quick response of bow/cup
- Multi-sensored 360° play/choke area
- 360° free-swinging design
- Responsive thin edge
- Hammered texture surface
Finest Hi-Hat Cymbals
- 14" top/bottom cymbals
- World's first multi-optical sensing to capture the motions in 3D
- Tru-Motion™ technology for expressiveness leap
- 360° free-swinging top/bottom cymbal design
Beautiful Cymbal Surface
- Elegant warm-gray and refined dark-gray (17" FX) surface with fine engravings
- Clean silicone rubber surface that is resistant to drumstick mark
9-Sensor Snare Drum
- 14 x 5.5", 10 lugs, birch wood shell, 2ply mesh drum head
- Multi-sensor for hotspotless and high-resolution sounding
- High head tension tuning available
- Wide and adjustable side-rim
Independent Side-Rim
- Easy, intuitive and reliable
- No switch operation required
- Elegant arc design
20" Kick, Unwavering Confidence
- 20 x 15", 10 lugs, birch wood shell, 2ply mesh drum head
- Props the whole set at the center of stage
- Stable multi sensing for single/double beater(s)
Modern Two Floor Toms Style
- 13 x 13", 8 lugs / 15 x 15", 8 lugs
- Birch wood shells, 2ply mesh drum heads
- Multi-sensor for hotspotless and high-resolution sounding
- Low-rebound 2ply mesh drum head
- Low head tension tuning available
Sound Module
Ultra-Compact Sound Module
- Ultra-small form factor with uncompromised features
- Metal chassis and aluminum finish
- High quality DAC and audio circuit
- High power headphone amplifier
- Touch screen intuitive user interface
ELISE™ Sensing Processor
- Capturing drummer's intentions from each stroke
- Low latency, wide dynamic-range, consistent and stable sensing
- Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads
Full-Scale Acoustic Sound
- Full stereo acoustic drum/cymbal samples recorded by EFNOTE
- Tru-Aco™ sound technology provides real drum/cymbal sound behaviors
- Raw sound without resynthesis
For Training
- Multi-function metronome with beat LED indicator
- Built-in metronome speaker for daily training without headphones
- On-board drum recording function (15 tracks)
- Stroke Analyzer
- Rhythm Box feature provides over 90 basic drum beats
For Recording
- USB 8-ch individual audio outputs with Mac / Windows (ASIO)
- USB 2-ch audio inputs for playback
- Analog 4-ch audio outputs
- USB MIDI in/out with individual MIDI channels
- MIDI output (5-pin DIN)
For Small Gigs
- Setlist feature enables you to configure kit order with tempo for each song
- Kick and Snare can be output individually with analog 4-ch outputs
- Click and Audio-In can be assigned only for headphones
- High-power headphones output
- MIDI output (5-pin DIN)
Stroke Analyzer
- "Stroke Scope" displays your strike points on time-line
- "Accuracy Score" estimates your strike accuracy
Sound Edit
- Tuning, Muffling, 2-band EQs for each pad
- Pad layer function can overlay two sounds
- User Inst Library enables you to store 128 customized instruments
- On-board reverb
- Dedicated level control screen
Flexible Audio Routing
- 10-ch output buses
- Flexible output routing for each pad
- Output assignable click
- Output: 4-ch analog / 8-ch USB
- Input: Analog / Bluetooth / 2-ch USB
Bluetooth®
- Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
- Bluetooth MIDI
- EFNOTE Tools App for control remotely
EFNOTE Tools App
Carry Data with You
You can backup, restore, and share drum kit data and trigger settings with your smartphone.
Get New Drum Kits
Visit the official Kit Library to get the new drum kit data. There you will surely find ideas that inspire your creativity.
Adjust Remotely
For small gigs, drummers often cannot rely on FOH engineers. Now you can remotely adjust the each pad level while playing back your beat with the built-in recorder.
Swap Sounds
The Swap feature makes it easy to swap each sound of toms or cymbals. It helps you changing the set up and editing kits.
Reviews
Recently Viewed
EFNOTE

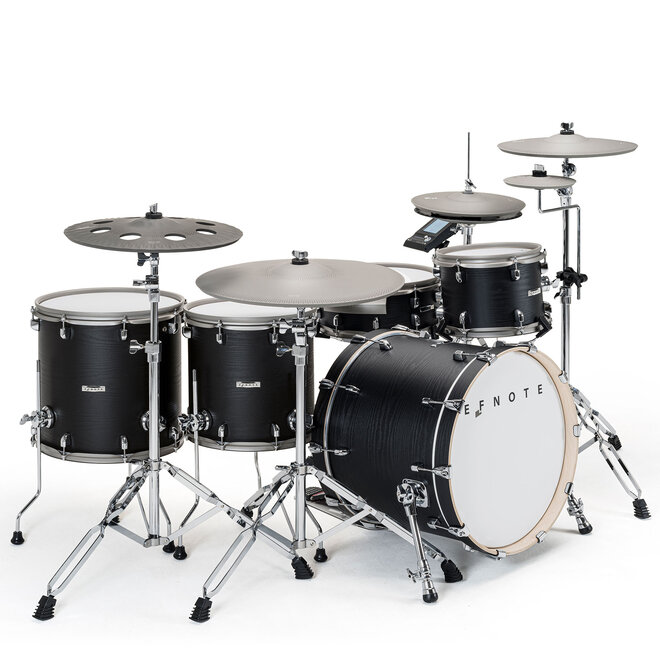

EFNOTE 7X Electronic Drum Set, Black Oak
