Product Description

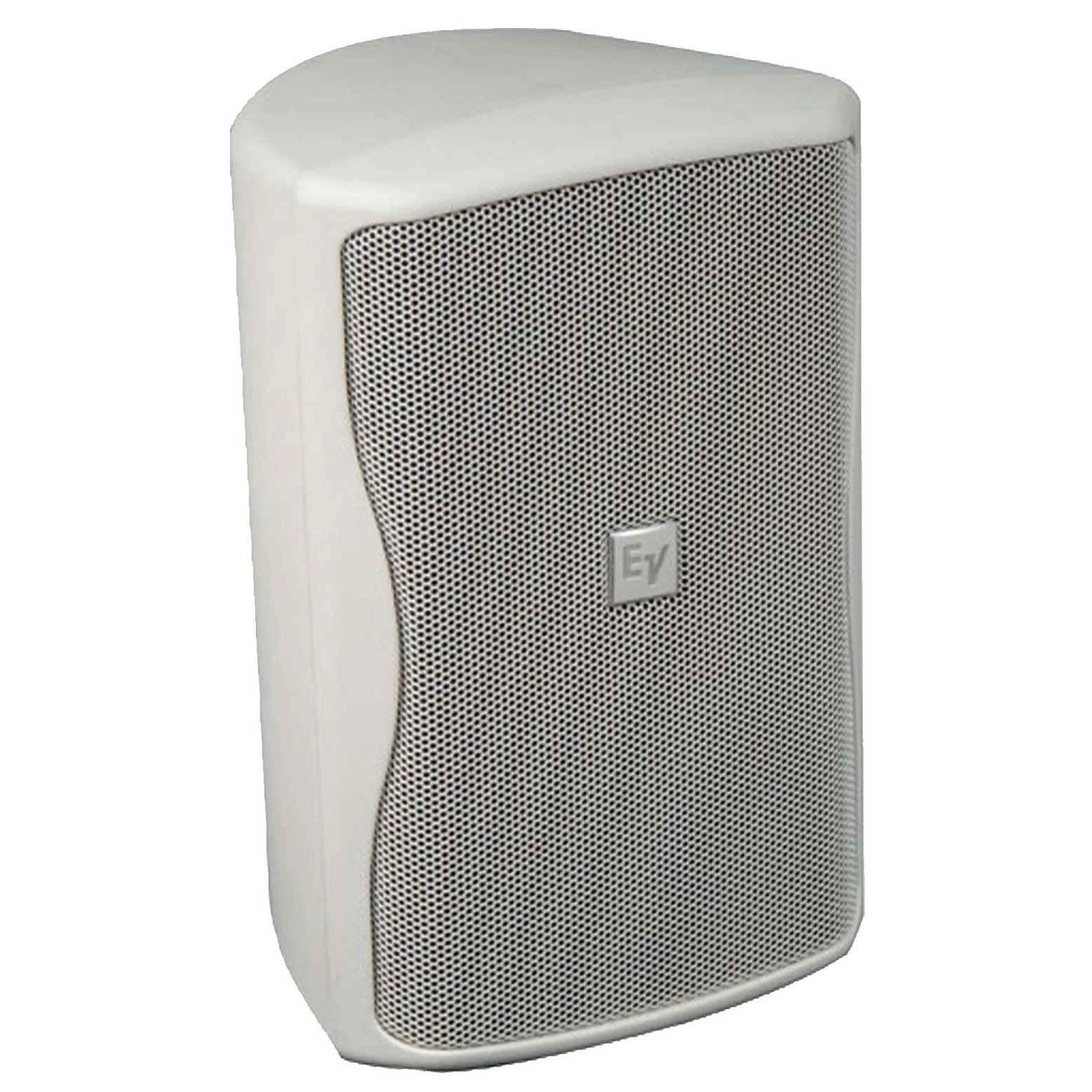

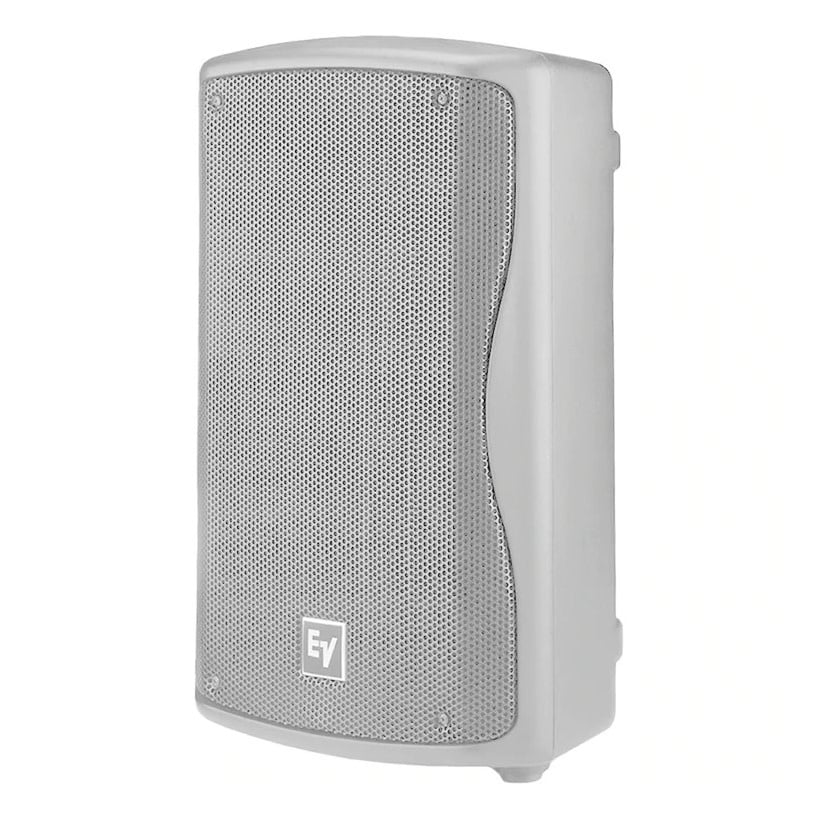

Designed for top-notch quality with amazing versatility, the ZX series sets a new standard of performance and practicality in sound reinforcement loudspeakers. Featuring high-end components and lightweight molded enclosures, the ZX line is at home in any installed or portable application, from commercial sound to clubs, HoW, stages, arenas, and stadiums. Newly-designed high power woofers and drivers ensure full-range sound with awesome richness and clarity. Sleek contemporary styling fits in anywhere. Light weight makes transport easy while enabling a multitude of flying and mounting options that are each supported by innovative mechanical solutions. Whether for portable use or permanent installation, the ZX series represents the next level in advanced loudspeaker technology.
Features
- Smooth, wide frequency response
- Ideal for mains, fills, or monitors
- Velocity-compensated port for exceptional LF
- Long-excursion weather-treated EV8L woofer
- 1.25-inch DH2005 titanium HF compression driver
- Rotatable 90º x 50º horn for flexible coverage
- Passive crossover with full-band overload protection
- High sensitivity, 123 dB maximum SPL
- Power handling: 200 W continuous, 800 W peak
- High-impact polypropylene enclosure
- Compact monitor-friendly wedge shape
- Integrated pole mount adapter and pocket handle
- Metric mounting inserts (4)
The high-tech enclosure uses injection-molded high-impact polypropylene to make the ZX1 extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small loudspeakers and enables exceptional low frequency response without vent noise.
The ZX1's long excursion, high output 8" woofer with a weatherized treated cone delivers smooth low frequency performance with exceptional reliability. A sophisticated crossover network integrates it with the DH2005, a 1.25" voice coil titanium diaphragm true compression driver for maximum output with extended frequency response. Full-bandwidth overload protection is provided for reliable, long term operation without audible effect. The horn features 90° x 50° coverage with the important added benefit of rotation, allowing the ZX1 to be oriented either horizontally or vertically for the ultimate in coverage flexibility.

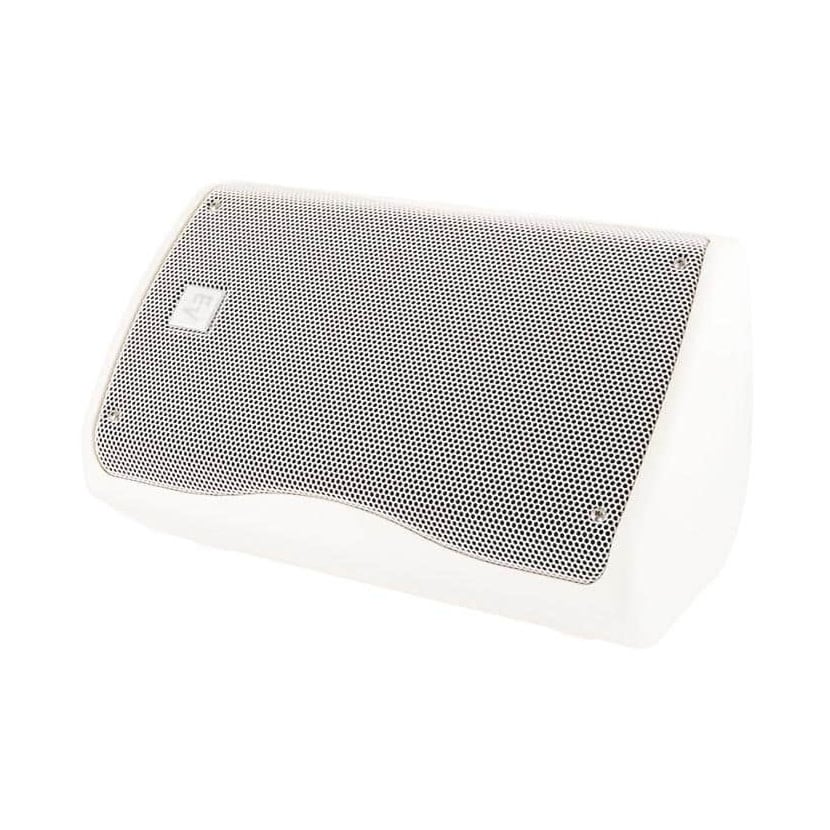

The ZX1's molded polymer enclosure is inherently water resistant. The enclosure features an integrated pole mount, a pocket handle, and a wedge-angle design allowing for use as a stage monitor.
Specifications
- Freq. Response¹ (-3 dB): 60 Hz - 20 kHz
- Freq. Range¹ (-10 dB): 48 Hz - 20 kHz
- Rec. Hipass Frequency: 40 Hz
- Axial Sensitivity¹: 92 dB (1W/1m)
- Max Calculated SPL: 121 dB
- Horizontal Coverage: 100°
- Vertical Coverage: 100°
- Rated System Power: 200W Cont. 2, 400W Prog., 800W Peak
- LF Transducer: EV8L, 8 in (203mm) Driver
- HF Transducer: DH2005, 1 in. (25.4mm) Exit Compression Driver
- Crossover Frequency: 1.7 kHz
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 6 Ohms
- Connectors: Neutrik Speakon NL4
- Enclosure Material: High Impact Polymer
- Grille: Polyester Powder Coated, 18GA Galvanized Steel
- Dim (H x W x D): 457mm x 282mm x 264mm (17.98" x 11.12" x 10.38")
- Net Weight: 8.4 kg (18.5 lbs)
- Shipping Weight: 10.2 kg (22.5 lbs)
