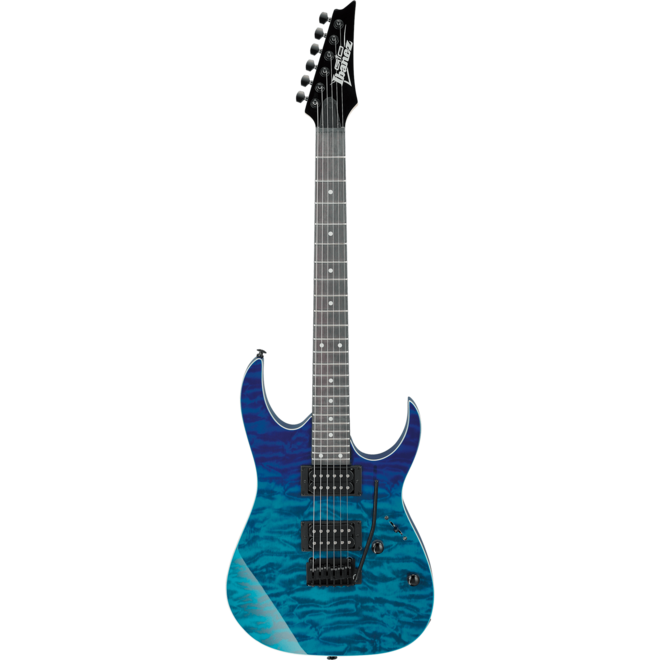

Ibanez GRG120QASP RG Gio Electric Guitar, Blue Gradation

A guitar doesn't have to cost a bundle to sound good. The GIO series was developed for players who want Ibanez quality in a more affordable package. Not only do they look and play better than everything else in their price range, but their rigorous inspection, set-up and warranty is the same as Ibanez's more expensive models.

Features

Maple neck
The Maple neck provides stability and bright tonal character.

T102 tremolo
The T102 bridge with 10.5mm string spacing allows easier picking across strings.

Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.

Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

Infinity R H-H pickups
Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.

Technical Specifications

• Neck Type: GRG
• Neck Material: Maple neck
• Body Top Material: Quilted Maple Art Grain (Basswood) top / Poplar body
• Fretboard: Bound Purpleheart fretboard / White dot inlay
• Frets: Medium frets
• Fret Count: 24
• Bridge: T102 tremolo bridge
• String Spacing: 10.5mm
• Neck Pickup: Infinity R (H) neck pickup (Passive/Ceramic)
• Bridge Pickup: Infinity R (H) bridge pickup (Passive/Ceramic)
• Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E
• String Gauge: .009/.011/.016/.024/.032/.042
• Hardware Color: Black
• Scale Length: 25.5"
• Nut Width: 43mm
• Fret Width at 24th Fret: 58mm
• Neck Thickness at 1st Fret: 19.5mm
• Neck Thickness at 12th Fret: 21.5mm
• Radius: 400mmR

GRG120QASP's Switching system diagram

When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in center position, both neck and bridge pickup s are selected. When the switch is in between center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected.

GRG120QASP's control diagram

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
