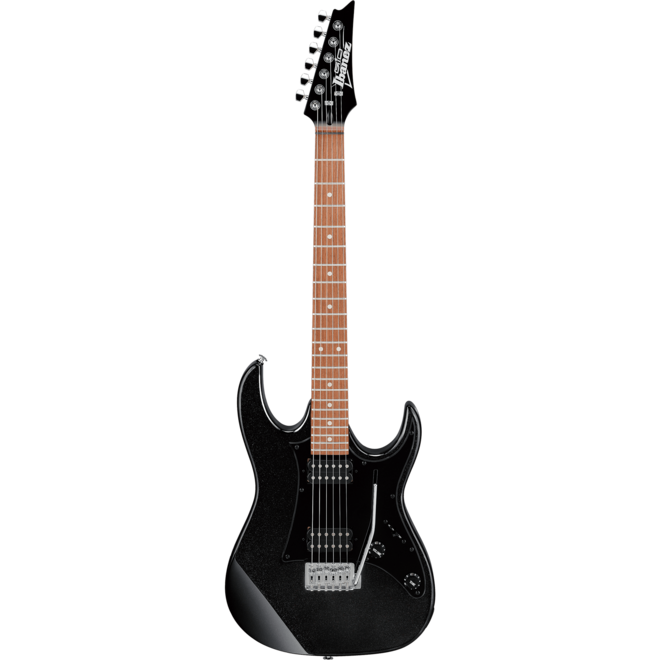

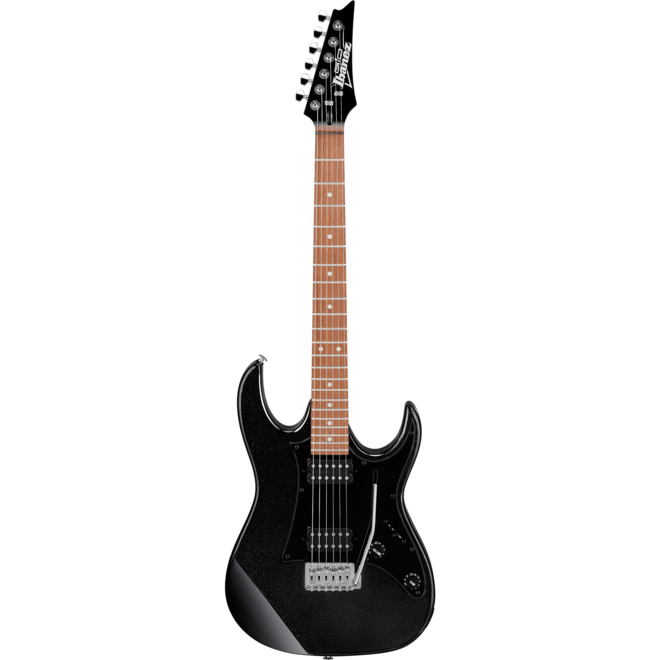

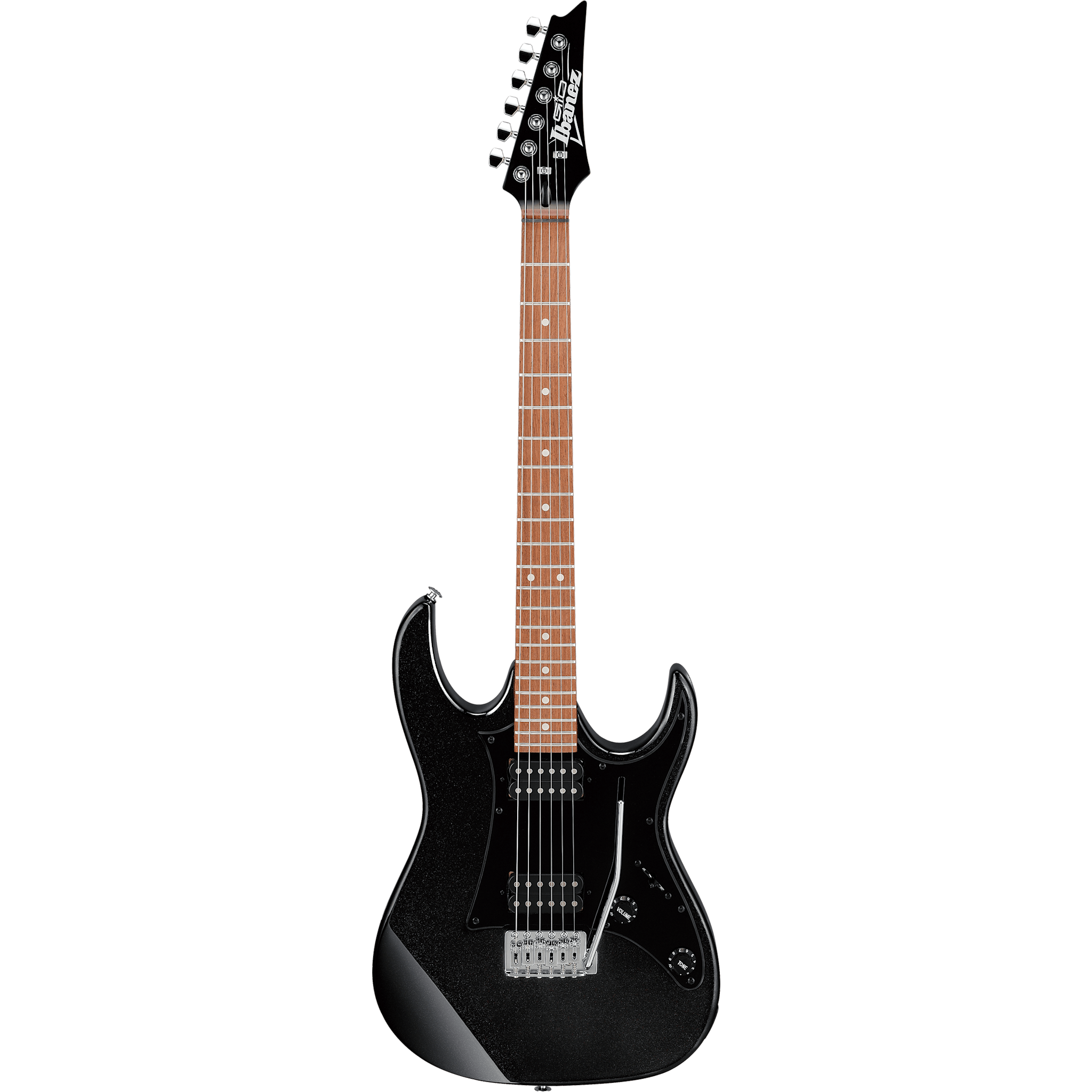

Ibanez GRX20Z RG Gio Electric Guitar, Black Night

A guitar doesn't have to cost a bundle to sound good. The GIO series was developed for players who want Ibanez quality in a more affordable package. Not only do they look and play better than everything else in their price range, but their rigorous inspection, set-up and warranty is the same as Ibanez's more expensive models.

Features

Maple neck
The Maple neck provides stability and bright tonal character.

T106 tremolo bridge
The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.

Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

Infinity R H-H pickups
Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.

Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

Technical Specifications

• Neck Type: GRX
• Neck Material: Maple neck
• Body Material: Poplar body
• Fretboard: Jatoba fretboard
• Inlays: White dot inlay
• Frets: Medium frets
• Fret Count: 22
• Bridge: T106 bridge
• String Spacing: 10.5mm
• Neck Pickup: Infinity R (H) neck pickup (Passive/Ceramic)
• Bridge Pickup: Infinity R (H) bridge pickup (Passive/Ceramic)
• Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E
• String Gauge: .009/.011/.016/.024/.032/.042
• Hardware Color: Chrome
• Scale Length: 25.5"
• Nut Width: 42mm
• Fret Width at 22nd Fret: 57mm
• Neck Thickness at 1st Fret: 19.5mm
• Neck Thickness at 12th Fret: 21.5mm
• Radius: 305mmR

GRX20Z's Switching system diagram

When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in center position, both neck and bridge pickup s are selected. When the switch is in between center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected.

GRX20Z's control diagram

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
