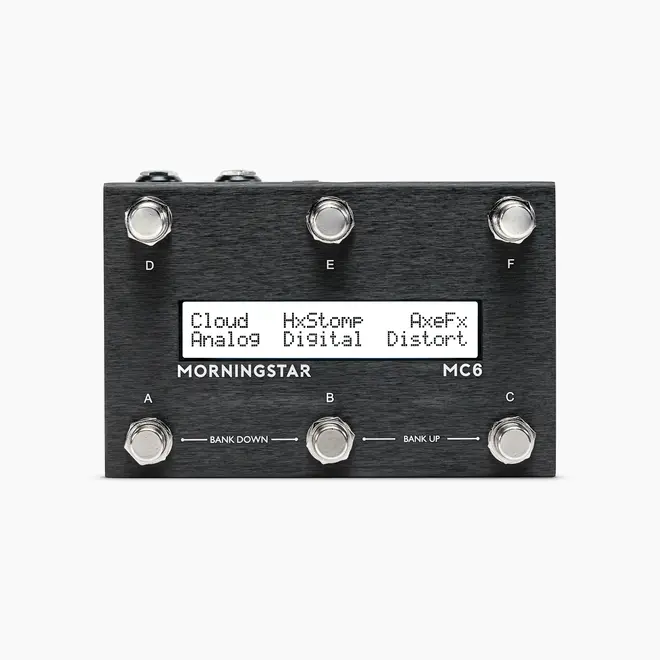

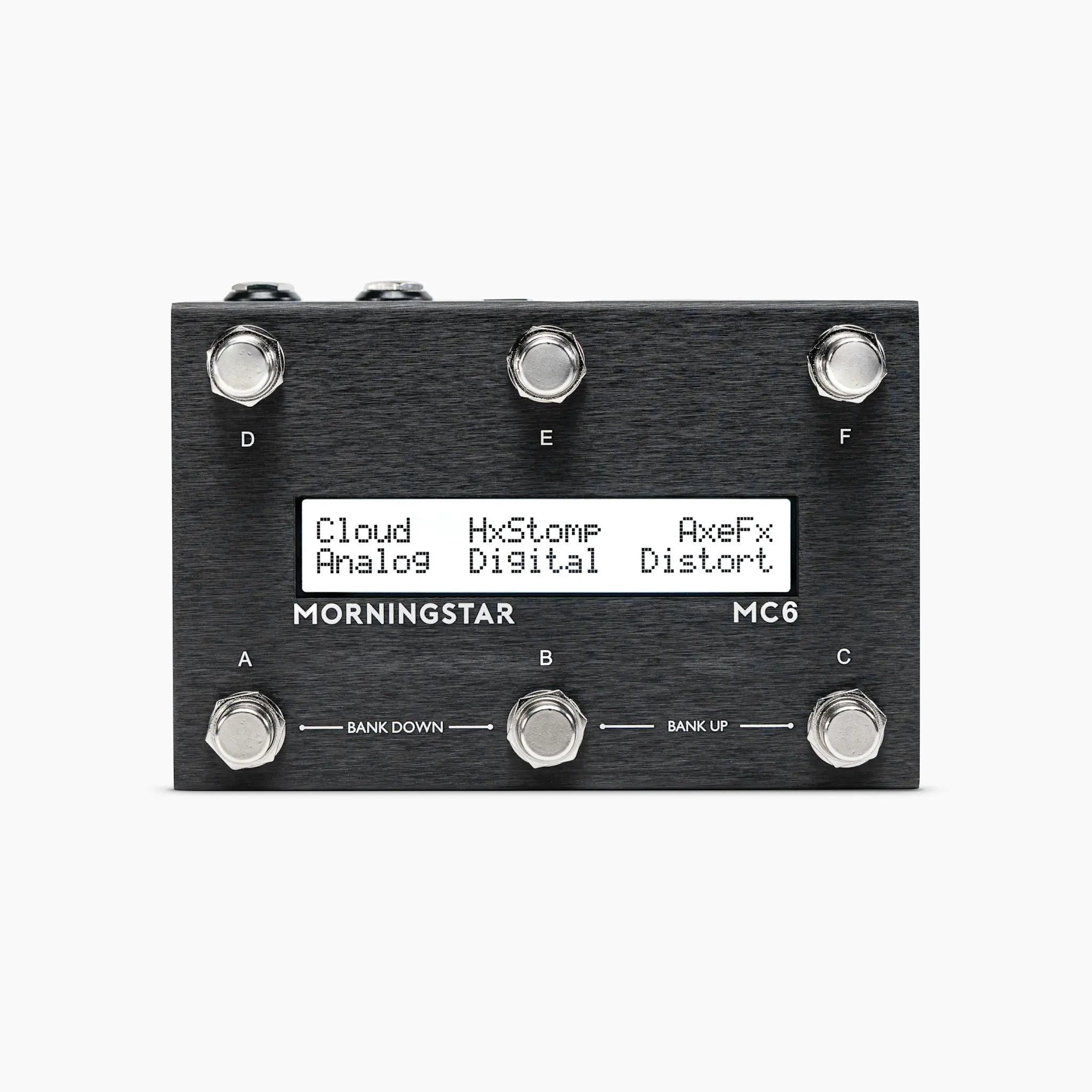

Morningstar MC6 MkII MIDI Foot Controller

Product Description

CONTROL ANYTHING WITH MIDI

The MC6 is a fully programmable controller, capable of sending up to 16 different MIDI messages per switch.

MIDI messages can be sent simultaneously, or triggered separately by performing different actions. This gives you precise and customizable control with just one switch.

With 30 banks of 6 switches in a compact low-profile chassis, the MC6 sits comfortably on any pedalboard, meeting the needs of even the most demanding musician.

UNIVERSAL MIDI CONTROLLER

Morningstar controllers are compatible with any device that accepts MIDI, regardless of brand or model.

This is made possible with the ability to send any type of MIDI message you need. As long as your device accepts MIDI, it will work perfectly with our controllers.

MIDI AND FUNCTION MESSAGE TYPES

Every switch on a Morningstar controller is independently programmable. Choose to send any type of MIDI message including PC, CC, Note, SysEx, MIDI Clock, MMC and many more.

To navigate the controller itself, you can also select function messages to bank up/down, jump to specific banks, engage multiple presets and much more.

MESSAGE STACKING

Send up to 16 different MIDI messages across 16 MIDI channels with each switch.

This allows you to control up to 16 different devices with a single switch. Switches are also able to trigger each other so you can engage any preset you want from any switch across the 30 banks.

ACTION-BASED CONTROL

Send different groups of messages depending on what action you perform.

Assignable actions include Press, Release, Double Tap, Long Press and more.

MIDI CLOCK

Send, receive and relay MIDI clock to keep your effects synced.

You have the option to tap in a tempo on-the-fly or send pre-set BPM.

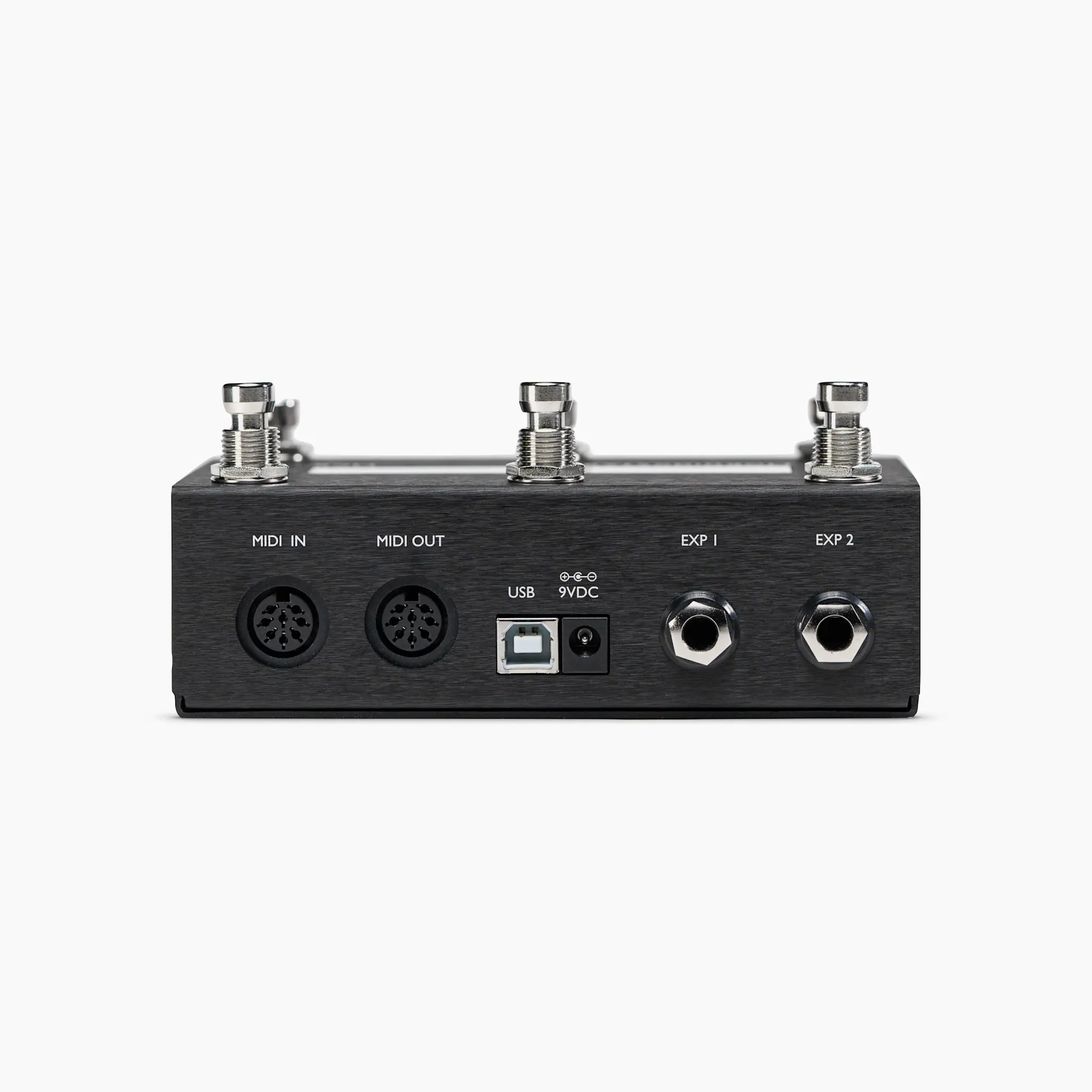

CONNECTIONS

MIDI IN

• Receive MIDI messages to control the MC6, or relay messages through the MIDI OUT port.

MIDI OUT

• Send MIDI messages generated by the MC6, and relay messages received from the MIDI IN port.
• Phantom power the MC6 via MIDI pins 6 & 7.​​

USB

• Send MIDI to your PC, Mac, phone or tablet
• Receive PC, CC, Note and MIDI Clock, and relay them out through the 5-pin and 1/4 inch

MIDI outputs

• 9VDC IN
• Power the MC6 with a 9-12VDC power supply. Requires at least 120mA.
• Can also be buss powered via USB the USB port

OMNIPORTS (EXP 1 & 2)

• Independently set each Omniport to be what you need
• A MIDI output (and thru), aux switch input or expression pedal input​

USB CLASS COMPLIANT AND POWERED

With MIDI over USB, control your favourite DAWs, plugins and music software on your computer or iPad. Easily MIDI map your desired controls to your foot switches with software like Ableton Live and Logic Pro.

Morningstar controllers are also fully USB powered so you don't have to concern yourself with a separate power supply.

EXPRESSION PEDAL CONTROL

Connect an expression pedal for smooth continuous MIDI control with user selectable pedal response curves.

A single expression pedal becomes a multi-function expression pedal with MIDI. Use one expression pedal to control multiple different effect parameters with the ability to select/deselect what messages you want your expression pedal to send on the fly.

Expression pedal message types include Expression CC, Toe/Heel Down CC, Toe/Heel Down PC messages and more.

MULTI-TYPE MIDI OUTPUTS

All Morningstar controllers​ can send MIDI via their 5-pin, TRS and USB ports. This gives you direct connectivity to any MIDI device, without the need for a MIDI box or splitter.

MIDI CC WAVEFORMS

Four independent MIDI Waveform Engines ​allow you to send continuous streams of CC messages. Choose from Saw, Triangle, Sine and Square wave shapes. Set your own minimum & maximum values, sync them to MIDI clock or have them independent. Automated modulation for your pedalboard is now a reality.

EXPANDABLE WITH AUX SWITCHES

Add more switches to a Morningstar controller for more control over your presets and controller navigation.

MORNINGSTAR EDITOR APP

With a powerful and intuitive editor application, programming your Morningstar controller is ​fast and easy.

The Morningstar editor lets you view all your switch and message settings at once, allowing you to quickly make changes and name your switches/banks with great clarity.

You can also backup individual banks or the entire controller to your computer, so you never lose your presets and settings. Even share them with your friends if you like!

Available as a desktop web application (Windows and Mac), mobile web application (Android and iOS) and an iOS app on the App Store.

Connect with a USB cable or wirelessly with a Bluetooth MIDI adaptor (sold separately).

MIDI DICTIONARY

Nobody likes reading manuals. That is why we created the MIDI Dictionary, containing all parameters, functions and MIDI specifications of the most popular MIDI devices. And we embedded it into our Device Editor for maximum convenience.

Simply select your device brand and model, then use the search bar to find the function you want to control. Then just use the dedicated copy and paste buttons to add your desired MIDI message to your switch. It's that easy!

SONG & SET LISTS

Create song and set lists, and easily navigate through them using the Bank Jump feature. This allows you to use any switch to jump to any bank on your controller. On top of that, the preset/bank Copy, Paste and Swap functions make managing songs and set lists a breeze.

DUAL-PAGE BANKS

Each of the 30 banks has 2 pages. By default, the first set of switch names are displayed on the screen. When you toggle page, the second set of switch names will be displayed. This effectively doubles the number of preset slots you have in each bank.

TECH SPECS

Dimensions:

• 145 x 95 x 45 mm

Powered by any of the following:

• 9-12V DC center negative (min 120mA)
• USB power
• 9-12V AC/DC MIDI phantom power via MIDI output pins 6 & 7

Hardware:

• Anodized aluminium enclosure
• Soft touch foot switches
• 24 x 2 character LCD display

I/Os:

• 1 x 5-pin MIDI Out/Thru
• 1 x 5-pin MIDI In
• 1 x Class Compliant USB Type B (receives buss power, sends & receives MIDI)
• 2 x 1/4" Omniports (expression pedal in, aux switch in or MIDI out)
