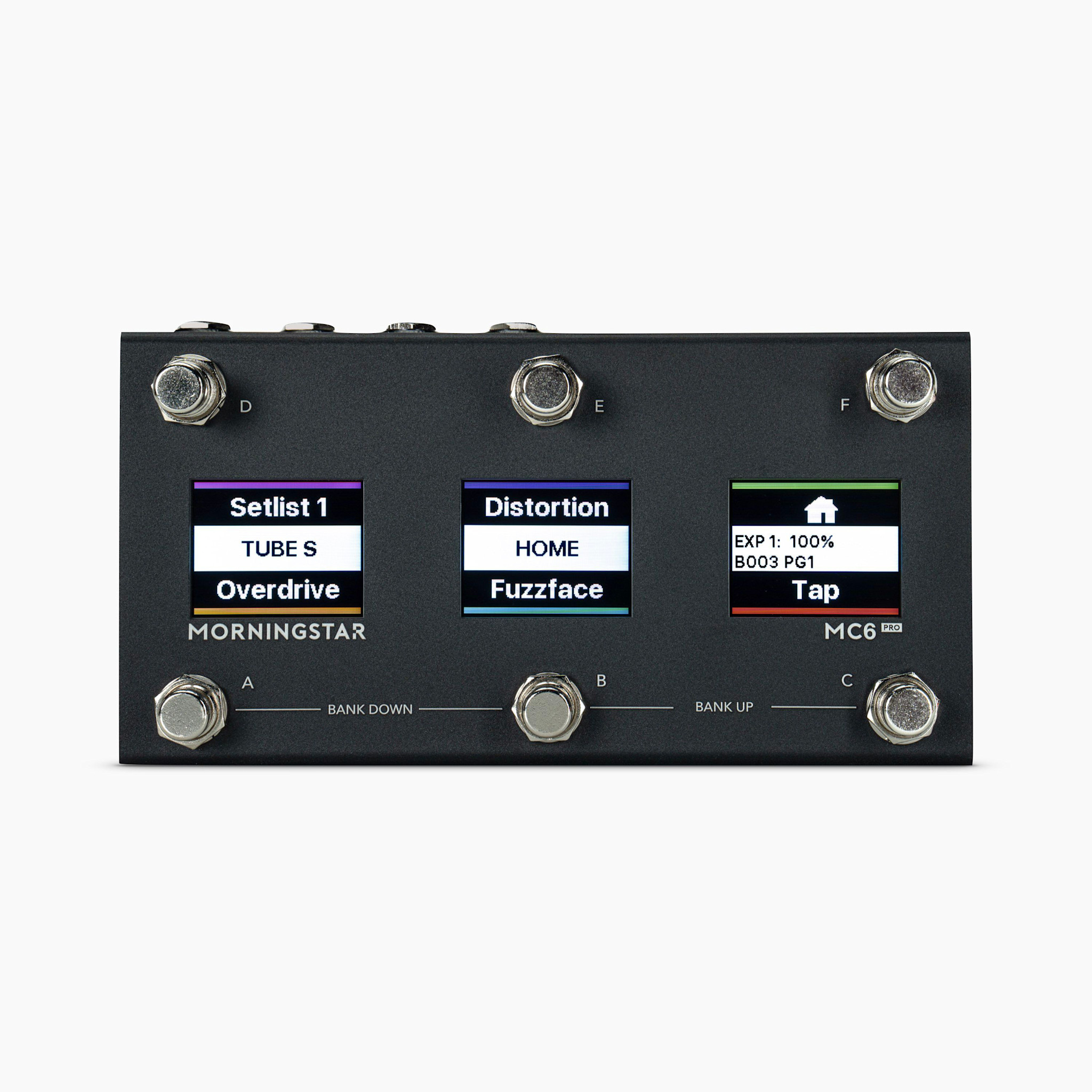

Morningstar MC6 PRO MIDI Foot Controller

Product Description

Beyond what a MIDI controller can do.

With a massive display upgrade, an entirely new processor and a never-before-seen array of connections, MC6 PRO is by far the most powerful and user-centered MIDI controller yet.

Introducing Color Strips. An innovative and simple way to color code your presets.

Enhanced visual feedback with three full color displays. Choose from a palette of delightful colors, for a controller that's uniquely yours. Color Strips can dim or brighten to show the state of effects and presets.

Variable font size for easy viewing from any distance.

Font size automatically adjusts according to the length of each preset name. You can also set a maximum size limit for greater uniformity.

Customizeable background and text colors.

Change preset background and text colors to reflect toggle states, or simply to take personalization to the next degree.

Creativity without constraints.

128 banks of 4 pages, 6 presets per page

With more than 3,000 presets at your disposal, you'll never run out of space again. Creativity knows no bounds. Neither should your controller.

Each preset sends up to 32 messages

The most comprehensive array of connections ever.

Control a wider variety of devices than ever before.​

Five-pin MIDI, In and Out/Thru

While TRS MIDI has gained much popularity in recent years, DIN5 is still the most widely used MIDI connector today.

Connect with ease of mind, to devices modern and classic.

USB-C Device and Host

Via the Device port, connect to your computer and mobile devices to control your DAWs and software. MC6 PRO can be bus powered here.

With the Host port, connect directly to other MIDI USB devices such as the Source Audio C4 Synth and Line 6 Pod Go without the need for a MIDI USB host, which is costly and cumbersome.

Omniports

Four Omniports can function as TRS MIDI Outputs, Expression Pedal Inputs or Aux Switch Inputs depending on your needs.

Each port can be set independently to offer you the most utility for your setup.

Omniports are proof, that you can have it all.

Relay Ports

Control devices that employ relay switching even if they don't have MIDI.

This includes amps that support channel switching, delay pedals with tap inputs, Strymon pedals with Favorite switch inputs and JHS pedals with Red Remote inputs.

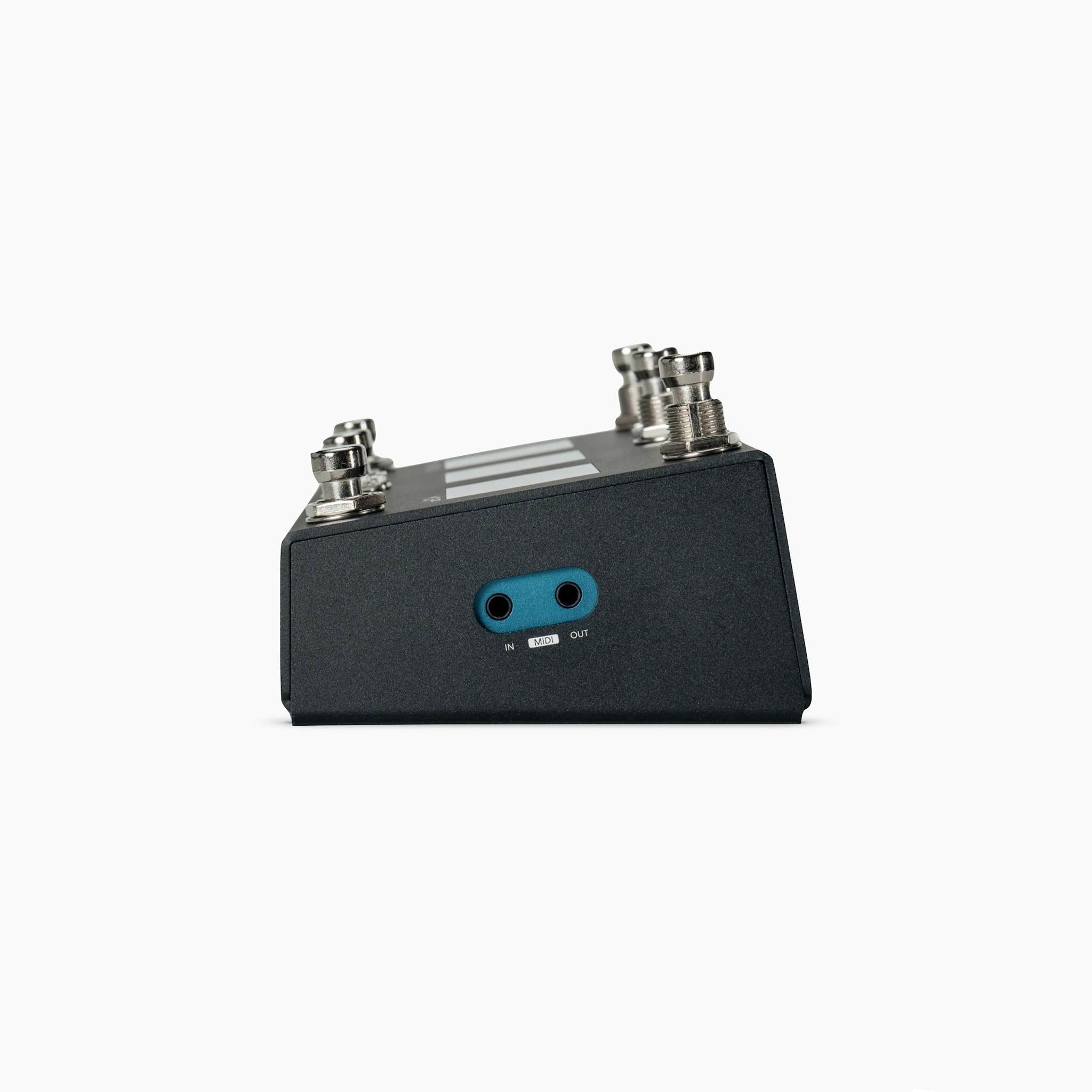

3.5mm TRS MIDI, In and Out/Thru

Designed for maximum convenience when using a wireless MIDI adaptor like the CME WIDI Jack, these ports transmit data and also power the adaptor.

Simply plug and play, for an effortless wireless MIDI experience.​​​​​​​​​​​​

The Morningstar Editor you know and love — now even better with a new and improved interface.

Available on desktop and mobile.

TECH SPECS

Enclosure Dimensions

• 180 x 100 x 50 mm

Hardware

• Aluminium enclosure
• 3x Color LCD Display
• 6x soft touch foot switch

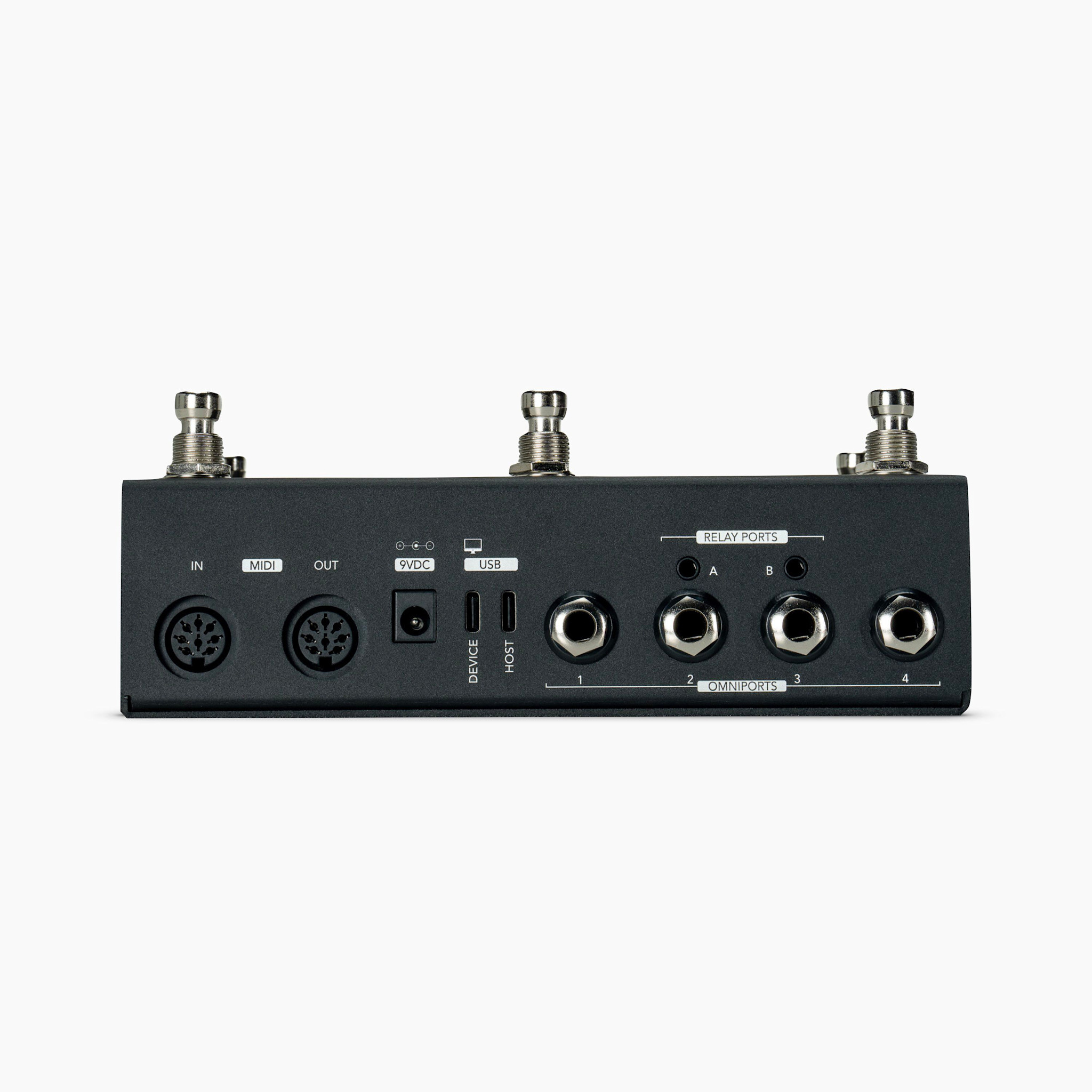

I/O Ports

• 1x 5-pin MIDI Out
• 1x 5-pin MIDI In
• 1x USB Type C (Device)
• 1x USB Type C (Host)
• 4x Omniport
• 2x Relay Switching Port
• 1x 3.5mm TRS MIDI Out
• 1x 3.5mm TRS MIDI In

Memory

• No. of banks: 128
• Pages per Bank: 4
• Presets per Page: 6
• Total number of Presets: 3,072

Power Requirements

• 9-12V DC center negative
• Minimum 250mA
• Minimum 350mA if using Relay Ports
• USB Bus Power (330mA current draw)
• Phantom Power via MIDI Out pins 6 & 7
