Morningstar ML5 Loop Switcher

Product Description

LOOP SWITCHING MADE SIMPLE

The ML5 lets you to use your MIDI controller to control your non-MIDI pedals, giving you simultaneous control of both your digital and analog effects.

Easily select which of your non-MIDI pedals are included or excluded from each of your MIDI presets and recall loop combinations with the touch of a switch.

100% ANALOG

ML5 maintains a fully analog signal through the entire audio path.​​

TRUE BYPASS

True bypass relays ensure that your tone stays true.​​

EASY PROGRAMMING

Learn mode lets you quickly and easily set which loops are engaged/bypassed in each of your presets, and recall the combination with a Program Change (PC) message.

Each loop can also be independently toggled on/off with a Control Change (CC) message.

SILENT SWITCHING

Muted switching mutes then smoothly increases the volume of selected loops during switching. This allows for noise-free switching even when engaging/bypassing higher gain, noisier pedals.

You can also customize the duration for which the loops are muted.

COMPACT DESIGN

Every inch of space in the ML5 is fully utilised to keep it small and sleek, so that it takes up as little space as possible in your rig.

TECHNICAL SPECIFICATIONS

Dimensions:

• 165 x 60 x 54 mm

Power Requirements:

• 9-12V DC center negative (min 200mA)

Hardware:

• Anodized aluminium enclosure

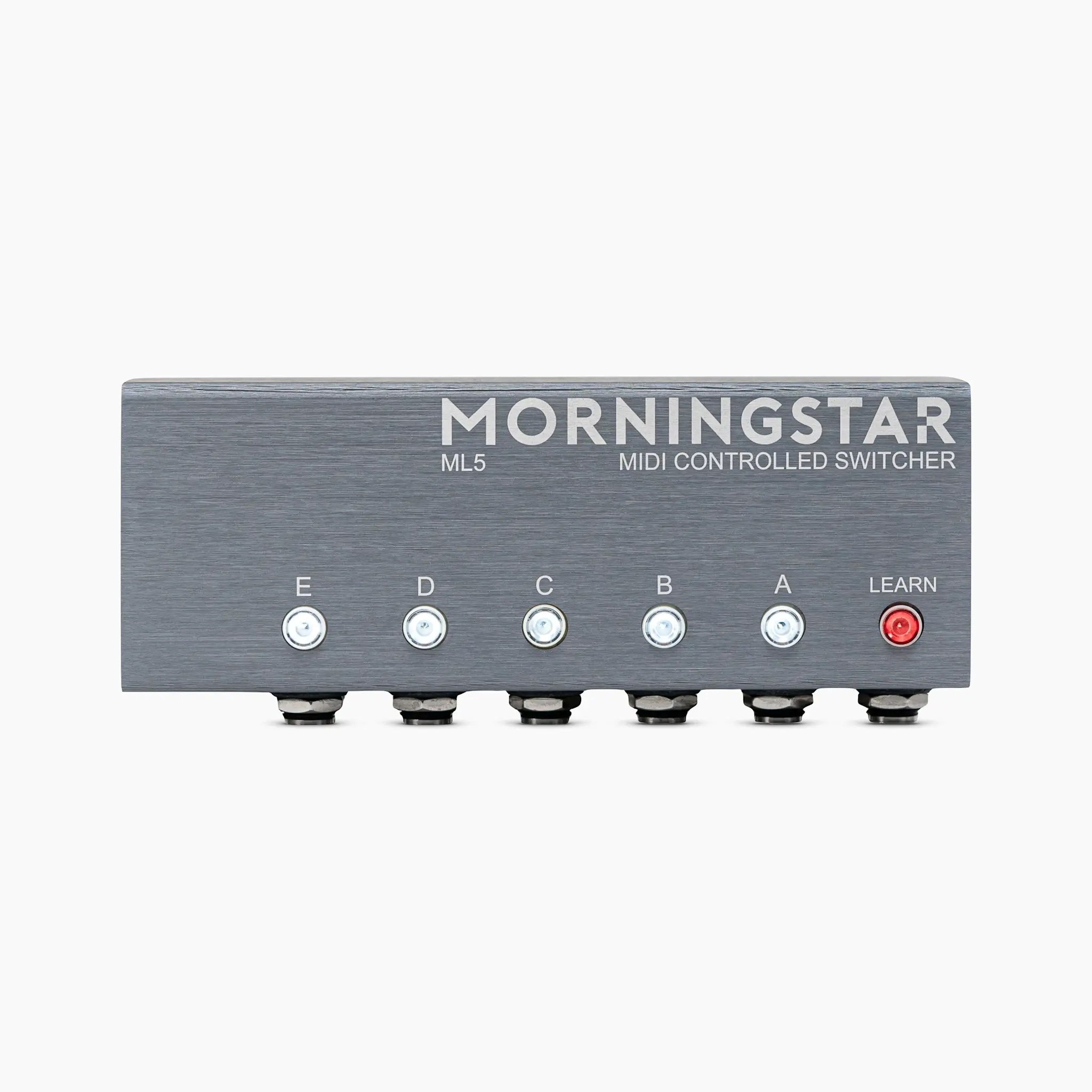

• 5 x Loop Status LED
• 1 x Learn Mode Status LED​

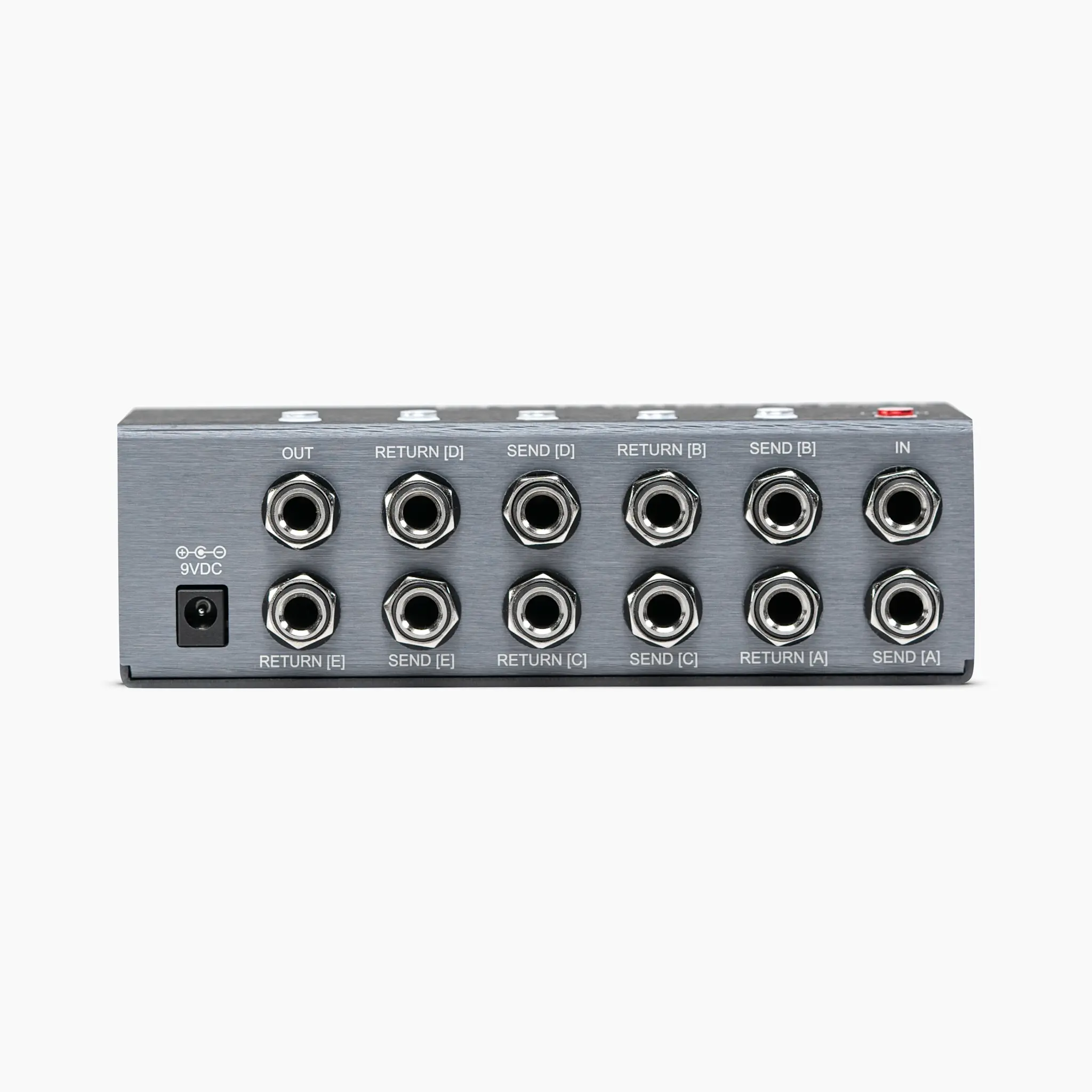

I/Os:

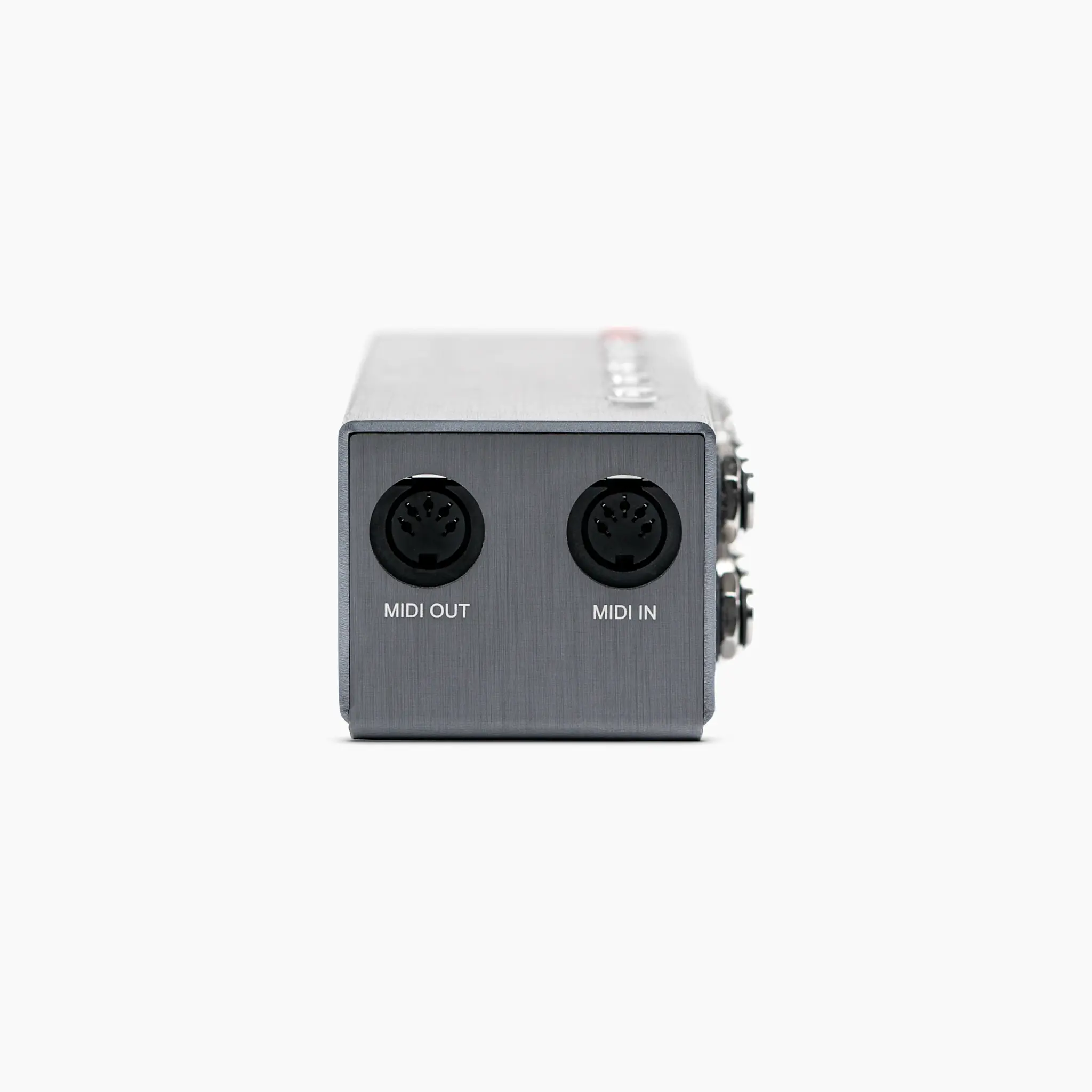

• 1 x 5-pin MIDI In
• 1 x 5-pin MIDI Thru
• 1 x Audio Input
• 5 x Loop Send
• 5 x Loop Return
• 1 x Audio Output
