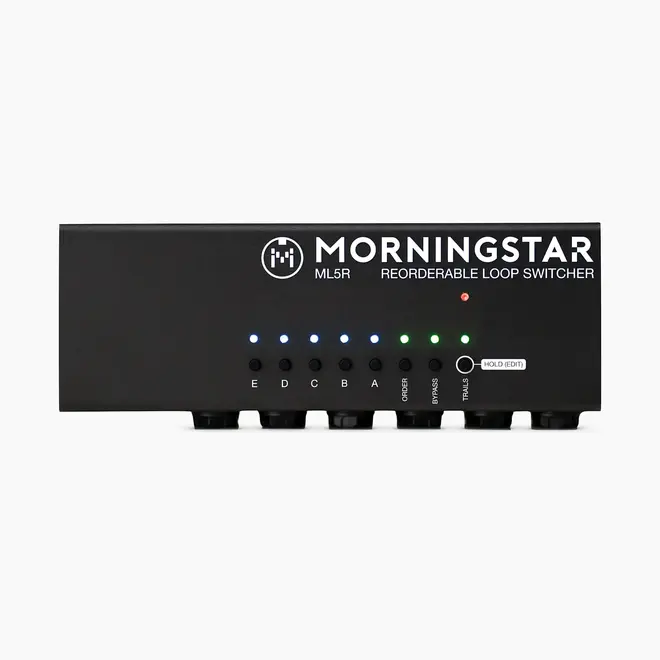

Morningstar ML5R Mono Reorderable Loop Switcher

Product Description

Maintain order. Or not.​​

ML5R is a reorderable loop switcher that redefines your approach to audio effects. Experience entirely new sounds from your existing effects - just by switching up their order.

Its sleek, intuitive interface enables you to switch the order of your effects quickly, whenever you want.

Fully Analog.

ML5R maintains an analog audio signal path throughout the entire device.

No editor required.

Everything you can do on ML5R, you can do on ML5R​.​

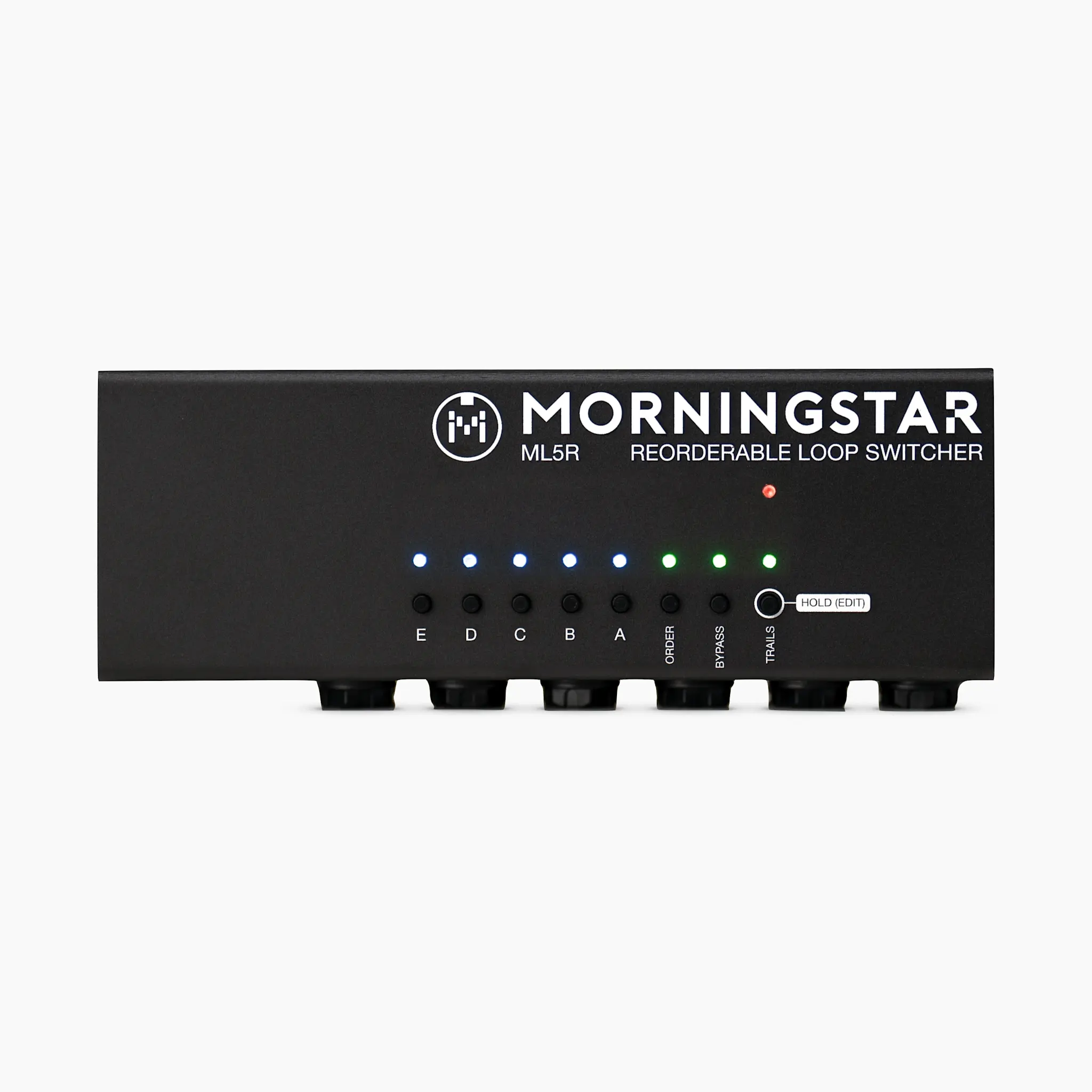

Set loop Order, Bypass and Trails with just a few simple switch presses.​​

Set Bypass.

Select the loops that you want engaged when you recall an ML5R preset. In the example below, loops A, C and E are engaged while the rest are bypassed.

Loops can also be engaged or bypassed individually after a preset has been recalled.

Save.

Save your custom loop order, bypass states and trails as a preset in any of the 128 user slots.

Simply send ML5R a Program Change message from 0 to 127 to instantly recall your desired preset.​​

Full MIDI Capabilities.

​Scroll through presets, toggle individual loops on/off, rearrange loop order, control master mute and more. Take full control of ML5R with your MIDI controller.

If you use a Morningstar MIDI controller, a dedicated ML5R message type allows quick and easy access to all functions without needing to refer to any MIDI chart.

TECH SPECS

Dimensions

• 169 x 58 x 58 mm​
• 400g​​

​​Memory

• No. of presets: 128

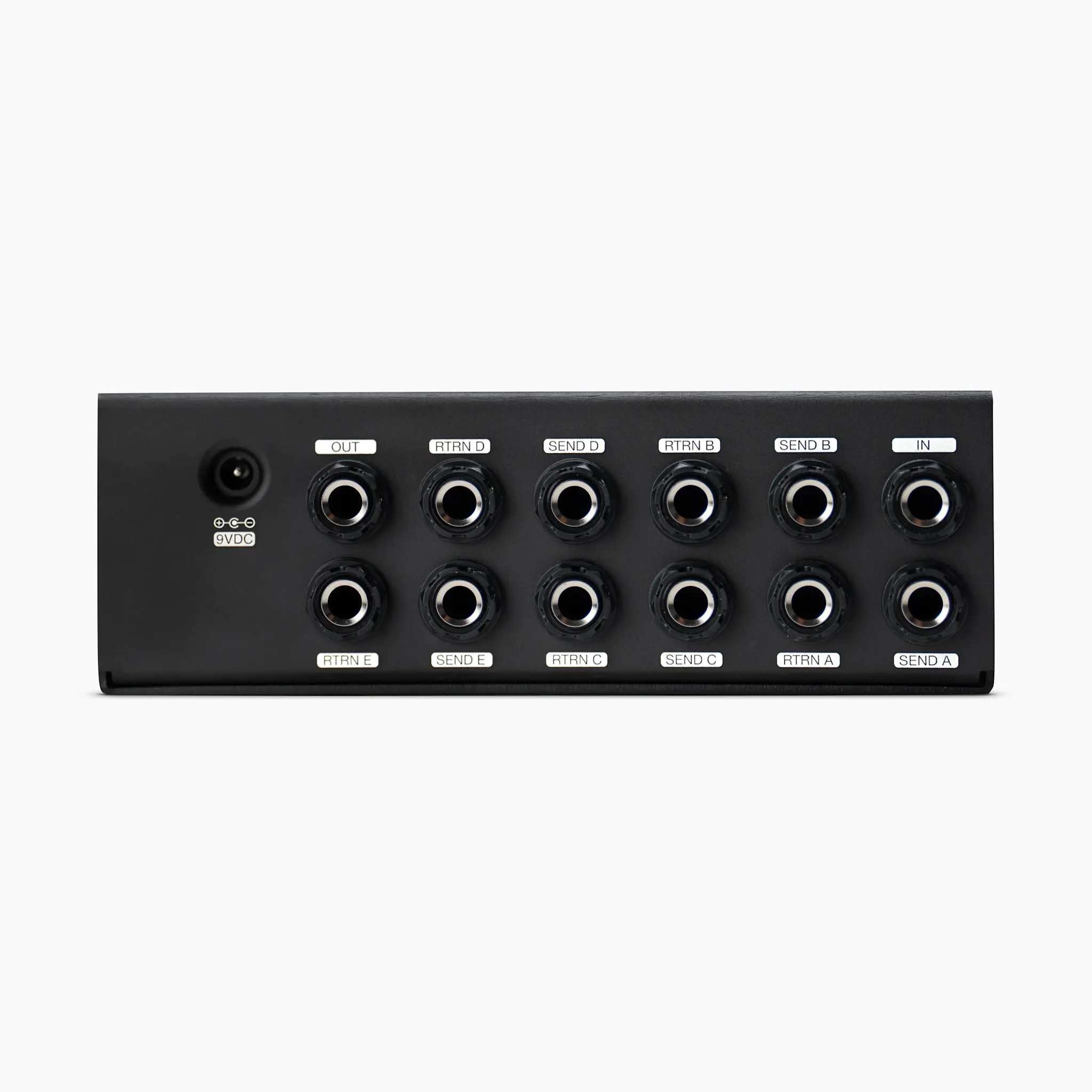

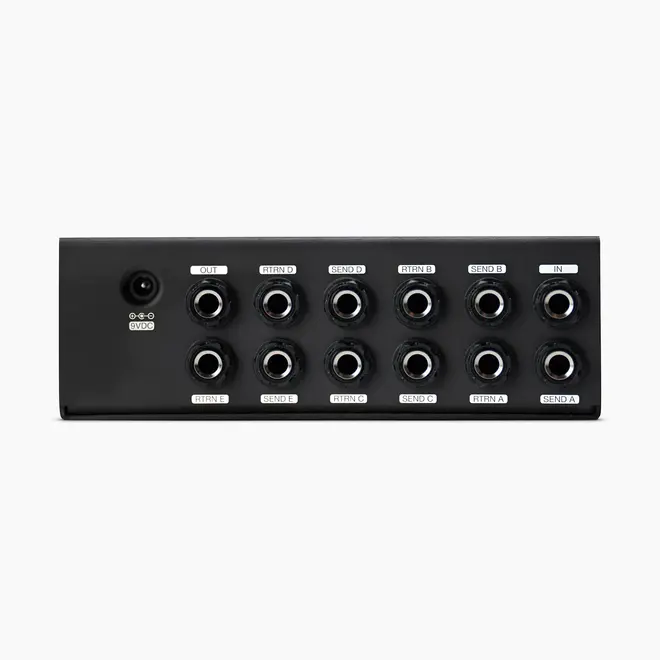

I/O Ports (buffered)

• 1x Audio In
• 1x Audio Out
• 5x Sends (mono)
• 5x Returns (mono)

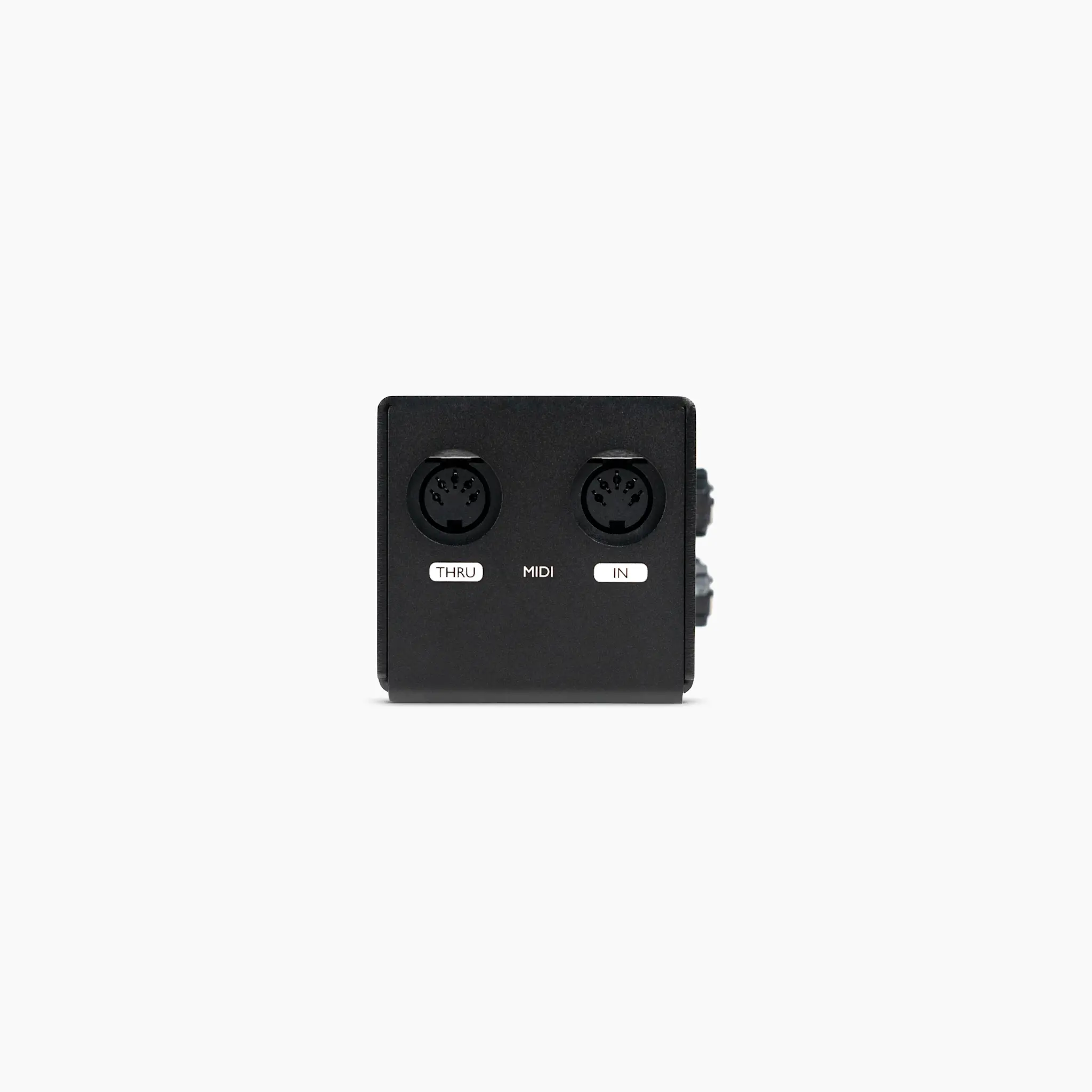

• 1x 5-pin MIDI In​​​​
• 1x 5-pin MIDI Thru

Impedance

• Input/Returns: 1M ohm
• Output/Sends: Approx 100 ohm

Power Requirements

• 9-18V DC center negative
• Minimum 160mA

Max I/O level

• 5V peak to peak (with 9v power supply)
• 13V peak to peak (with 18v power supply)
