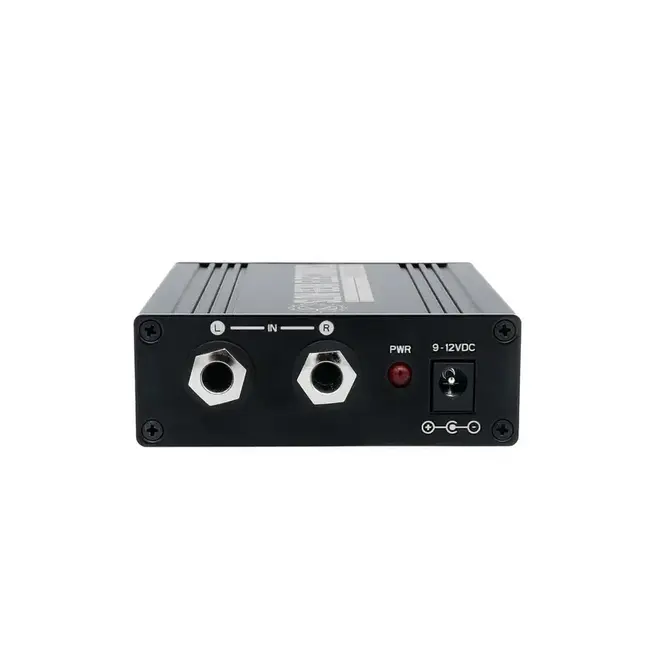

Slow Gear Electronics MAID Micro Active Iso/DI

Product Description

For Digital Amp Modeling Pedals

Electronically converts from TS unbalanced to XLR balanced for connecting modeler pedals such as Iridium, Dream/Ruby/Woodrow, HX Stomp or ACS1 to the stage snake.

Smallest Size

• 3.65 x 3.25 x 1.13 inches (93 x 83 x 29 mm)
• Fits under Mono Lite and Lite + as well as PT Nano series boards.

Ready for The Stage

Allows ground lifting. Protects your modeler pedal from accidental phantom power damage. Can also be used as a stereo direct box.

Audio Performance

• Max input is 6Vrms (9V power) or 8Vrms (12V power)
• Input impedance - 1 Megaohm
• Output impedance - 100 Ohm
• +0 dB Gain, THD@5V - 0.0009, Noise - <6uV, Crosstalk >92dB

Low Power Requirements

• Accepts 9Vdc to 12Vdc
• 40mA draw
• Standard (center pin negative) power on a 2.1 mm x 5.5 mm jack (Boss-style)
