Voodoo Lab Pedal Power X4-18V Expander Kit

Product Description

Pedal Power® X4-18V Expander Kit adds two 9V and two 18V isolated DC outputs to compatible Voodoo Lab® power supplies. Its ultra-compact size makes adding on to your existing system quick and easy, mounting to the even most space-challenged pedalboards. The innovative hybrid DC transformer design of Pedal Power X4 combines exotic components, linear regulation, and computer-optimized filtering to establish industry-leading audiophile quality power that unveils the hidden sonic potential of your rig.

SPECIAL NOTE: The X4 Expander Kit requires a 12V DC power source to operate. Compatible power sources include Pedal Power 3 series X-LINK expansion ports or any Pedal Power 12V DC output of 400mA or more. For use as a stand-alone power supply, choose the full version Pedal Power X4-18V.

Pedal Power X4-18V Expander Kit Features

• Adds four (4) isolated outputs to compatible Pedal Power
• 2 x 9V @ 500mA + 2 x 18V @ 200mA
• Powers directly from Pedal Power 3 X-LINK or any 12V out of 400mA or more
• Ultra-compact, lightweight design for easy mounting to any pedalboard
• Advanced filtering and linear regulation ensure noise-free audiophile-quality performance
• Delivers clean, consistent power even with poor AC line conditions
• Works with battery-operated and high current DSP effects
• Compatible with Pedal Power 3, ISO-5, Digital, 4X4, and MONDO

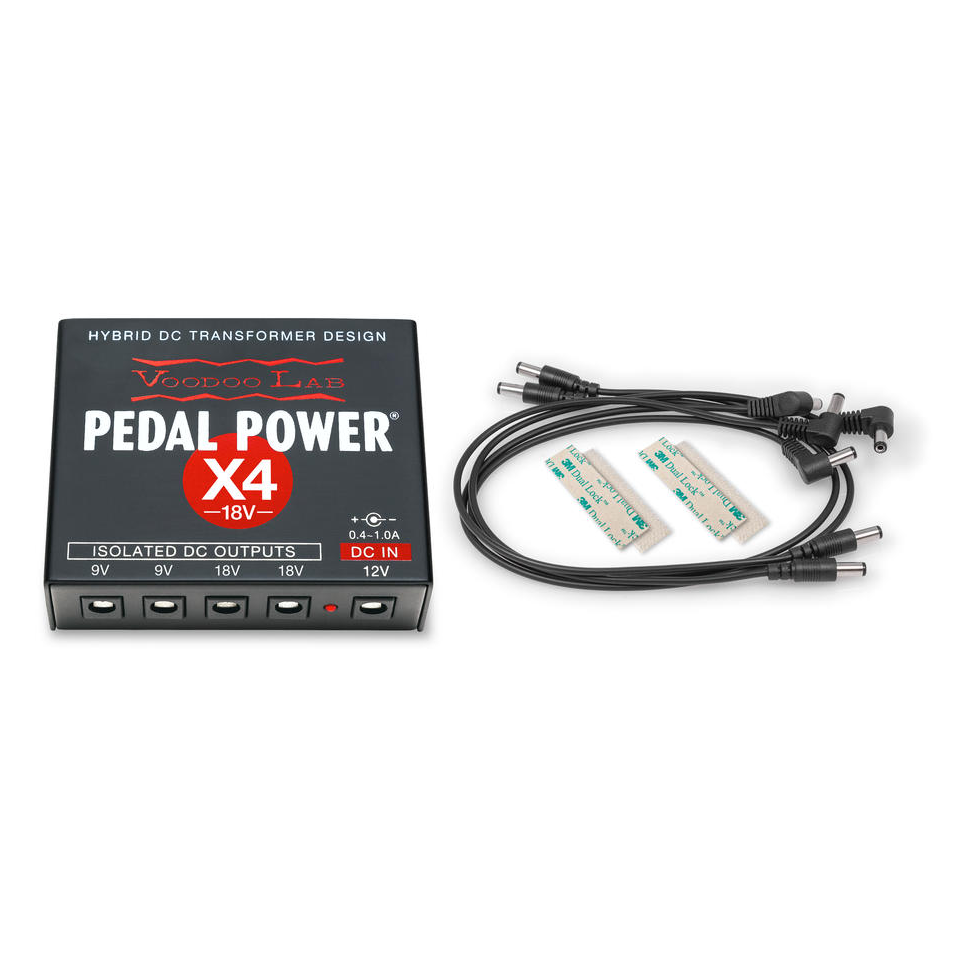

• Includes power cables and 3M Dual Lock for mounting
• Made in the U.S.A.

Pedal Power X4-18V Expander Kit Specifications

Input

• 2.1mm barrel jack - center-negative polarity (12V DC only)

Output

• 5.5 x 2.1mm barrel connectors – center negative
• Short circuit protected

Special Features

• Hybrid DC transformer design
• Powers from any 12V DC source 400-2000mA

Included Cables

• 2 x PPBAR-RS (18”), 2 x PPBAR-RS12 (12”), 1 X PPBAR (18”)

Physical

• Dimensions: 3.38” x 2.75” x 1” (86 x 70 x 25 mm)
• Weight: 4 ounces (114g)

Warranty

• 5-year warranty in North America. Other regions contact your country's distributor for warranty details.
