Product Description

SUPER POWERED HIGH FIVE!

Partnering with CIOKS, the Hi5 MOD will power-up your Templeboard. Provide power for up to five pedals or link multiple units for all the power you could ever need.

FEATURES

Clean Power

Five incredibly clean high-current isolated channels. (660ma per channel)

Compatible

Capable of powering any commercially available DC pedal. 8 Flex cables included.

Compact Lightweight Design

Weighs only 5.6oz and mounts perfectly to the Modular Endocarp of your Templeboard.

5-year Warranty

Available worldwide. Conditions apply, Obviously.

EASY INSTALL

All Temple MODs install easily with two screws.

4 VOLTAGE OPTIONS

Change the voltage for any of the five outputs. DIP switch configurable.

MORE MODS, MORE POWER

The 24V DC link outlet allows you to connect multiple Hi5 MODs together and gain more isolated outputs.

SPECS:

Power Draw at Full Load

36W

Output

9V - 660mA | 12V - 500mA | 15V - 400mA | 18V - 330mA

Included Cables

3x Flex Cable 1030 (5.5/2.1mm, 12", black, centre negative)
2x Flex Cable 1050 (5.5/2.1mm, 20", black, centre negative)
1x Flex Cable 2050 (5.5/2.1mm, 20", red, centre positive)
1x Flex Cable 4050 (5.5/2.5mm, 20", green, centre positive)
1x Flex Cable 1035 (Split Flex, 5.5/2.1mm, 12"+20", black, centre negative)
1x Flex Cable 1533 (3-way daisy chain, 5.5/2.1mm, 12"+12"+20", black)

Features

Five incredibly clean high-current isolated channels. (660ma per channel)
Change the voltage for any of the five outputs (9, 12, 15, or 18V)
Link multiple HI5's together to expand your pedalboard

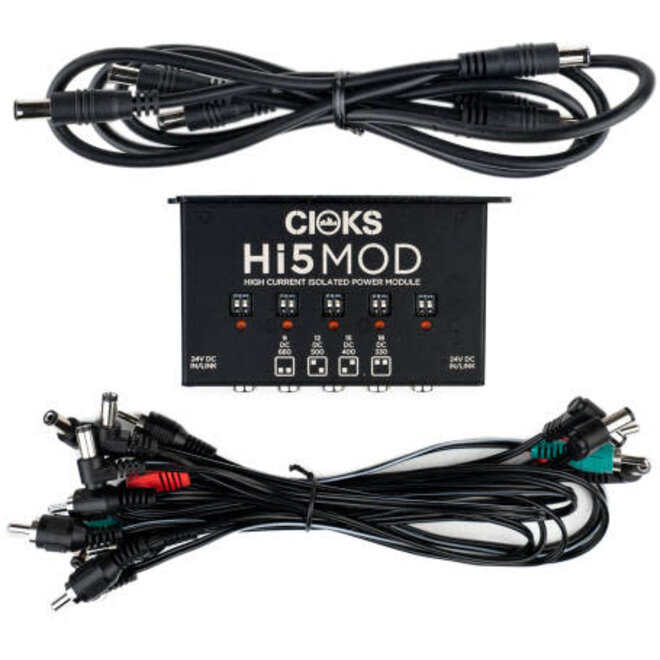

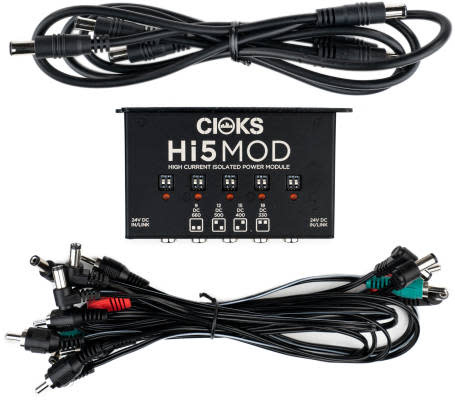

Temple Audio Temple Audio MOD-Hi5L CIOKS High Current Isolated Power Module

Temple Audio MOD-Hi5L CIOKS High Current Isolated Power Module
