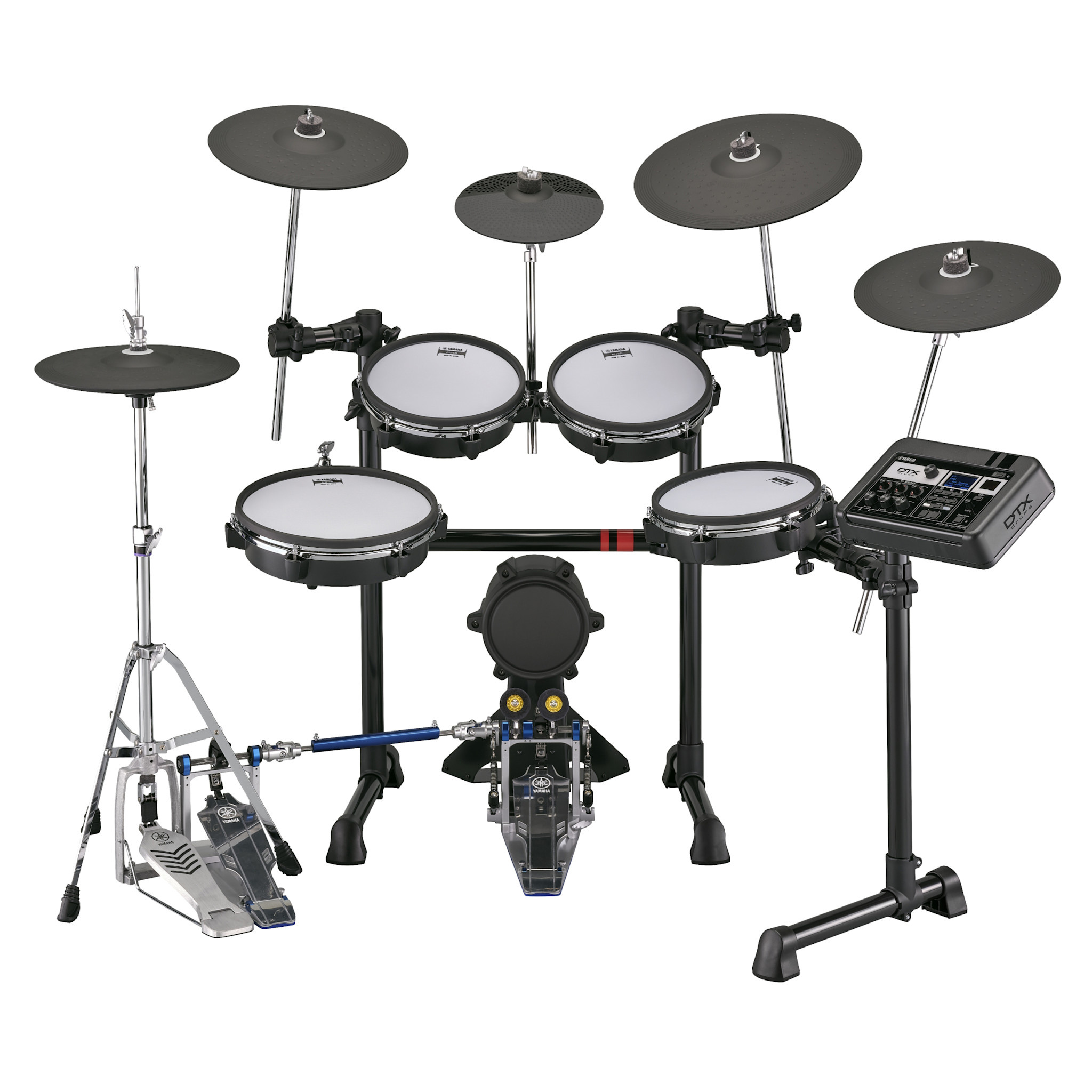

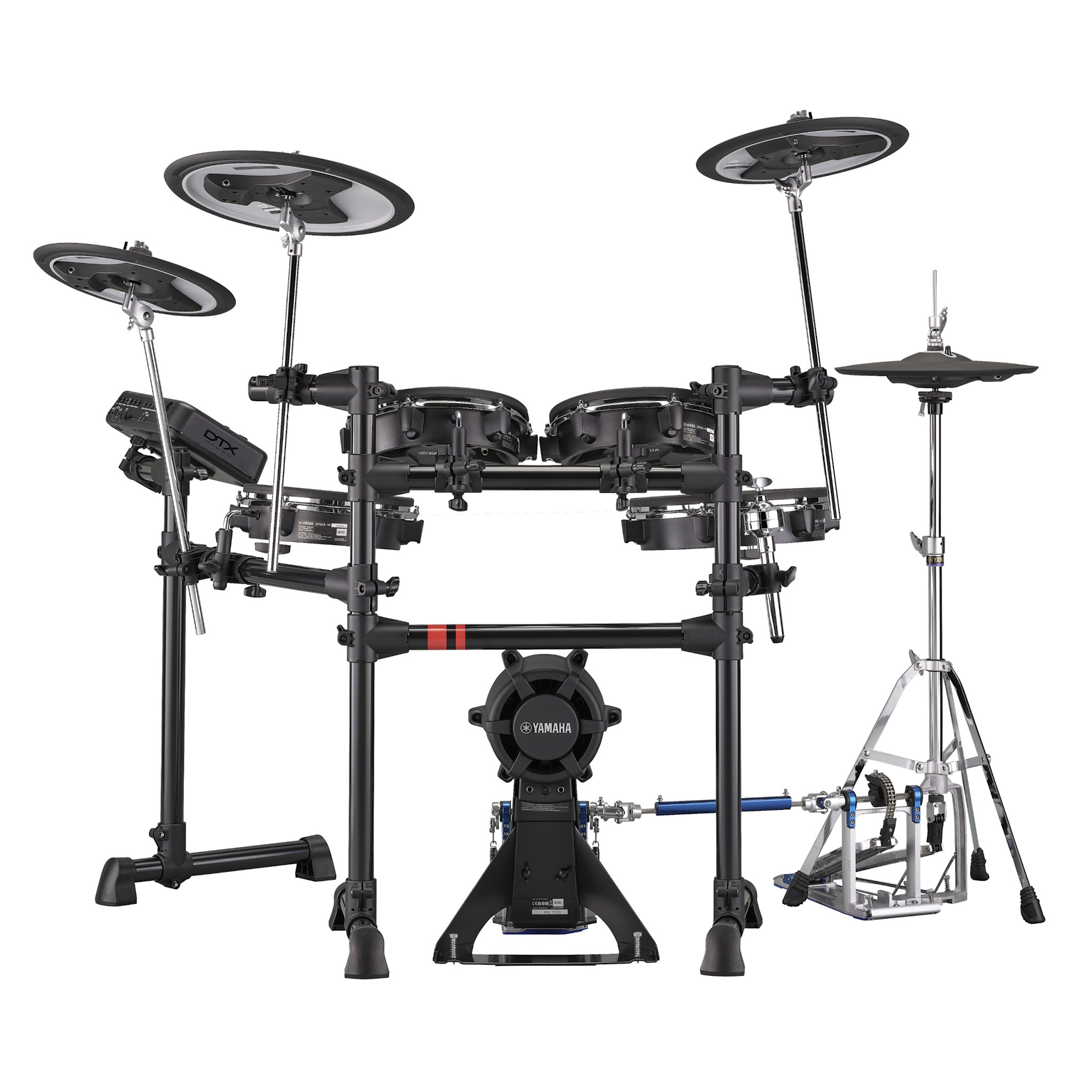

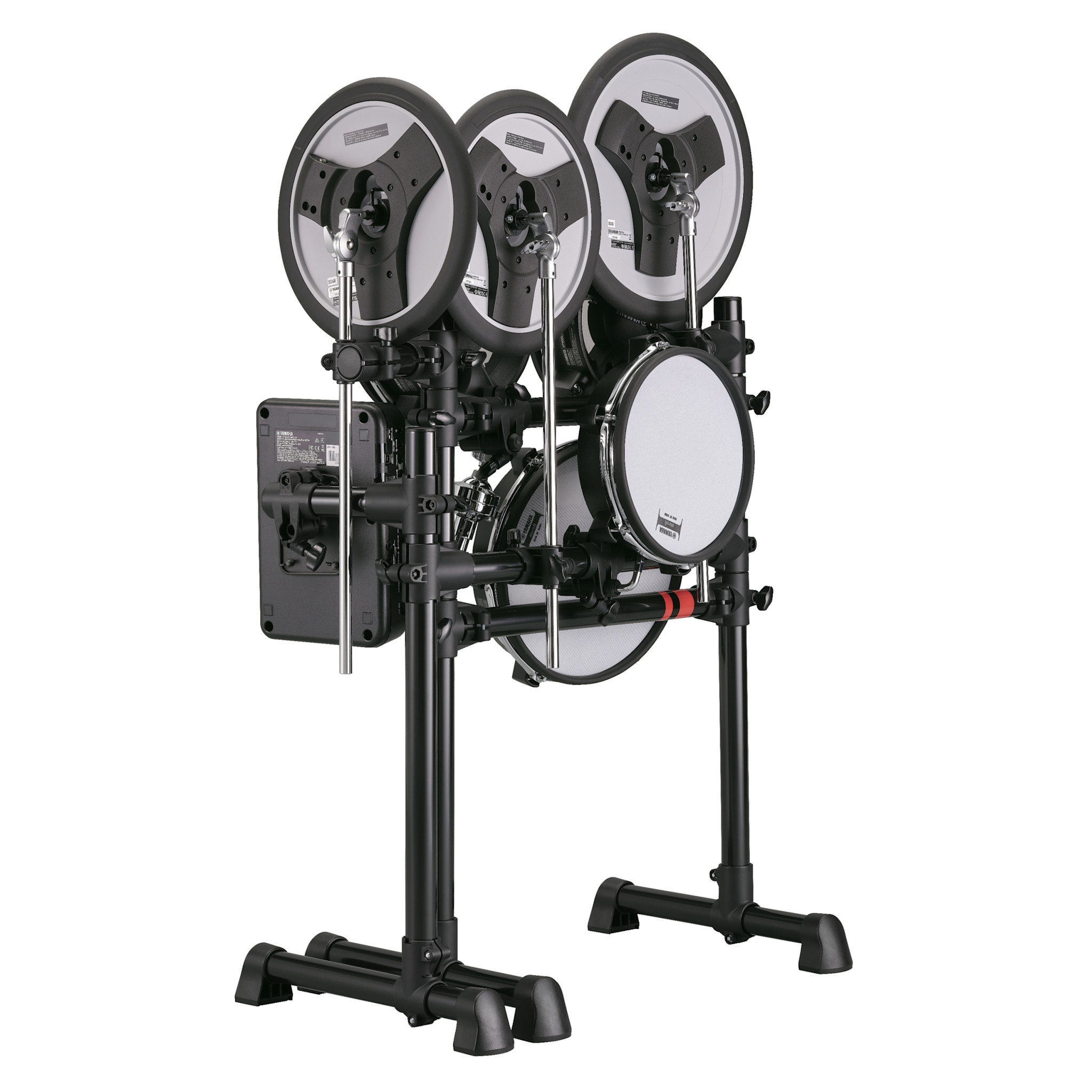

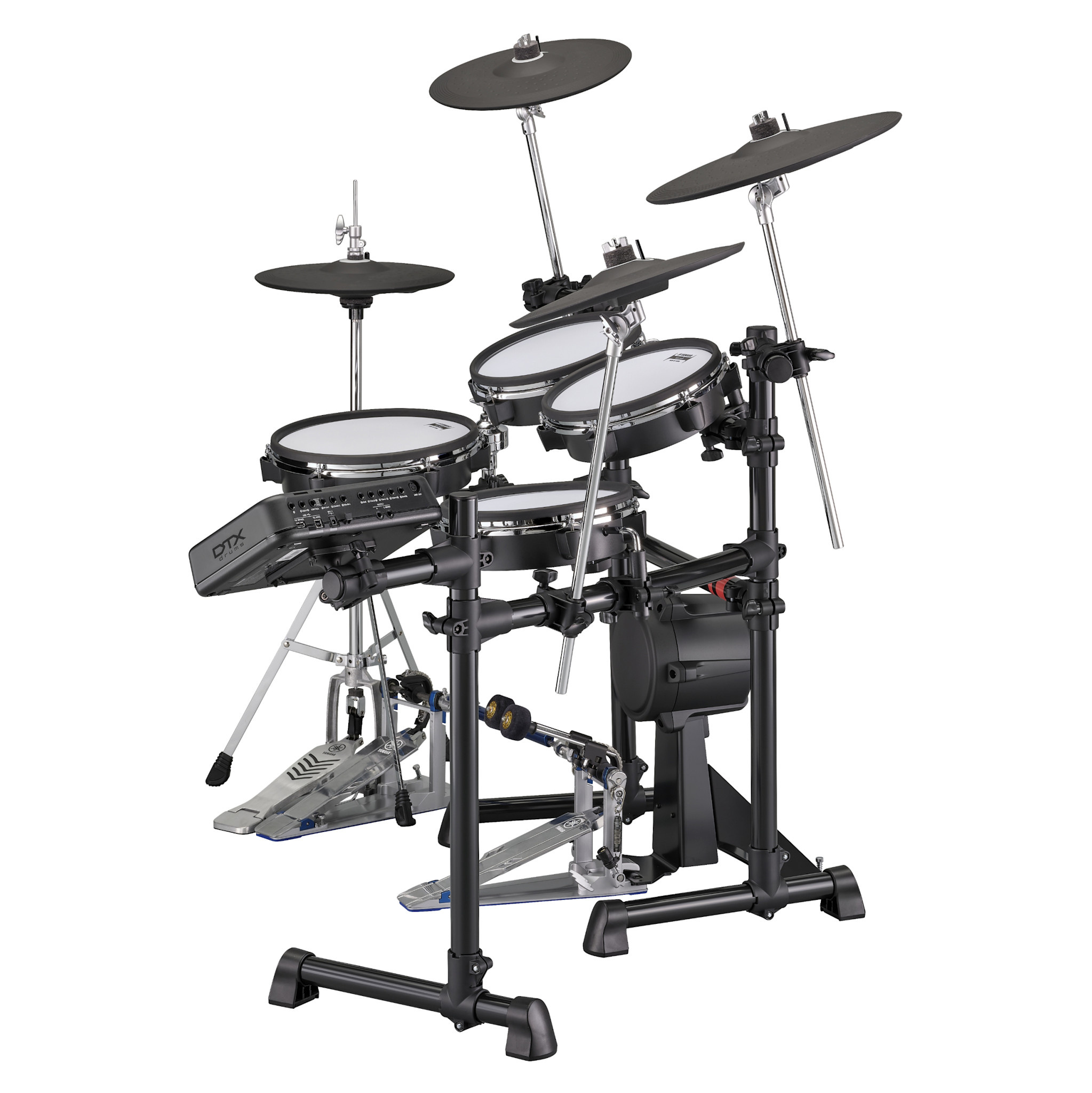

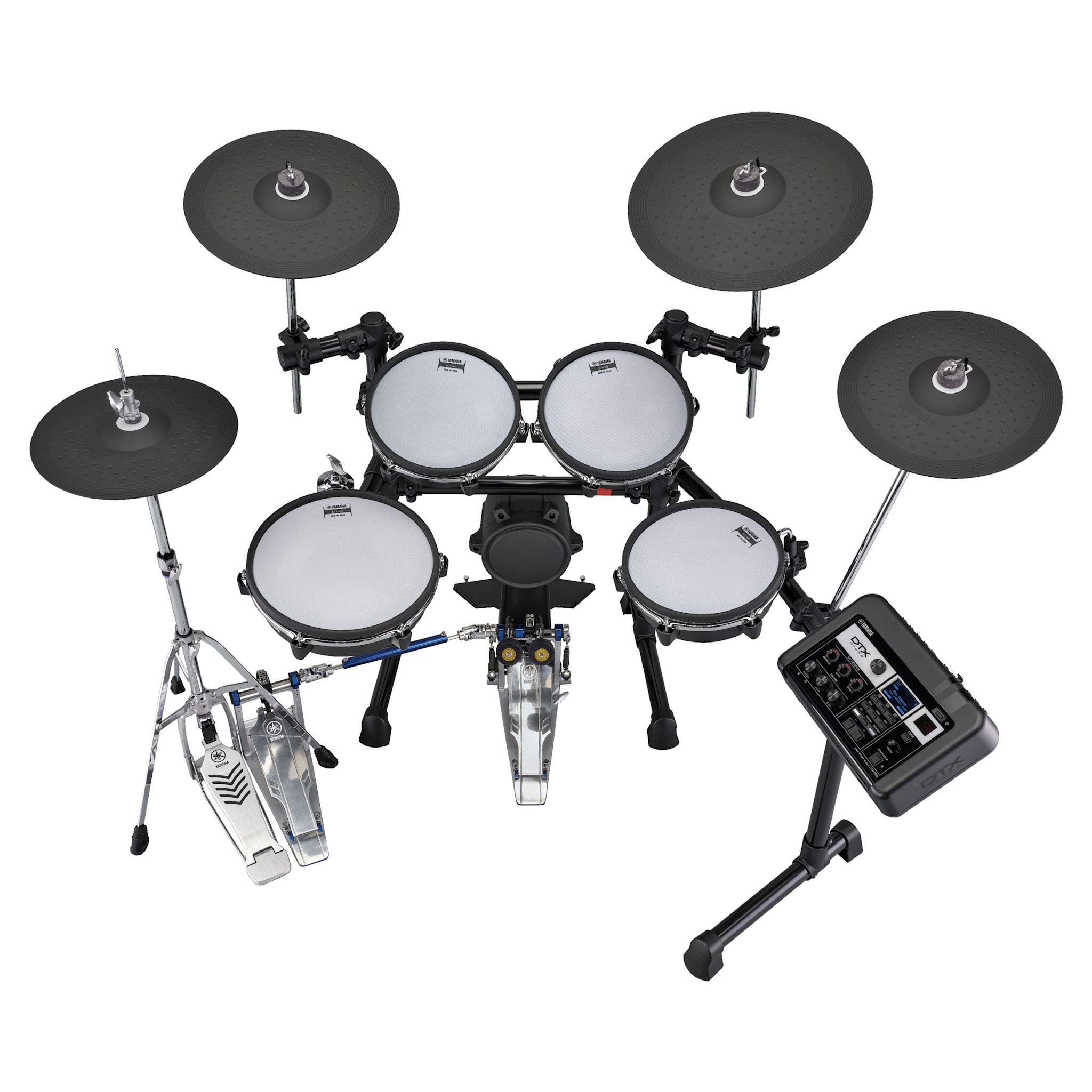

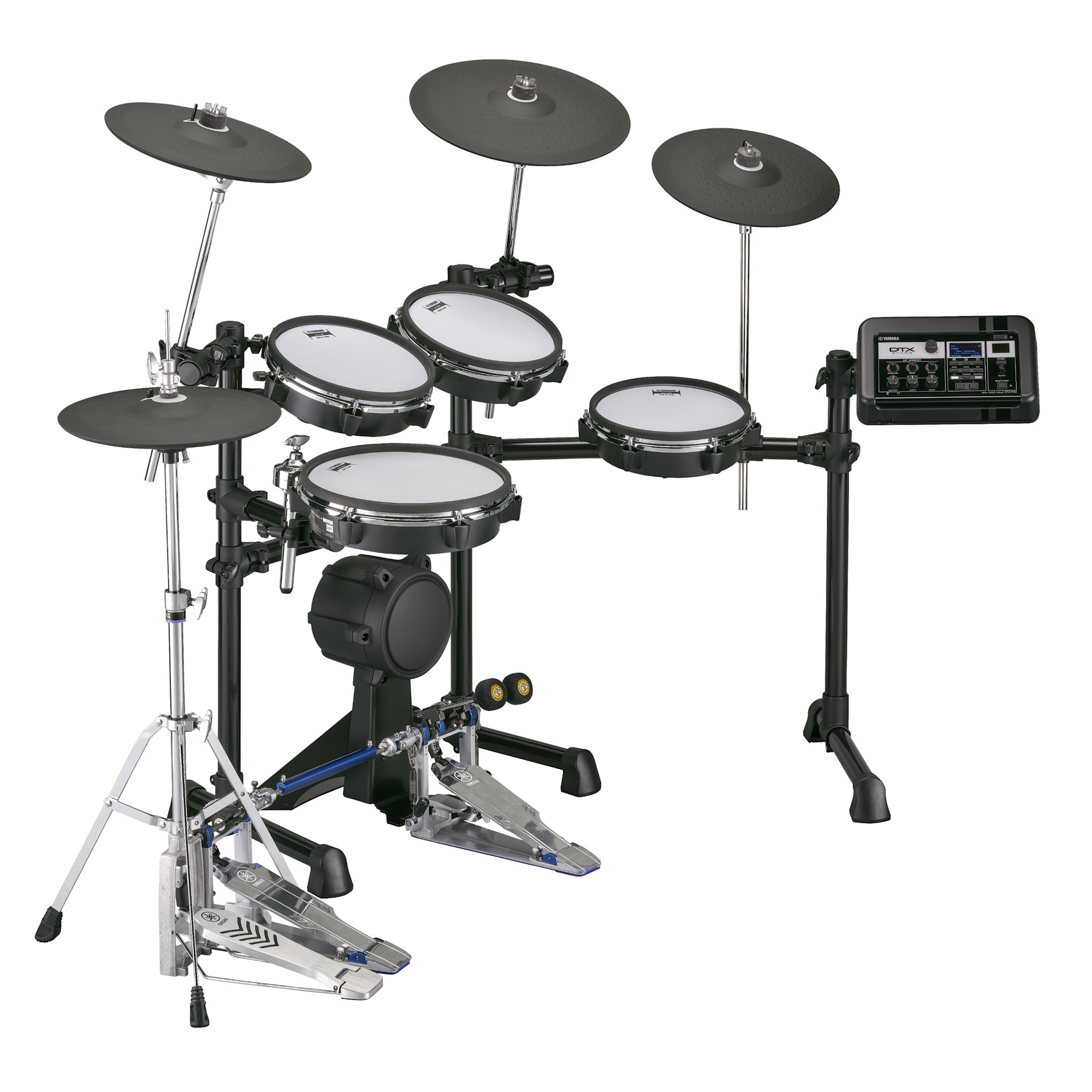

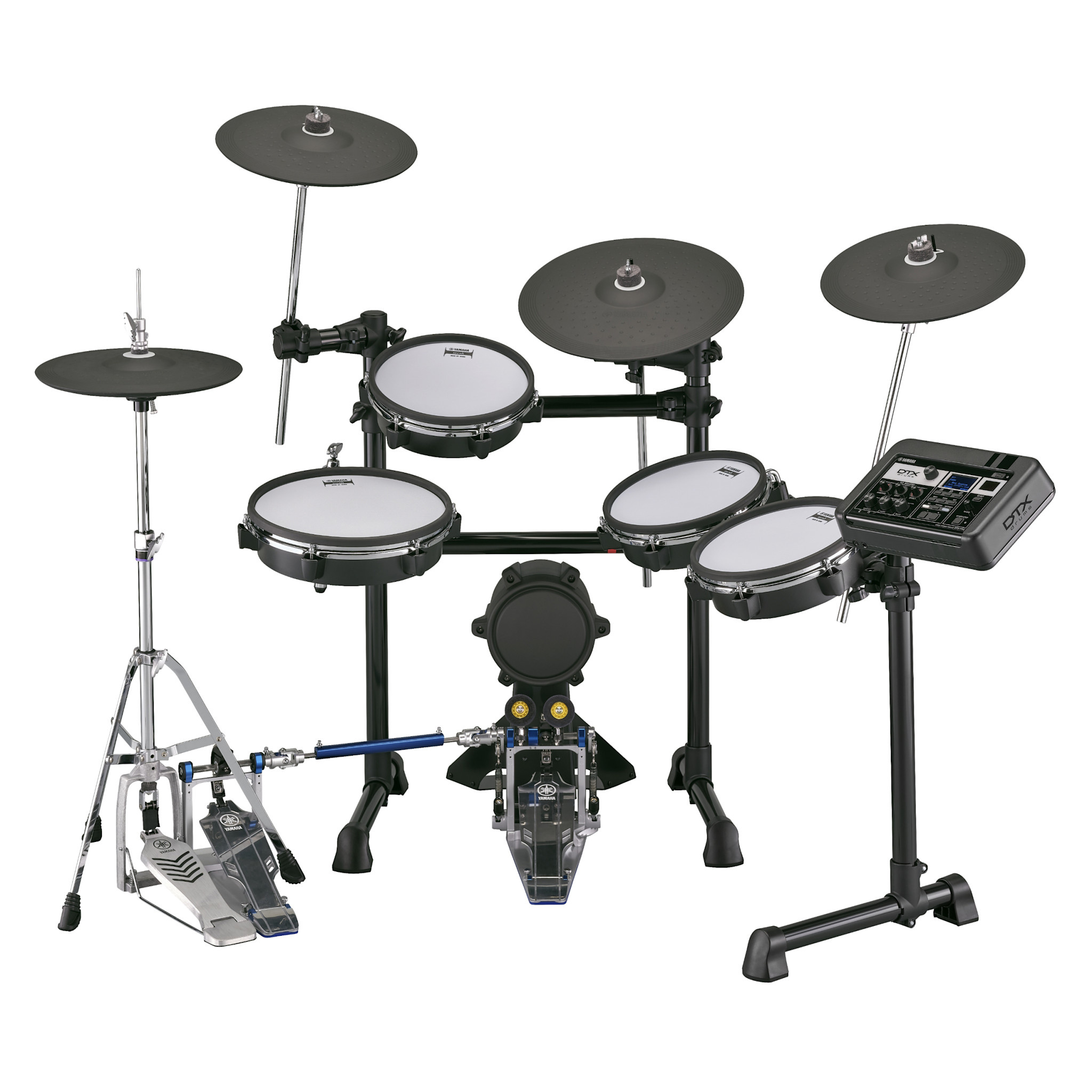

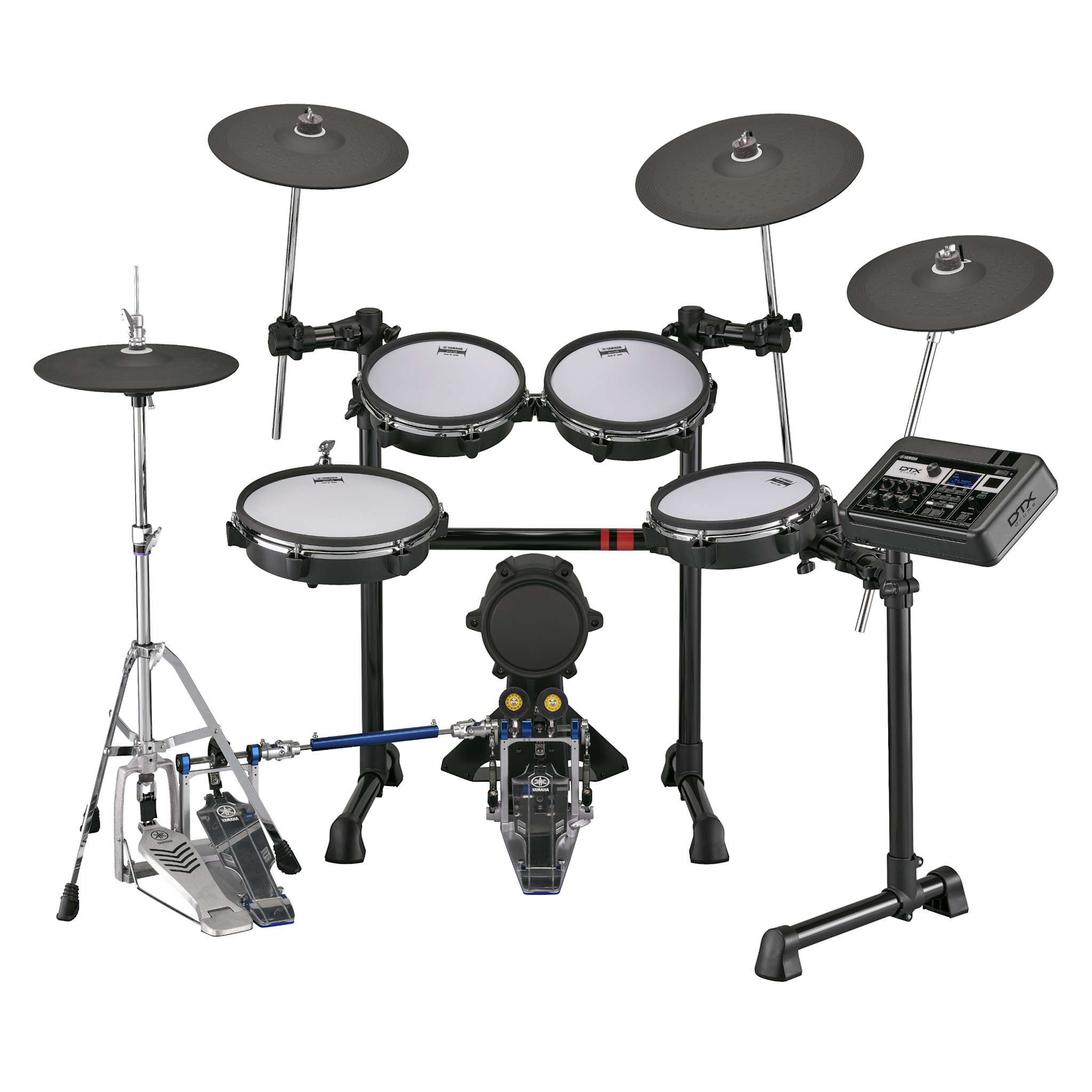

Yamaha DTX6K5-M Electronic Drum Set

Product Description

** Bass Drum Pedal Not Included **

“A powerful, engaging drumming experience with compact convenience”

The DTX6 series features the DTX-PRO module, which has same sound engine of flagship sound module DTX-PROX, with it's innovative KIT MODIFIERs, to spark creativity and deliver superb performance in a compact configuration. The original Yamaha TCS (Textured Cellular Silicone) head surface used in the flagship models, combine with fantastic real drum sounds and natural ambience captured in world-renowned studios, provide an authentic playing experience. The DTX6 Series is recommended for all drummers who want to have fun, play like a pro, need a compact kit, and want to easily transfer their skills to acoustic drums.

Real sounds that drive the drummer

No compromise has been made in recording the sound of the instruments themselves. The DTX PRO sounds have been fine-tuned to naturally follow the drummer’s performance and allow for maximum expression.

The acoustic drum sounds built into the DTX-PRO are all real sounds recorded in best recording studios in the world. As well as recording the direct drum sounds though, the unique natural room ambience of the studios where they were recorded, was also sampled.

Performances by leading Yamaha drums artists were recorded and mixed by a team of recording engineer to give the final instrument samples. The project sound director, an electronic musical instrument development professional, specified exacting recording techniques to capture the full detailed sound of each drum and cymbal, from the initial attack, until the very end of the natural sound.

The DTX pads, the drummer’s interface with their instrument, have been carefully matched to the DTX-PRO Module to offer excellent expressive capabilities.

Intuitive functionality that stirs creativity

Kit Modifier condenses the sound creation know-how that Yamaha has accumulated over decades into three knobs: AMBIENCE, COMPRESSION, and EFFECT. A wide range of tonal possibilities are available, from the natural sound of acoustic drums through to live performance sounds carefully crafted by engineers.

• The AMBIENCE knob controls the reverberation of the drum sound; for an acoustic drum kit, up to 50% of the memory features the real ambience components of the recording studio, while 51-100% is high-quality digital reverb.
• The COMP and EFFECT knobs utilize the "1 knob" control technology featured in Yamaha PA products.
• COMP controls the compression effect and brings them to the front, while EFFECT controls effects that have been optimized for preset kits.

A playing experience in a class of its own

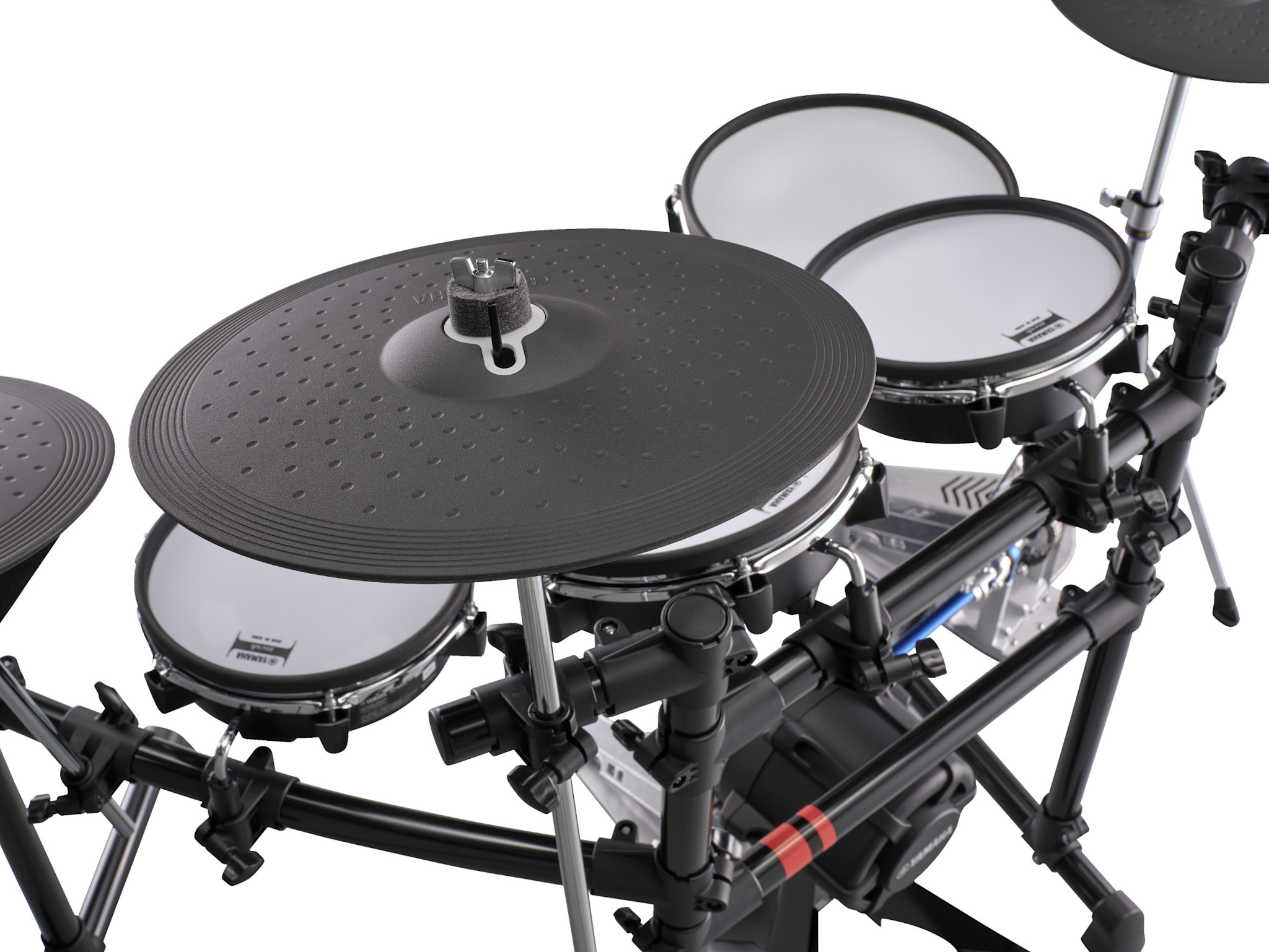

The DTX6 series is equipped with TCS (Textured Cellular Silicone) pads, providing unparalleled levels of realism, feel and quietness.

Yamaha's original TCS head surface uses a foamed silicone material that contains thousands of air bubbles. With the perfect level of firmness and rebound that allows players to hit hard, TCS offers a realistic, natural feel that inspires you to want to keep playing, and because the surface never loosens, every strike feels perfect.

In addition, a unique floating structure, without any direct contact with the head and body parts, prevents vibration from being transmitted elsewhere, while also improving pad sensitivity. The air bubbles in the TCS head also serve as a cushion to soften the stick sound.

Features

• Faithfully reproduces real drum kit sounds and ambience recorded in world renowned studios
• AMBIENCE, COMP, and EFFECT Kit Modifier knobs that allow you to create your own unique sounds

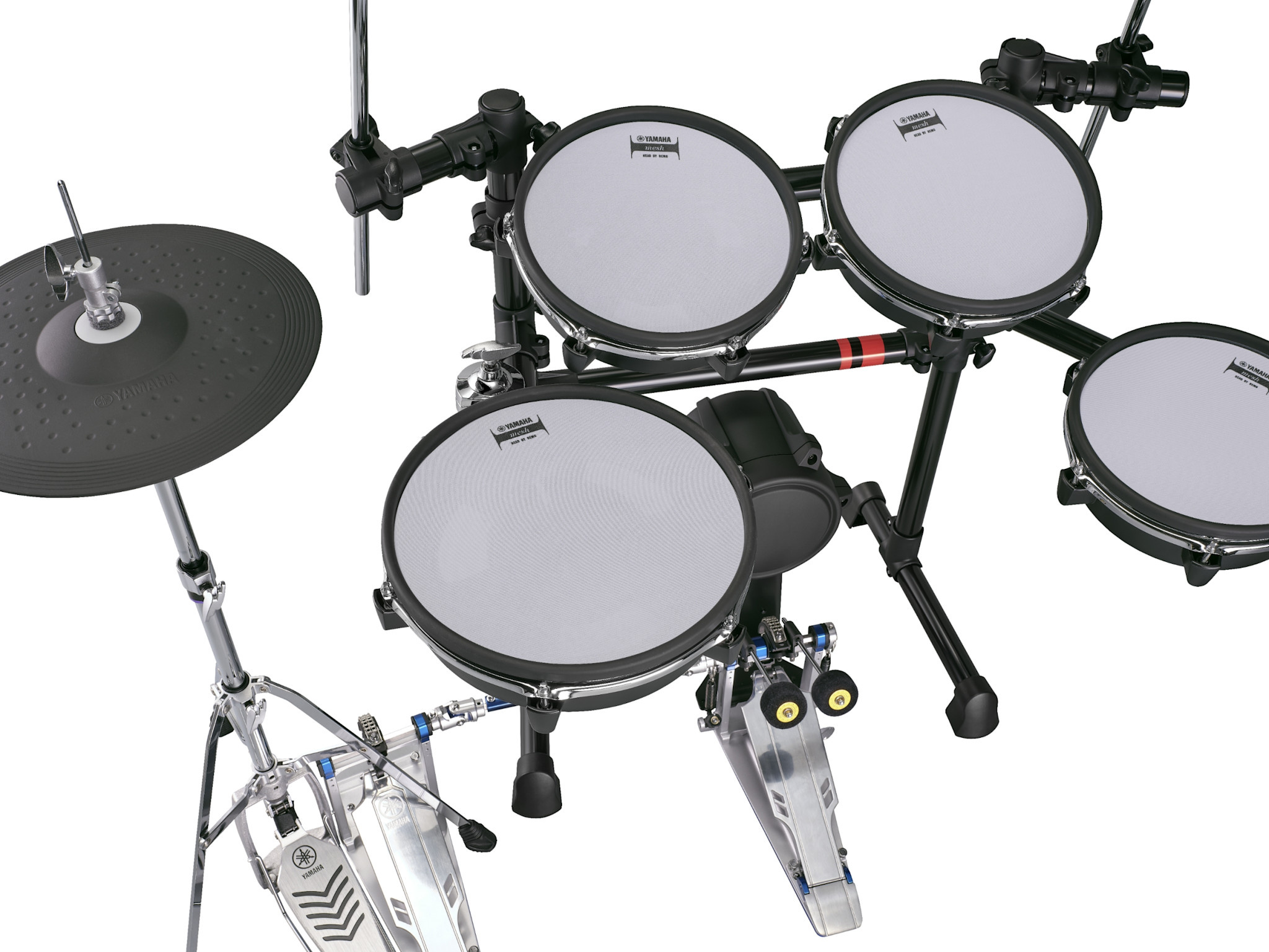

• Remo two-ply mesh heads with outstanding noise reduction, durability, and feel when hit, as well as great rebound, making them superbly comfortable to play are used on all pads
• 3-zone pads for the crash, and ride. The cymbals can be choked and muted. The ride cymbal is equipped with a hit point detection function (positional sensing)
• Yamaha system hardware is used for the included hi-hat stand and snare arm

Specifications

• Snare: XP120L-M (12 inch Mesh pad with 2 zone)
• Tom Pad: XP100L-M (10 inch Mesh pad with 2 zone)
• Floor Tom Pad: XP100L-M (10 inch Mesh pad with 2 zone)
• Kick Pad: KP90 (7.5 inch rubber pad with Multi layer cushion)
• Hi-hat Pad: RHH135 (13 inch pad with 2 zone)
• Crash cymbal 1: PCY135 (13 inch pad with 3 zone)
• Crash cymbal 2: PCY135 (13 inch pad with 3 zone)
• Ride cymbal: PCY155 (13 inch pad with 3 zone)
• Hi-hat Stand: HS650A
• Rack System: RS6
• Footprint (average): 1,100 mm x 1,400 mm
• Weight: 32.2 kg

Connectors

• DC IN: DC IN (+12V)
• Headphones: Headphones (standard stereo phone jack x 1)
• AUX IN: AUX IN (stereo mini jack x 1)
• Output: OUTPUT L/MONO, R (standard phone jack, one for each)
• USB: USB TO DEVICE, USB TO HOST
• MIDI: MIDI OUT
• Trigger Input: Trigger inputs 1, 14: (Standard stereo phone, L: Trigger, R: Rim switch / Trigger), 2/3, 4/5, 6/7, 12/13: (Standard stereo phone, L: Trigger, R: Trigger), 8, 9, 10, 11: (Standard stereo phone, L: Trigger, R: Rim switch) *Maximum 14 of pads to be connected (when Y-cable is used)
